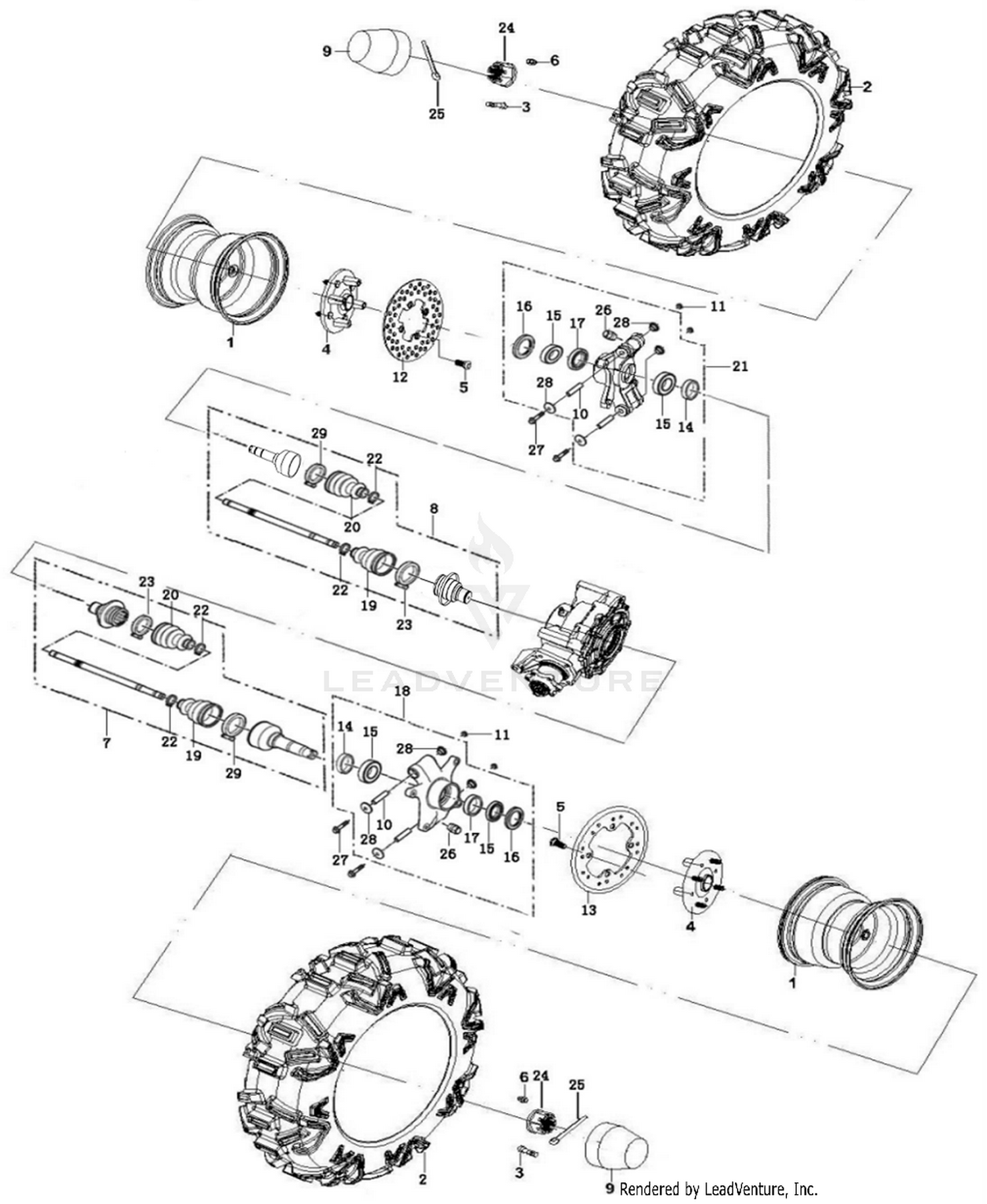

| Ref | Part Number | Description |
|---|
| 1 |
503-03762 |
RIM-REAR (14x)8 Price: $167.80 |
| 2 |
503-03887 |
TIRE (REAR CARLISLE) Price: $423.83 |
| 3 |
503-00417 |
VALVE-CYCLE Price: $8.12 |
| 4 |
503-00442 |
REAR HUB Price: $111.55 |
| 5 |
503-00438 |
BOLT M8X15-15X5 Price: $5.36 |
| 6 |
503-00418 |
TAPER NUT M10X1.25 Price: $8.12 |
| 7 |
503-03764 |
CV SHAFT-REAR (LH) Price: $264.58 |
| 8 |
503-03765 |
CV SHAFT-REAR (RH) Price: $246.12 |
| 9 |
503-03763 |
HUB DUST COVER Price: $7.34 |
| 10 |
503-02777 |
STEERING KNUCKLE TUBE (REAR) Price: $5.01 |
| 11 |
503-01375 |
LOCK NUT M10X1.25 Price: $6.13 |
| 12 |
503-01628 |
DISC BRAKE - REAR RIGHT Price: $109.24 |
| 13 |
503-01629 |
DISC BRAKE - REAR LEFT Price: $112.37 |
| 14 |
503-00456 |
REAR KNUCKLE INSIDE OIL SEAL Price: $19.73 |
| 15 |
503-01630 |
BEARING 6206RS Price: $31.24 |
| 16 |
503-00459 |
REAR KNUCKLE OUTSIDE OIL SEAL Price: $25.43 |
| 17 |
503-01631 |
REAR STEERING KNUCKLE TUBE Price: $17.13 |
| 18 |
503-02778A |
STEERING KNUCKLE (REAR LH) Price: $242.31 |
| 19 |
503-00462 |
RUBBER BOOT Price: $31.40 |
| 20 |
503-00461 |
AXLE RUBBER BOOT Price: $47.04 |
| 21 |
503-02779A |
STEERING KNUCKLE (REAR RH) Price: $260.47 |
| 22 |
503-01632 |
CLAMP - LARGE Price: $5.11 |
| 23 |
503-03909 |
CLAMP Price: $8.53 |
| 24 |
503-01615 |
SLOTTED NUT M24X1.5 Price: $5.64 |
| 25 |
503-01621 |
COTTER PIN 3.2X50 Not Available Price: |
| 26 |
503-00460 |
KNUCKLE OIL FITTING Price: $7.17 |
| 27 |
503-01634 |
HEX HEAD FLANGE BOLT M12X1.25-110 Price: $6.63 |
| 28 |
503-00452A |
DUST CAP Price: $11.61 |
