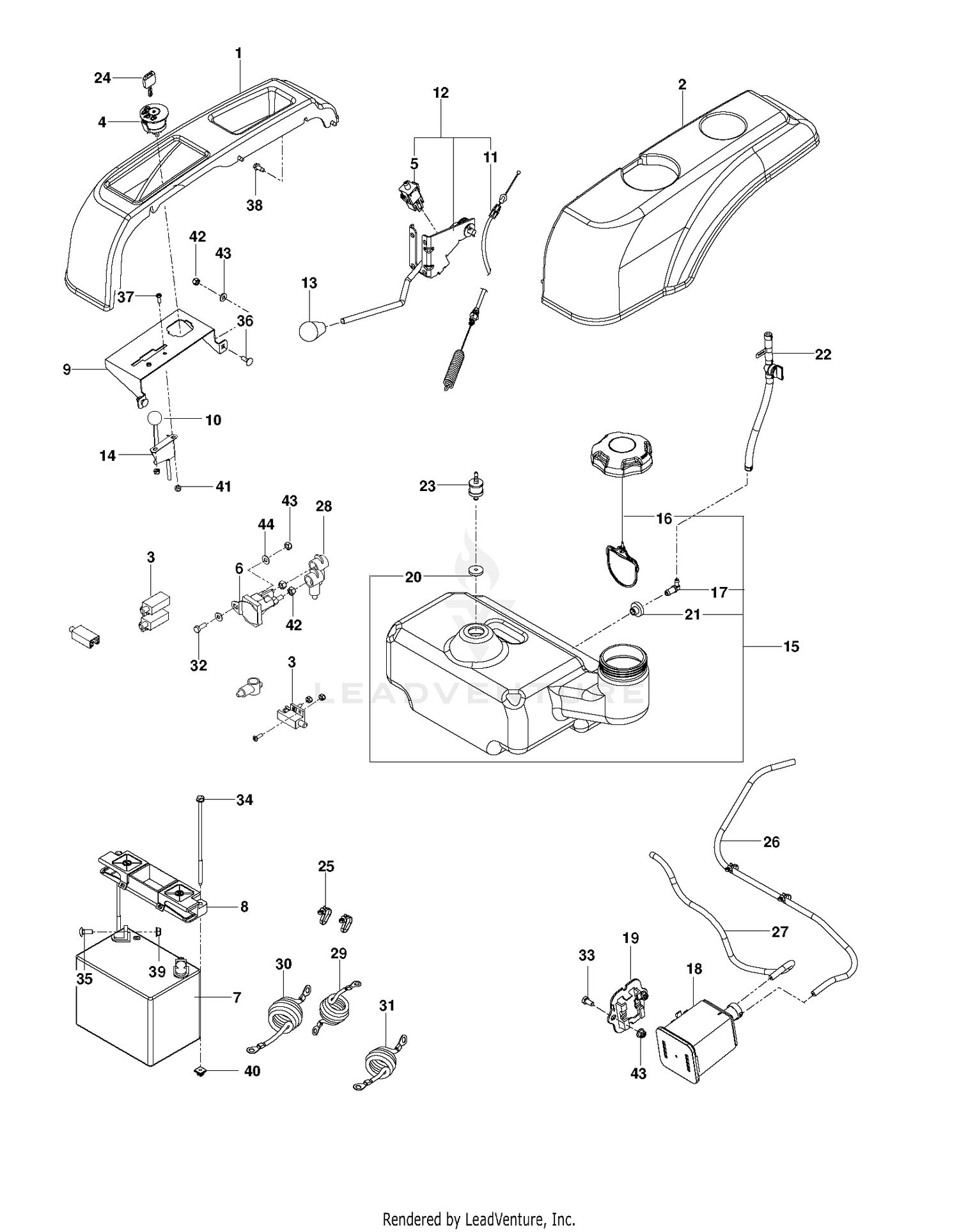

| Ref | Part Number | Description |
|---|
| 1 |
525594701 |
FENDER, RZ 30/38 RT Price: $22.99 |
| 2 |
525594702 |
FENDER, RZ 30/38 LT Price: $32.99 |
| 3 |
539101080 |
SWITCH, INTERLOCK This part replaces 532109553. Price: $14.99 |
| 4 |
532175566 |
IGNITION SWITCH This part replaces 539107541. Price: $22.99 |
| 5 |
532176138 |
SWITCH INTERLOOK PUSH-IN Price: $19.99 |
| 6 |
582042802 |
Solenoids This part replaces 532192507. Price: $22.99 |
| 7 |
579411601 |
BATTERY, 12 V 300 AMP DRY This part replaces 539102436. Price: $129.99 |
| 8 |
539107628 |
BATTERY HOLD DOWN Price: $4.99 |
| 9 |
525598601 |
MOUNT, CONTROLS, BLK Price: $44.99 |
| 10 |
539133049 |
KNOB.ROUND.BALL.BLACK Price: $5.99 |
| 11 |
585053801 |
CABLE-CLUTCH ENGAGE Price: $37.99 |
| 12 |
585057901 |
CLUTCH.ENGAGE.ASSEM.W/CABLE Price: $54.99 |
| 13 |
539132624 |
KNOB - SHIFT Price: $6.99 |
| 14 |
585974901 |
CABLE.THROTTLE.20" Price: $27.99 |
| 15 |
576646403 |
FUEL TANK ASM SMALL Price: $169.99 |
| 17 |
532139277 |
STEM FUEL TANK This part replaces 539110432. Price: $6.99 |
| 18 |
532414114 |
CANNISTER, CARBON Price: $54.99 |
| 19 |
575242701 |
BRACKET, CANISTER Price: $8.99 |
| 20 |
584648201 |
GROMMET.CHECK.FUEL This part replaces 576618201. Price: $3.99 |
| 21 |
539105245 |
RUBBER GROMMET Price: $3.99 |
| 22 |
586123907 |
NEEDS DESCRIPTION Price: Call Us |
| 23 |
576618101 |
VALVE.FUEL.CHECK Price: $14.99 |
| 24 |
532140401 |
KEY MLD GEN DELTA Price: $5.99 |
| 25 |
505280001 |
TIE WRAP, 8-3/8", W/CLIP Price: $2.99 |
| 27 |
587044564 |
HOSE.3/16".VAPOR.LINE.64"LGTH Price: $11.99 |
| 28 |
532154336 |
COVER.TERMINAL.RED This part replaces 532131563. Price: $4.99 |
| 29 |
539110068 |
BATTERY CABLE, NEGATIVE Price: $7.99 |
| 30 |
539104974 |
POST.CABLE LONG Price: $27.99 |
| 31 |
586108201 |
CABLE BATTERY POS RZ This part replaces 539103306. Price: $8.99 |
| 32 |
596230901 |
Screws This part replaces 874780412. Price: $2.99 |
| 33 |
596031601 |
Screws This part replaces 539108392. Price: $2.99 |
| 34 |
532150177 |
BATTERY TIEDOWN KIT This part replaces 532145211. Price: $8.99 |
| 35 |
595901601 |
GSPW Bolts This part replaces 872140506. Price: $2.99 |
| 36 |
582735501 |
BOLT.CARRIAGE.1/4-20X3/4 This part replaces 872110406. Price: $6.99 |
| 37 |
539990362 |
SCREW 1/4 X 5/8 Price: $3.99 |
| 38 |
596039001 |
Screws This part replaces 539976952. Price: $2.99 |
| 39 |
594944401 |
NUT HEXAGON FLANGE 5/16-18 ST This part replaces 539112899. Price: $5.99 |
| 40 |
539107629 |
PUSH NUT-NYLON Price: $2.99 |
| 41 |
596040801 |
Hardware This part replaces 539976977. Price: $2.99 |
| 42 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 873800400. Price: $1.99 |
| 43 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 539108120. Price: $1.99 |
| 44 |
596582301 |
Washers This part replaces 819091016. Price: $2.99 |
