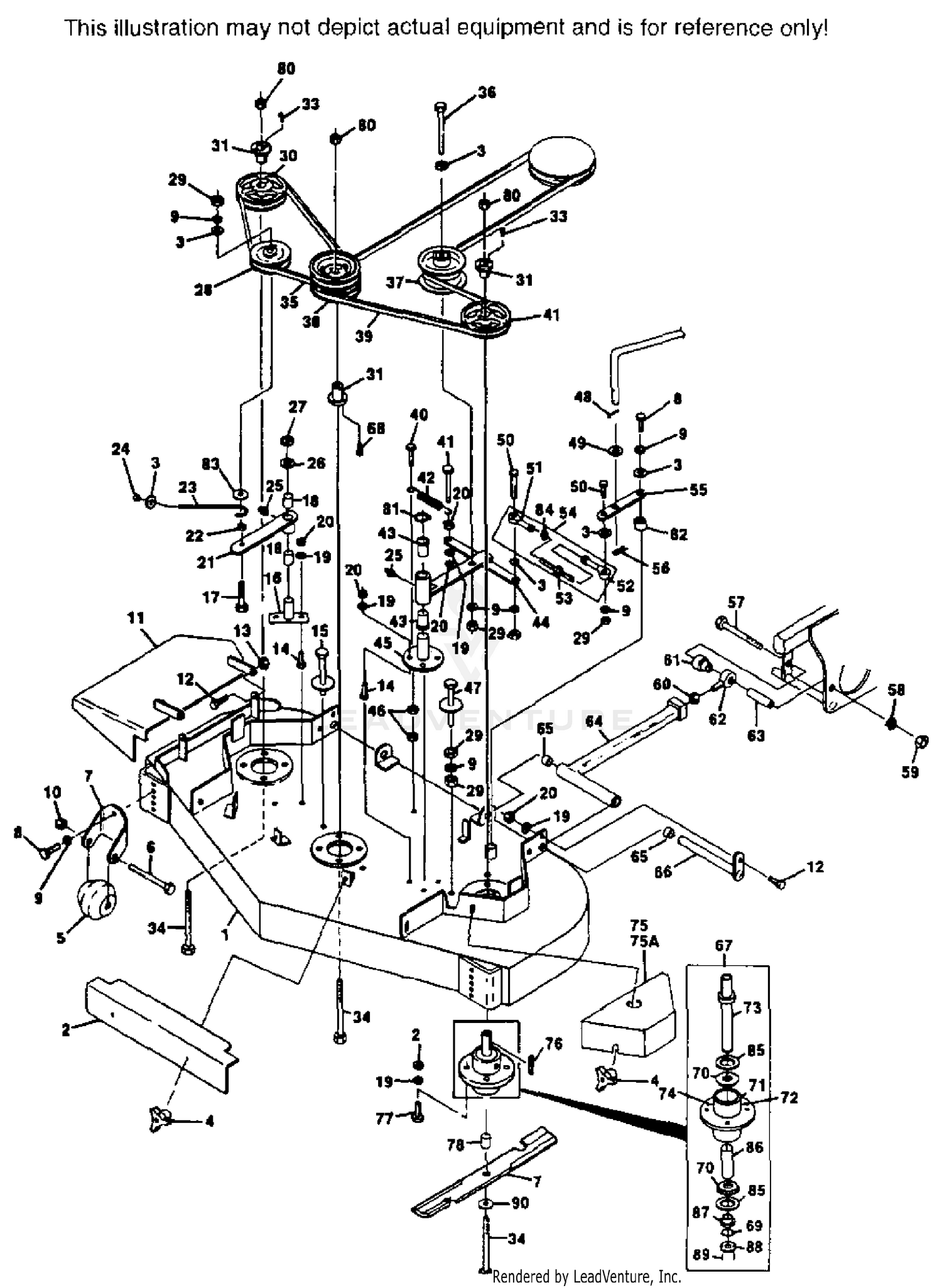

| Ref | Part Number | Description |
|---|
| 1 |
46465 |
CUTTER DECK(INCLUDES DECALS) Price: Call Us |
| 2 |
42931 |
BELT COVER - FRONT Price: Call Us |
| 4 |
04029-03 |
WING NUT, 3/8-16 Price: Call Us |
| 5 |
48584 |
ANTI-SCALP WHEEL Price: Call Us |
| 7 |
461086 |
Anti-Scalp Wheel Assembly This part replaces 42882. Price: Call Us |
| 11 |
461293 |
DISCH CHUTE W/TAG, SMZ-SMALL This part replaces 45440. Price: Call Us |
| 15 |
45350 |
BELT GUIDE Price: Call Us |
| 16 |
45037 |
IDLER PIVOT BASE Price: Call Us |
| 18 |
48100-05 |
BUSHING Price: Call Us |
| 21 |
46081 |
IDLER ARM(INCLUDES BUSHINGS & GREASE FTG.) Price: Call Us |
| 22 |
43077 |
SPACER Price: Call Us |
| 25 |
48114-04 |
GREASE FITTING Price: Call Us |
| 26 |
04041-08S |
FLAT WASHER, 3/4" SPECIAL Price: Call Us |
| 27 |
04050-02 |
RETAINING RING, 3/4" EXTERNAL "E" Price: Call Us |
| 28 |
48181 |
PULLEY, IDLER Price: Call Us |
| 30 |
48141 |
Hub, Tapered 1.00" bore This part replaces 48127. Price: Call Us |
| 31 |
48141 |
TAPERED HUB Price: Call Us |
| 34 |
04001-41 |
HEX HEAD BOLT, 5/8-11 X 9-1/2" Price: Call Us |
| 35 |
48265 |
BELT, RH BLADE DRIVE Price: Call Us |
| 37 |
483210 |
Pulley, 5" Idler This part replaces 48550. Price: Call Us |
| 38 |
48940 |
Pulley, Double Groove, 6.35/5.75 O.D. This part replaces 48128. Price: Call Us |
| 39 |
48752 |
BELT, BLADE DRIVE Price: Call Us |
| 41 |
482745 |
Pulley, 6.35 O.D. This part replaces 48753. Price: Call Us |
| 42 |
48494-02 |
SPRING, IDLER TENSION Price: Call Us |
| 43 |
48100-02 |
BUSHING Price: Call Us |
| 44 |
46387 |
IDLER ARM(INCLUDES BUSHINGS & GREASE Price: Call Us |
| 45 |
45329 |
IDLER PIVOT BASE Price: Call Us |
| 47 |
45351 |
BELT GUIDE Price: Call Us |
| 51 |
48464 |
BALL JOINT - RH Price: Call Us |
| 52 |
48544 |
BALL JOINT - LH Price: Call Us |
| 53 |
48590 |
LINK, TURNBUCKLE Price: Call Us |
| 54 |
46388 |
TURNBUCKLE ASSEMBLY Price: Call Us |
| 55 |
421107 |
DECLUTCH LINK, CUTTER ENGAGEMENT Price: Call Us |
| 56 |
04062-01 |
HAIR PIN, 1/8" DIA. Price: Call Us |
| 61 |
43244 |
BUSHING Price: Call Us |
| 62 |
48763 |
ROD END Price: Call Us |
| 63 |
43243 |
SPACER Price: Call Us |
| 64 |
461516 |
Push Arm This part replaces 46460. Price: Call Us |
| 65 |
48100-06 |
BUSHING Price: Call Us |
| 66 |
451240 |
Push Arm Shaft This part replaces 45332. Price: Call Us |
| 67 |
48926 |
Hub, Tapered 1.125" bore This part replaces 46400. Price: Call Us |
| 69 |
04050-04 |
RETAINING RING, 1" EXT INVERTED Price: Call Us |
| 70 |
48668 |
Bearing Set Price: Call Us |
| 71 |
461663 |
Spindle Assembly This part replaces 41008. Price: Call Us |
| 72 |
48114-02 |
GREASE FITTING Price: Call Us |
| 73 |
43275 |
SHAFT, CUTTER SPINDLE This part replaces 45391. Price: Call Us |
| 74 |
48677 |
RELIEF FITTING, TAPERED SPINDLE Price: Call Us |
| 75 |
421139 |
BELT COVER - RH Price: Call Us |
| 75A |
421138 |
BELT COVER - LH Price: Call Us |
| 76 |
04063-08 |
KEY, 1/4 X 1/4 X 2" Price: Call Us |
| 78 |
43591 |
SPACER, SPINDLE BOTTOM This part replaces 43235. Price: Call Us |
| 79 |
481708 |
Cutter Blade 21" This part replaces 48111. Price: Call Us |
| 81 |
04050-05 |
RETAINING RING 1-1/8" EXT. E Price: Call Us |
| 82 |
43042 |
SLEEVE, CAM CLUTCH Price: Call Us |
| 85 |
481024 |
Seal, Top This part replaces 48681. Price: Call Us |
| 86 |
43218 |
SPACER, TAPERED SPINDLE Price: Call Us |
| 87 |
43217 |
BUSHING, TAPERED SPINDLE Price: Call Us |
