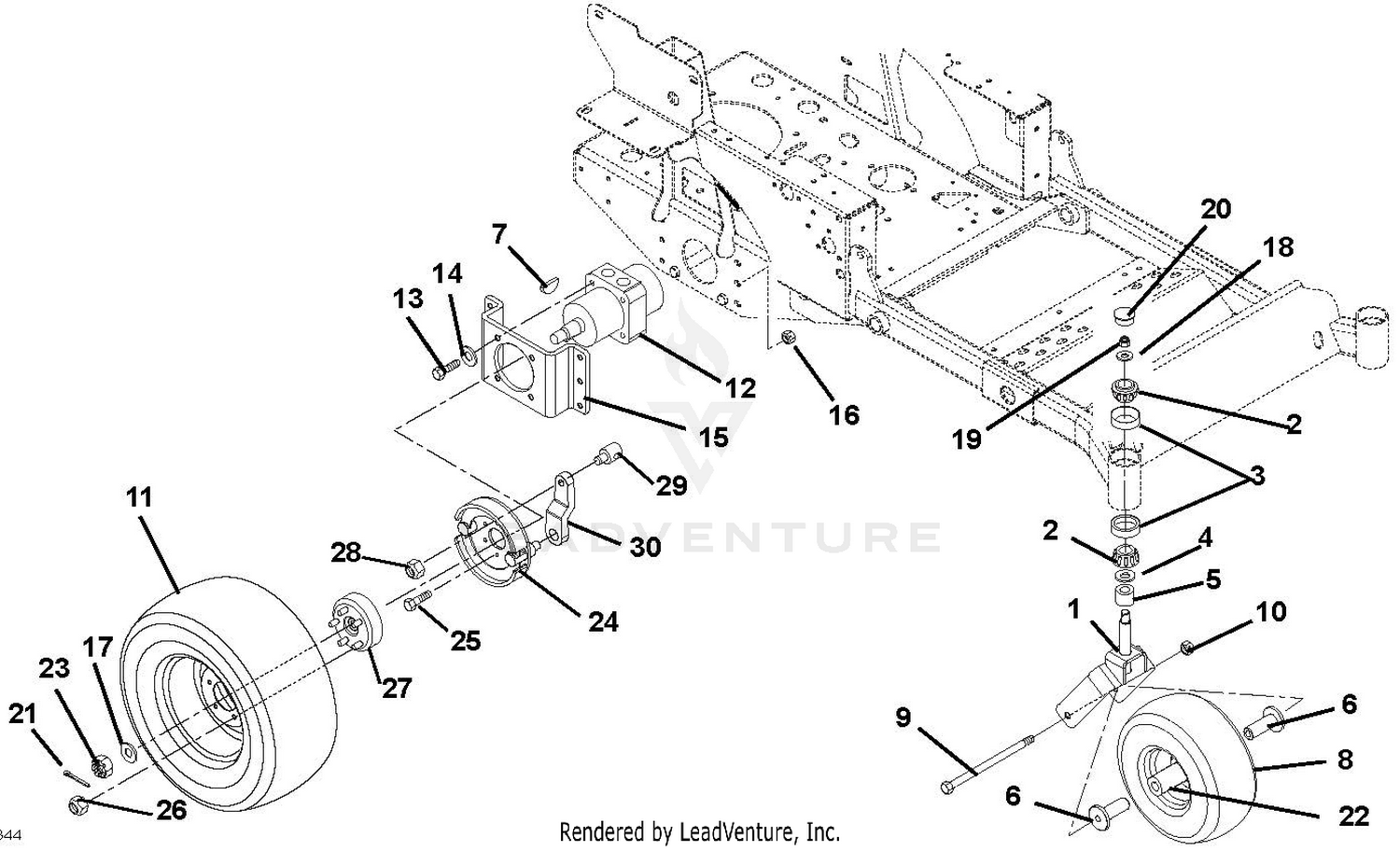

| Ref | Part Number | Description |
|---|
| 1 |
00490200 |
WMT, FRONT FORK Price: Call Us |
| 2 |
05406900 |
BRG-CONE 1.0X.58 Price: $17.95 |
| 3 |
05407000 |
BRG-CUP1.980X.420 This part replaces 038109. Price: $16.45 |
| 4 |
00531400 |
BEARING SEAL 1.5 X 2 X .18 Price: $9.45 |
| 5 |
00531500 |
SPACER 1.005X1.5075X.375 Price: $7.45 |
| 6 |
00160700 |
SPACER, WHEEL Price: $20.95 |
| 8 |
07101111 |
ASM, WHL/TIRE 13X5.00-6 - CHARCOAL GRAY - K404 TREAD This part replaces 07160100. Price: $115.45 |
| 9 |
05902023 |
BLT, HEX .50-13X7.50 G5 ZCC This part replaces 05978200. Price: $7.45 |
| 10 |
06500810 |
NUT,NYL-FLG .50-13 GF ZCC This part replaces 06500010. Price: $1.45 |
| 11 |
07100214 |
TIRE/WHEEL ASSY, 20X10.00-10 This part replaces 07100025. Price: $186.95 |
| 11 |
07100215 |
TIRE, 20X10.00-10 This part replaces 07100023. Price: $120.95 |
| 12 |
05015500 |
MOTOR, HYD WHEEL This part replaces 04915500. Price: $741.95 |
| 13 |
05901711 |
BLT-HEX .38-16X1.00 G5 ZCC This part replaces 05948700. Price: $1.45 |
| 14 |
06300116 |
WSHR-LK-REG .375X.094 ZCC This part replaces 06308800. Price: $0.95 |
| 15 |
09296600 |
BRKT, WHEEL MOTOR Price: $55.95 |
| 16 |
06500726 |
NUT,NYL-FLG .38-16 GF ZCC This part replaces 06545500. Price: $1.45 |
| 17 |
06401016 |
WSHR, FLT .755X1.375X.062 ZCC This part replaces 06441500. Price: $3.45 |
| 18 |
06401140 |
WSHR-FL-STL 0.812X1.469X0.134 ZCC This part replaces 06439000. Price: $1.45 |
| 19 |
06536900 |
NUT-JAM CTRLK .75-16 YWZC Price: $5.45 |
| 20 |
00456800 |
CAP, DUST Price: $16.45 |
| 23 |
06528300 |
NUT-HEX-SL .75-20 Price: $12.95 |
| 24 |
00383500 |
BRAKE, MECHANISM W/ PADS Price: $199.95 |
| 25 |
06100005 |
SCR-SKH M6X16 SHCS GR5 EP30 Price: $2.95 |
| 26 |
06500926 |
NUT- WHEEL .50-20 ZCC This part replaces 06517600. Price: $1.45 |
| 27 |
00377400 |
HUB, 5-BOLT BRAKE DRUM Price: $129.95 |
| 28 |
06500913 |
NUT-LK-CTR-JAM .312-18 GB ZCC This part replaces 06500011. Price: $0.95 |
| 29 |
09267300 |
PIN, PIVOT/TRUNNION Price: $6.45 |
