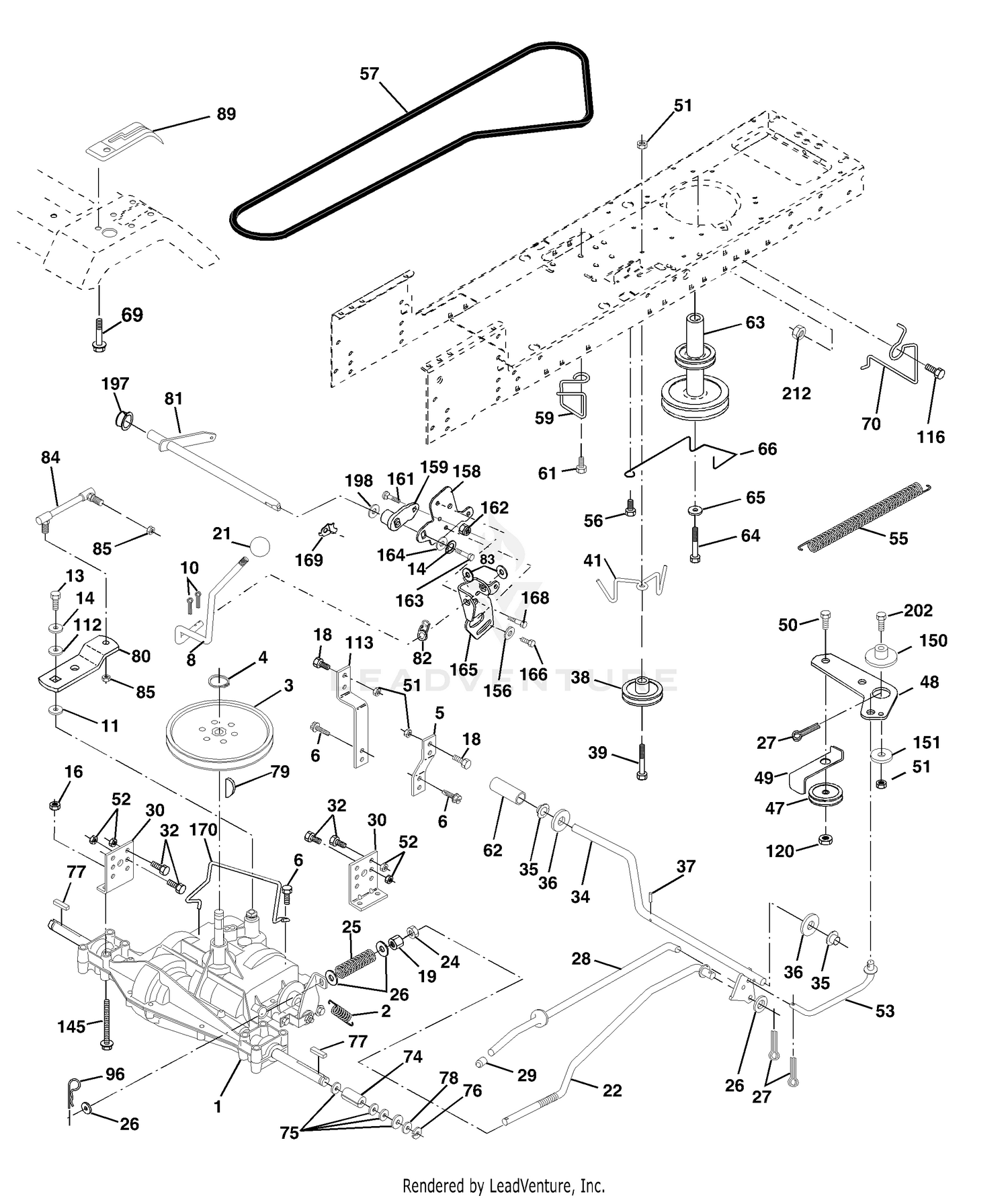

| Ref | Part Number | Description |
|---|
| 2 |
146682 |
Spring Return Brake T/a Zinc Price: Call Us |
| 2 |
340-77 |
FITTING-ELBOW, 90 DEG Price: $24.95 |
| 3 |
123666X |
Pulley Transaxle 18" tires Price: Call Us |
| 4 |
12000028 |
Ring Retainer # 5100-62 Price: Call Us |
| 4 |
98-7413 |
HOSE ASM Price: $110.10 |
| 5 |
121520X |
Strap Torque 30 Degrees Price: Call Us |
| 5 |
58-4750 |
TUBE-STEEL Price: $198.58 |
| 6 |
17060512 |
Screw 5/16-18 X 3/4 Price: Call Us |
| 6 |
93-1404 |
TUBE-STEEL Price: $147.37 |
| 8 |
165619 |
Rod Shift Fender Adjust Lt Price: Call Us |
| 9 |
58-4780 |
TUBE-STEEL Price: $106.87 |
| 10 |
76020416 |
Pin Cotter 1/8 X 1 Cad Price: Call Us |
| 11 |
105701X |
Washer Plate Shf 388 Sq Hole Price: Call Us |
| 11 |
58-5710 |
HOSE ASM Price: $118.59 |
| 13 |
68-6370 |
HYD TUBE KIT Price: $324.47 |
| 13 |
74550412 |
Bolt 1/4-28 Unf Gr 8 W/Patch Price: Call Us |
| 14 |
10040400 |
Washer Lock Hvy Helical Price: Call Us |
| 15 |
58-3880 |
CLAMP-DOUBLE Price: $7.34 |
| 16 |
33113-050 |
SCREW-HH Price: $0.62 |
| 16 |
73800500 |
Nut Lock Hex w/ins 5/16-18 Price: Call Us |
| 17 |
43-5930 |
WASHER-LOCK, SPRING Price: $0.75 |
| 18 |
33093-00 |
WASHER-FLAT Price: $0.70 |
| 18 |
74780616 |
Bolt, Fin Hex 3/8-16 UNC x 1 Gr. 5 Price: Call Us |
| 19 |
73800600 |
Nut Lock 3/8-16 Unc Price: Call Us |
| 19 |
98-7408 |
HOSE ASM Price: $114.75 |
| 20 |
58-4850 |
TUBE-STEEL Price: $194.71 |
| 21 |
140845 |
Knob Price: Call Us |
| 21 |
68-6270 |
HYD TUBE KIT Price: $403.92 |
| 22 |
130804 |
Rod Brake Blk Zinc 26 840 Price: Call Us |
| 22 |
60-2180 |
ADAPTOR Price: $132.52 |
| 23 |
98-7406 |
HOSE ASM Price: $119.86 |
| 24 |
340-68 |
FITTING-TEE, BULKHEAD Price: $36.00 |
| 24 |
73350600 |
Nut Hex Jam 3/8-16 Unc Price: Call Us |
| 25 |
106888X |
Spring Rod Brake 2 00 Zinc Price: Call Us |
| 25 |
98-7411 |
HYD HOSE ASM Price: $96.07 |
| 26 |
19131316 |
Washer 13/32 X 13/16 X 16 Ga Price: Call Us |
| 26 |
340-71 |
FITTING-STRAIGHT, BULKHEAD Price: $20.74 |
| 27 |
76020412 |
Pin Cotter 1/8 X 3/4 Cad Price: Call Us |
| 27 |
98-7410 |
HOSE ASM Price: $111.58 |
| 28 |
175765 |
Rod Brake Parking LT/YT Price: Call Us |
| 28 |
340-87 |
FITTING-ELBOW, 45 DEG Price: $18.39 |
| 29 |
71673 |
Cap Brake Parking Price: Call Us |
| 29 |
98-7409 |
HOSE ASM Price: $107.43 |
| 30 |
169592 |
Bracket Mtg Transaxle Price: Call Us |
| 30 |
98-7407 |
HOSE ASM Price: $115.22 |
| 31 |
58-4760 |
TUBE-STEEL Price: $131.21 |
| 32 |
58-4880 |
TUBE-STEEL Price: $236.51 |
| 32 |
74760512 |
Bolt Hex Hd 5/16-18unc X 3/4 Price: Call Us |
| 33 |
98-7412 |
HOSE ASM Price: $105.37 |
| 34 |
175578 |
Shaft Asm Pedal Foot Price: Call Us |
| 34 |
58-4870 |
TUBE-STEEL Price: $136.43 |
| 35 |
120183X |
Bearing Nylon Blk 629 Id Price: Call Us |
| 35 |
98-7405 |
HOSE ASM Price: $114.18 |
| 36 |
19211616 |
Washer 21/32 X 1 X 16 Ga Price: Call Us |
| 36 |
60-1360 |
CLAMP-SINGLE Price: $5.97 |
| 37 |
1572H |
Pin Roll 3/16 X 1" Price: Call Us |
| 37 |
33113-025 |
SCREW-HH Price: $1.97 |
| 38 |
179114 |
Pulley Composite Flat Price: Call Us |
| 38 |
340-70 |
NUT-LOCK Price: $2.10 |
| 39 |
74760648 |
Bolt Fin Hex 3/8-16 unc X 3 Price: Call Us |
| 41 |
175556 |
Keeper Belt Flat Idler Price: Call Us |
| 47 |
127783 |
Pulley Idler V Groove Plastic Price: Call Us |
| 48 |
154407 |
Bellcrank Asm Price: Call Us |
| 49 |
123205X |
Retainer Belt Style Spring Price: Call Us |
| 50 |
74760624 |
Bolt Hex Hd 3/8-16unc X 1-1/2 Price: Call Us |
| 51 |
73680600 |
Nut Crownlock 3/8-16 Unc Price: Call Us |
| 52 |
73680500 |
Nut Crownlock 5/16-18 Unc Price: Call Us |
| 53 |
105710X |
Link Clutch Price: Call Us |
| 55 |
105709X |
Spring Return Clutch 6 75 Price: Call Us |
| 56 |
17060620 |
Screw 3/8-16 x 1-1/4 Price: Call Us |
| 57 |
130801 |
V-Belt Ground Drive 95 25 Price: Call Us |
| 59 |
169691 |
Keeper Belt Span Ctr Price: Call Us |
| 61 |
17120614 |
Screw 3/8-16 x .875 Price: Call Us |
| 62 |
8883R |
Cover Pedal Blk Round Price: Call Us |
| 63 |
175410 |
Engine Pulley Price: Call Us |
| 64 |
71170764 |
Bolt Hex Price: Call Us |
| 65 |
10040700 |
Washer Lock Hvy Hlcl Spr 7/16 Price: Call Us |
| 66 |
154778 |
Keeper Belt Engine Foolproof Price: Call Us |
| 69 |
142432 |
Screw Hex wsh Hi Lo 1/4 x 1/2 unc Price: Call Us |
| 70 |
134683 |
Guide Belt Mower Drive RH Price: Call Us |
| 74 |
137057 |
Spacer Axle Price: Call Us |
| 75 |
121749X |
Washer 25/32 X 1 1/4 X 16 Ga Price: Call Us |
| 76 |
12000001 |
E-ring #5133-75 Price: Call Us |
| 77 |
123583X |
Key Square 2 0 X 1845/ 1865 Price: Call Us |
| 78 |
121748X |
Washer 25/32 X 1-5/8 X 16 Ga Price: Call Us |
| 79 |
2228M |
Key Woodruff #9 3/16 x 3/4 Price: Call Us |
| 80 |
145090 |
Arm Shift Price: Call Us |
| 81 |
165592 |
Shaft Asm Cross Tapered PMST/20 Price: Call Us |
| 82 |
123782X |
Spring Torsion T/a Price: Call Us |
| 83 |
19171216 |
Washer 17/32 X 3/4 X 16 Ga Price: Call Us |
| 84 |
166231 |
Link Transaxle PMST/20" Zinc Price: Call Us |
| 85 |
150360 |
Nut Lock Center 1/4 - 28 FNTHD Price: Call Us |
| 89 |
169372X428 |
Console Shift STLT Price: Call Us |
| 96 |
4497H |
Retainer Spring 1" Price: Call Us |
| 112 |
19091210 |
Washer 9/32 x 3/4 x 10 Ga. Price: Call Us |
| 113 |
127285X |
Strap Torque LT Price: Call Us |
| 116 |
72140608 |
Bolt Rdhd Sq Neck 3/8-16 x 1 Price: Call Us |
| 120 |
73900600 |
Nut Lock Flg. 3/8-16 Unc Price: Call Us |
| 145 |
74490540 |
Bolt Hex FLGHD 5/16-18 Gr. 5 Price: Call Us |
| 150 |
175456 |
Spacer Retainer Price: Call Us |
| 151 |
19133210 |
Washer 13/32 x 2 x 10 Price: Call Us |
| 156 |
166002 |
Washer Srrted 5/16ID x 1.125 Price: Call Us |
| 158 |
165589 |
Bracket Shift Mount Price: Call Us |
| 159 |
165494 |
Hub Tapered Flange Shift Lt Price: Call Us |
| 161 |
72140406 |
Bolt Rdhd Sqnk 1/4-20 x 3/4 Gr Price: Call Us |
| 162 |
73680400 |
Nut Crownlock 1/4-20 Unc Price: Call Us |
| 163 |
74780416 |
Bolt Hex Fin 1/4-20 Unc x 1 Gr 5 Price: Call Us |
| 164 |
19091010 |
Washer 5/8 x .281 x 10 Ga Price: Call Us |
| 165 |
165623 |
Bracket Pivot Lever Price: Call Us |
| 166 |
166880 |
Screw 5/16-18 x 5/8 Price: Call Us |
| 168 |
165492 |
Bolt Shoulder 5/16-18 x .561 Price: Call Us |
| 169 |
165580 |
Plate Fastening Price: Call Us |
| 170 |
178394 |
Keeper Belt Transaxle Gear Price: Call Us |
| 197 |
169613 |
Nyliner Snap-In Price: Call Us |
| 198 |
169593 |
Washer Nyliner Price: Call Us |
| 202 |
72110612 |
Bolt Carr Sh 3/8-16 x 1-1/2 Gr. 5 Price: Call Us |
