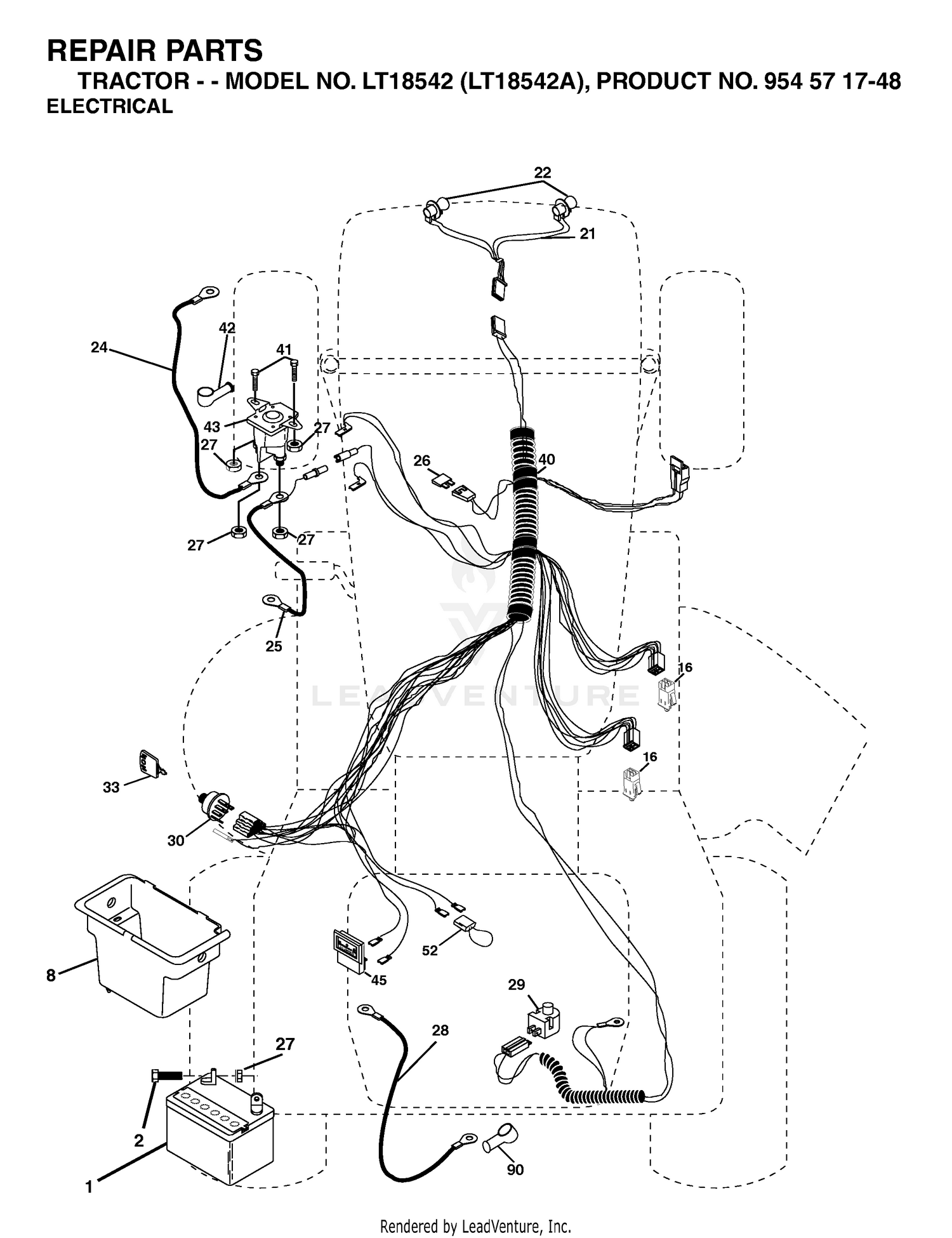

| Ref | Part Number | Description |
|---|
| 1 |
100-5797-03 |
BRACKET-HOC, RH Price: $30.11 |
| 1 |
532123899 |
BATTERY.DRY.30.AMP This part replaces 532163465. Price: $149.99 |
| 2 |
323-12 |
SCREW-HH Price: $1.14 |
| 2 |
874760412 |
BOLT.HEX.1/4.X.3/4.DICHROMATE Price: $3.99 |
| 3 |
80-6990 |
WASHER-HARDENED Price: $3.06 |
| 4 |
104-1052-03 |
BRACKET-HOC, FRONT Price: $29.29 |
| 5 |
100-5799 |
SHIM-HOC, .060 INCH Price: $5.86 |
| 6 |
3231-9 |
SCREW-CARR Price: $1.18 |
| 7 |
104-4641 |
SHIM-HOC, .030 INCH Price: $2.34 |
| 8 |
32128-43 |
NUT-FLANGE Price: $0.94 |
| 8 |
532176689 |
BOX.BATTERY.FENDER Price: $9.99 |
| 9 |
3234-24 |
SCREW-HHF Price: $3.19 |
| 10 |
121-3575 |
SPACER-HOC This part replaces 105-9226. Price: $4.10 |
| 11 |
104-4624-03 |
BRACKET-HOC, LH Price: $30.11 |
| 12 |
136-2921 |
HOC PLATE ASM This part replaces 105-9225. Price: $6.80 |
| 16 |
532176138 |
SWITCH INTERLOOK PUSH-IN Price: $19.99 |
| 21 |
532175688 |
HARNESS.W/LIGHT SOCKET Price: $29.99 |
| 22 |
532004152 |
LIGHTBULB Price: $3.99 |
| 24 |
532004799 |
BATTERY CABLE This part replaces 532124780. Price: $8.99 |
| 25 |
532146147 |
CABLE BATTERY Price: $22.99 |
| 26 |
532175158 |
FUSE 20AMP Price: $4.99 |
| 27 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 28 |
532004207 |
CABLE T This part replaces 532124773. Price: $4.99 |
| 29 |
532421062 |
SWITCH.SNAPMOUNT.NC This part replaces 532121305. Price: $12.99 |
| 30 |
532175566 |
IGNITION SWITCH Price: $22.99 |
| 33 |
532140401 |
KEY MLD GEN DELTA Price: $5.99 |
| 40 |
532179720 |
HARNESS.IGNITION Price: $99.99 |
| 41 |
596437001 |
Screws This part replaces 871110408. Price: $2.99 |
| 42 |
532154336 |
COVER.TERMINAL.RED This part replaces 532131563. Price: $4.99 |
| 43 |
532146154 |
KIT SOLENOID .95 This part replaces 532178861. Price: $19.99 |
| 52 |
532141940 |
WIRE PROTECTION LOOP Price: $4.99 |
| 90 |
532435395 |
COVER.TERMINAL.BATTERY This part replaces 532180449. Price: $4.99 |
