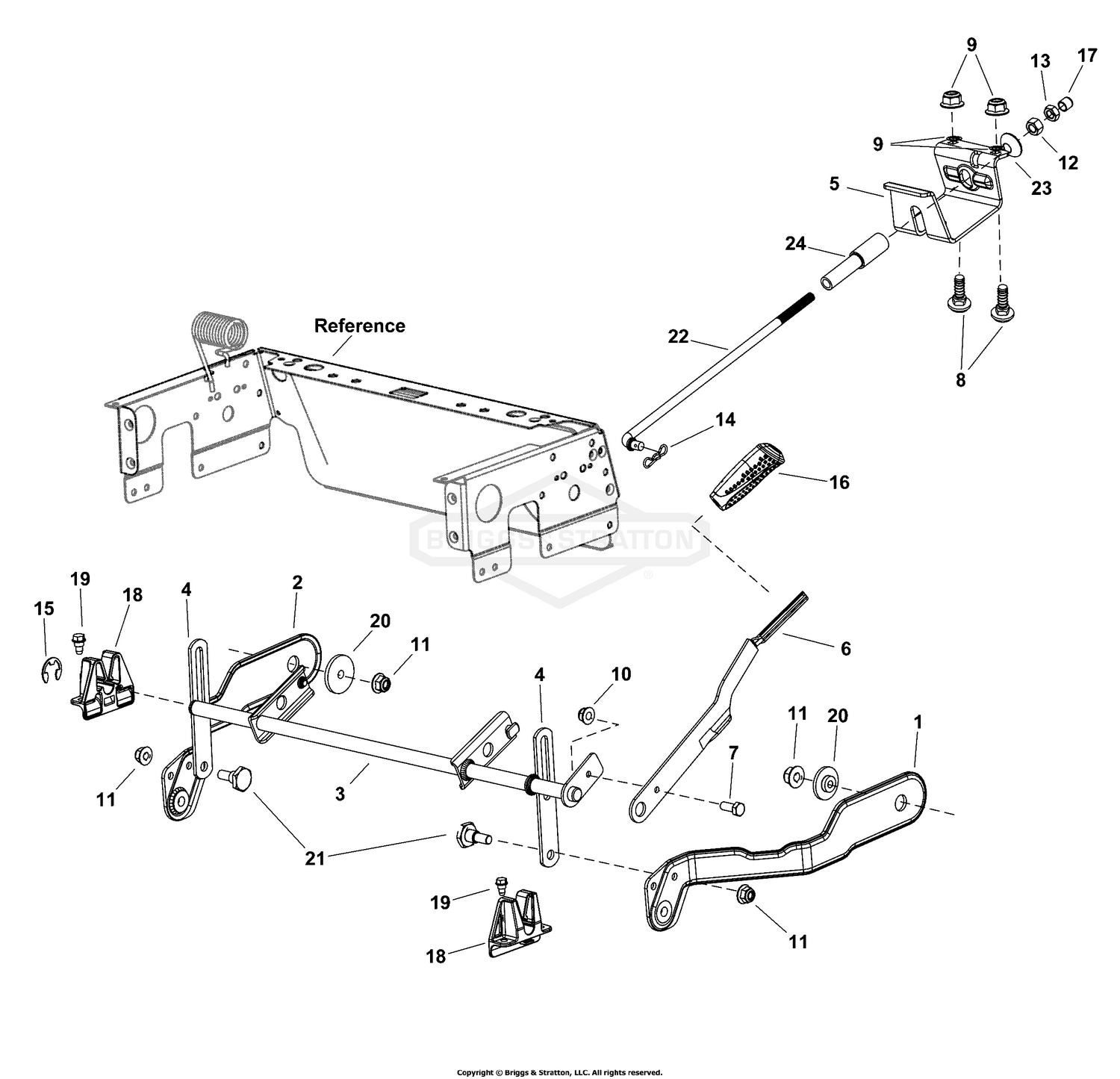

| Ref | Part Number | Description |
|---|
| 1 |
771255 |
PLATE, Deck Lift, RH Price: $107.52 |
| 2 |
771256 |
PLATE, Deck Lift, LH Price: $89.99 |
| 3 |
771257 |
ASSEMBLY, Deck Lift Shift Price: $122.49 |
| 4 |
771258 |
PLATE, Lift Link Price: $20.49 |
| 5 |
771259 |
BRACKET, Rod Support Mounting Price: $29.63 |
| 6 |
771260 |
HANDLE, Deck Lift Price: $24.99 |
| 7 |
771261 |
SCREW, 5/16-18 X .75, Hex Cap Price: $6.82 |
| 8 |
771262 |
BOLT, 3/8-16 X 1.00, Carriage Price: $6.79 |
| 9 |
771263 |
NUT, 3/8, Push Price: $4.89 |
| 10 |
84005079 |
LOCKNUT Price: $7.49 |
| 11 |
703333 |
NUT, 3/8-16 Price: $4.26 |
| 12 |
771264 |
NUT, 1/2-13, Hex Nylock Price: $7.19 |
| 13 |
771265 |
NUT, 1/2-13, Hex Price: $12.29 |
| 14 |
771266 |
PIN, Bow Tie Cotter Price: $5.19 |
| 15 |
771267 |
E-RING Price: $6.67 |
| 16 |
771268 |
GRIP Price: $24.49 |
| 17 |
771269 |
END CAP, Lift Rod Price: $4.69 |
| 18 |
771270 |
BRACKET, Deck Lift Price: $8.49 |
| 19 |
703521 |
BOLT, Shoulder, 1/4-20 x 1/2" Price: $9.94 |
| 20 |
771271 |
SPACER, Shoulder -S Price: $8.09 |
| 21 |
771272 |
SCREW, 3/8-16, Shoulder Price: $7.25 |
| 22 |
771273 |
ROD, Deck Front Lift Price: $32.49 |
| 23 |
771274 |
CUP, Lift Pivot Price: $5.45 |
