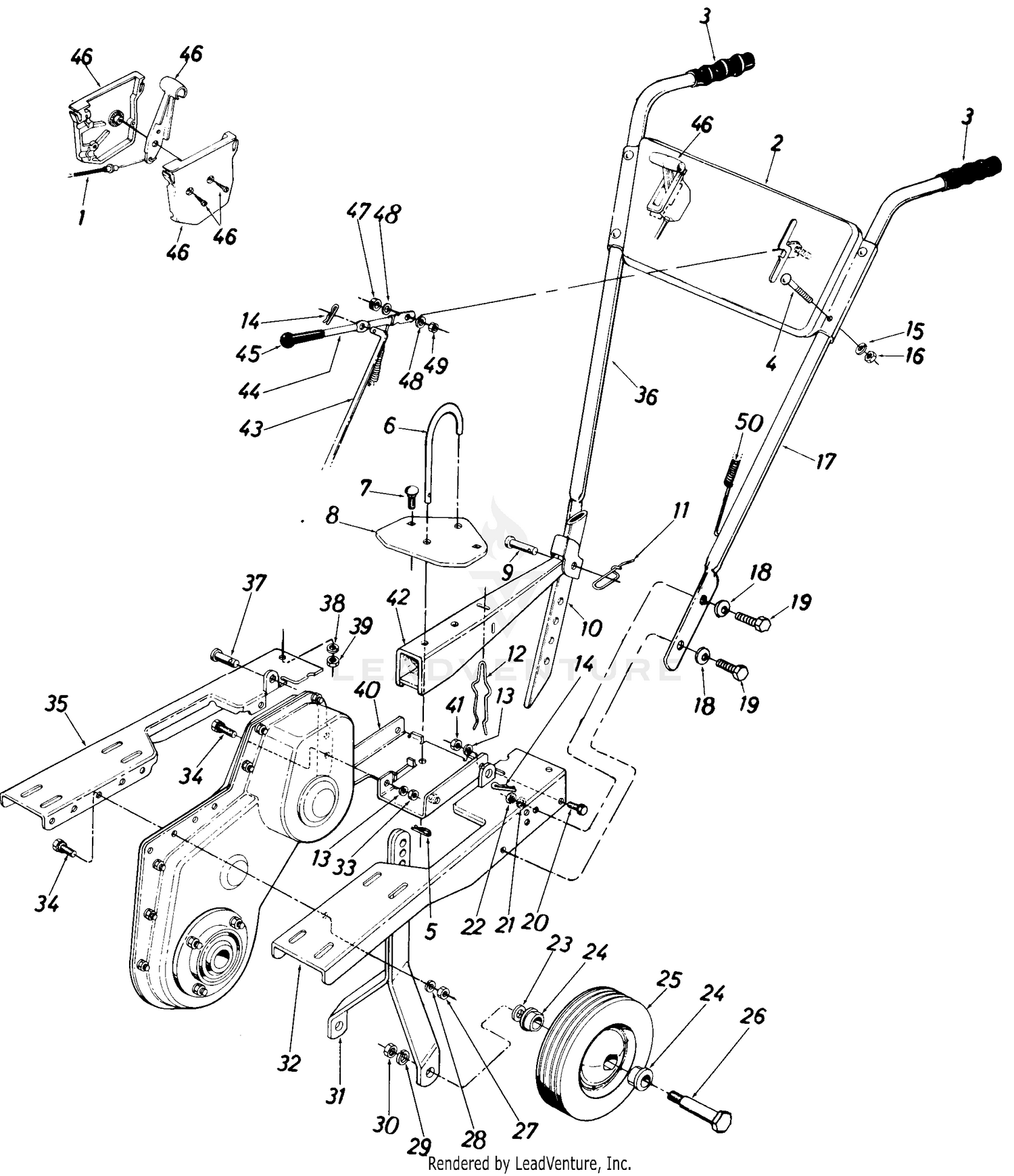

| Ref | Part Number | Description |
|---|
| 2 |
784-0034 |
Handle Panel Ass'y. Price: Call Us |
| 3 |
720-04083 |
Grip This part replaces 720-0180. Price: $12.95 |
| 4 |
710-0458 |
CARRIAGE BOLT 5/16-18 x 1.75 Price: $3.72 |
| 5 |
714-0149B |
Inter. Cotter Pin This part replaces 714-0149. Price: $3.95 |
| 6 |
04602 |
CLEVIS PIN Not Available Price: |
| 7 |
710-0451 |
Carriage Bolt 5116-18 x .75 Lg.* Price: $3.53 |
| 9 |
711-0231A |
CLEVIS PIN .500 x 1.875 This part replaces 711-0231. Price: $5.48 |
| 10 |
04668 |
BAR-DEPTH Not Available Price: |
| 11 |
732-0194 |
Spring Pin Price: $4.11 |
| 12 |
732-0290 |
SPRING-DEPTH BAR Not Available Price: |
| 13 |
936-0119 |
Lock Wash. 5/16" I.D. This part replaces 736-0119. Price: $4.29 |
| 14 |
714-0145 |
Internal Cotter Pin Price: $4.42 |
| 15 |
936-0119 |
Lock Wash. 5/16" I.D. This part replaces 736-0119. Price: $4.29 |
| 16 |
712-3010 |
HEX NUT 5/16-18 This part replaces 712-0267. Price: $3.89 |
| 17 |
749-0502 |
HANDLE (LH) Not Available Price: |
| 18 |
736-0105 |
Belleville Wash. 3/8 I.D. Price: $3.96 |
| 19 |
710-0514 |
Hex Bolt 3/8-16 x 1" Lg. This part replaces 710-0253. Price: $3.78 |
| 20 |
710-0118 |
Hex Bolt 5/16-18 x .75 Lg. Price: $3.76 |
| 21 |
736-0169 |
L-Wash. 3/8 I.D. Price: $3.33 |
| 22 |
712-0798 |
Hex Nut 3/8-16 Thd. Price: $3.86 |
| 23 |
736-0253 |
Belleville Wash. .505 I.D. x 1.00" O.D. Price: $3.58 |
| 24 |
741-0116 |
FLANGE BEARING Not Available Price: |
| 25 |
753-04874 |
WHEEL KIT REPLACEM'T Not Available This part replaces 734-0584. Price: |
| 26 |
738-0318 |
SCREW-SHLD Not Available Price: |
| 27 |
712-3010 |
HEX NUT 5/16-18 This part replaces 712-0267. Price: $3.89 |
| 28 |
936-0119 |
Lock Wash. 5/16" I.D. This part replaces 736-0119. Price: $4.29 |
| 29 |
736-0921 |
L-Wash. 1/2" I.D. Price: $3.90 |
| 30 |
712-0200A |
Hex Ins. L-Nut 1/2-20 Thd. This part replaces 712-0200. Price: $3.85 |
| 31 |
06813 |
BRACKET AS Not Available Price: |
| 32 |
06792 |
Engine"U"-Channel Ass'y.-L.H. Price: Call Us |
| 33 |
712-3010 |
HEX NUT 5/16-18 This part replaces 712-0267. Price: $3.89 |
| 34 |
710-0322 |
HEX BOLT 5/16-18 x 1 LG.* Not Available Price: |
| 35 |
06794 |
CHANNEL-EN Not Available Price: |
| 36 |
749-0356 |
Hand le-R.H . Price: Call Us |
| 37 |
711-0679A |
Clevis Pin .375" Dia. x 1.88" This part replaces 711-0599. Price: $12.40 |
| 38 |
936-0119 |
Lock Wash. 5/16" I.D. This part replaces 736-0119. Price: $4.29 |
| 39 |
712-3010 |
HEX NUT 5/16-18 This part replaces 712-0267. Price: $3.89 |
| 41 |
712-3010 |
HEX NUT 5/16-18 This part replaces 712-0267. Price: $3.89 |
| 42 |
04589 |
TAIL PIECE Not Available Price: |
| 43 |
747-0183 |
Control Rod Price: Call Us |
| 44 |
747-0182 |
LEVER-CLUTCH Not Available Price: |
| 45 |
720-0143 |
GRIP Not Available Price: |
| 46 |
831-0796A |
Throttle Control Box Ass'y. This part replaces 831-0692. Price: $20.36 |
| 47 |
735-0126A |
RUBBER WASHER Not Available This part replaces 735-0126. Price: |
| 48 |
736-0159 |
Fl-Wash. .344" I.D. x .880 O.D. x .06 Price: $3.71 |
| 49 |
912-0158 |
Hex Cent. L.-Nut 5/16-18 Thd. This part replaces 712-0158. Price: $2.83 |
