| Ref | Part Number | Description |
|---|
| 1 |
3220-3 |
NUT-HJ Price: $0.28 |
| 2 |
2411-36 |
BEARING-END, ROD Price: $32.13 |
| 3 |
323-9 |
SCREW-HH Price: $1.29 |
| 4 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 5 |
3272-2 |
PIN-COTTER Price: $2.29 |
| 6 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 7 |
75-6580 |
CABLE-PEDAL Price: $34.72 |
| 8 |
75-3270-03 |
HUB-PIVOT, TRACTION This part replaces 75-3270. Price: $144.73 |
| 9 |
32121-6 |
PIN-ROLL, SLOTTED Price: $0.28 |
| 10 |
32121-45 |
PIN-SPRING Price: $0.27 |
| 11 |
49-6440-03 |
PEDAL-FORWARD This part replaces 49-6440. Price: $84.90 |
| 12 |
74-9100 |
PAD-PEDAL, FORWARD Price: $27.08 |
| 13 |
75-2970 |
PEDAL-TRACTION Price: $135.64 |
| 14 |
74-9110 |
PAD-PEDAL, REVERSE Price: $13.49 |
| 16 |
112-5084 |
BRACKET-LEVER This part replaces 75-6510. Price: $61.39 |
| 17 |
75-6550 |
DISC-FRICTION Price: $7.96 |
| 19 |
233-42 |
KNOB Price: $12.88 |
| 20 |
75-6490 |
LEVER ASM Price: $78.45 |
| 21 |
3290-461 |
WASHER-SPRING Price: $3.89 |
| 22 |
121-4600 |
NUT-HEX This part replaces 3296-59. Price: $0.78 |
| 23 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 24 |
256-236 |
BEARING-MOUNT, FLANGE Price: $27.99 |
| 25 |
322-3 |
SCREW-HH Price: $0.79 |
| 26 |
7-3900 |
PAD-BRAKE Price: $27.35 |
| 28 |
63-7880 |
PIN-LATCH, BRAKE Price: $6.04 |
| 29 |
63-7733 |
LH BRAKE CABLE ASM Price: $210.39 |
| 30 |
283-58 |
PIN-CLEVIS Price: $3.87 |
| 31 |
3256-69 |
WASHER-FLAT Price: $0.62 |
| 32 |
32121-16 |
PIN-SPRING Price: $0.41 |
| 33 |
75-1440-03 |
PEDAL-BRAKE, LH This part replaces 75-1440. Price: $207.74 |
| 34 |
256-42 |
BUSHING Price: $7.03 |
| 35 |
75-1430 |
RH BRAKE PEDAL ASM Price: $255.51 |
| 36 |
75-1470 |
PIN-PIVOT, BRAKE Price: $45.68 |
| 37 |
75-2170-03 |
TUBE-CONTROL, PUMP This part replaces 75-2170. Price: $103.73 |
| 38 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 39 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 40 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 41 |
32121-50 |
PIN-SPRING Price: $1.21 |

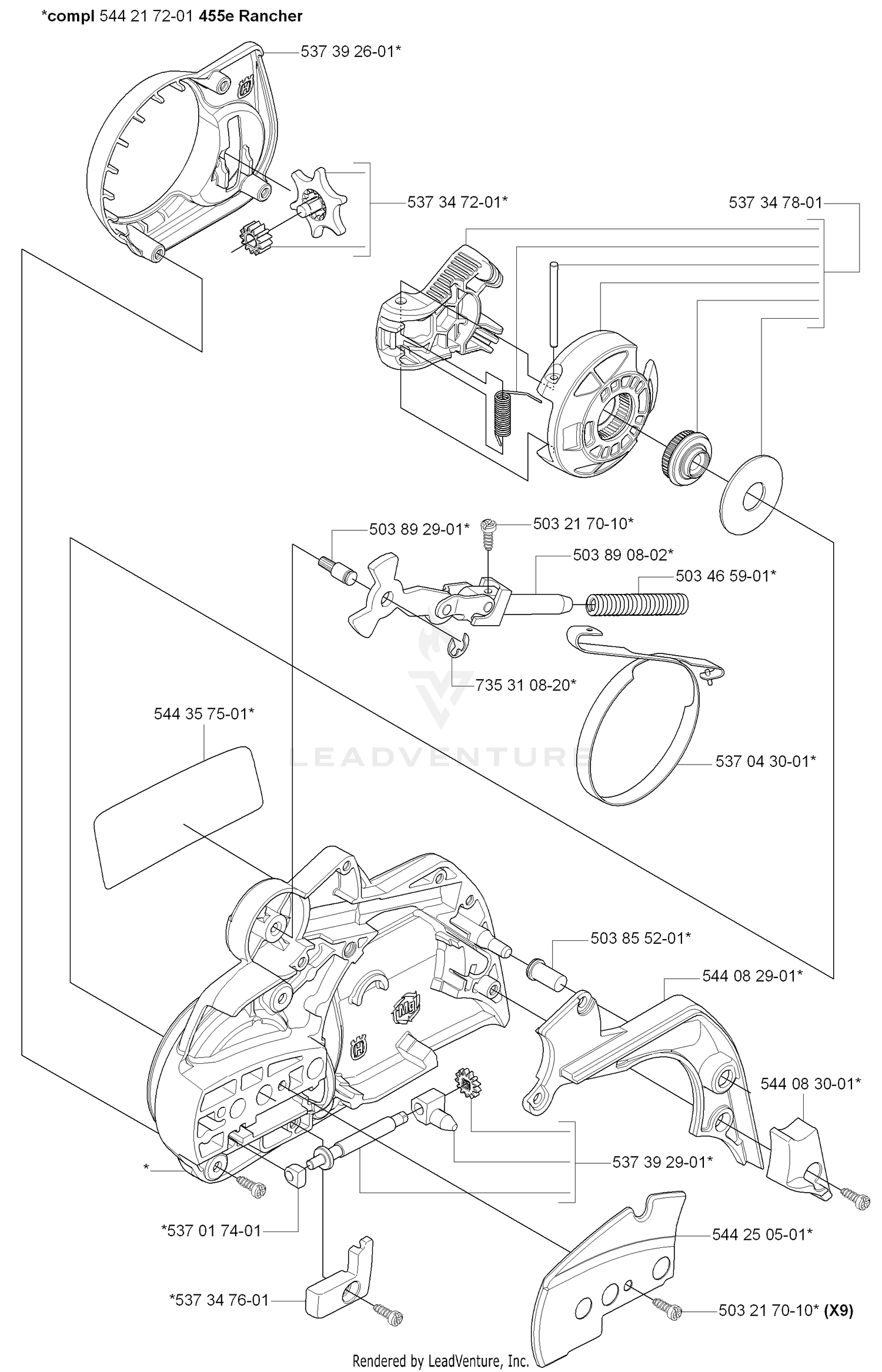

| 503217010 |
503217010 |
SCREW Price: $3.99 |
| 503465901 |
503465901 |
SPRING Price: $6.99 |
| 503855201 |
503855201 |
SLEEVE Price: $4.99 |
| 503890802 |
503890802 |
JOINT Price: $19.99 |
| 503892901 |
503892901 |
PIN Price: $2.99 |
| 537017401 |
537017401 |
SLEEVE Price: $4.99 |
| 537043001 |
537043001 |
BRAKE BAND Price: $14.99 |
| 537347201 |
537347201 |
CHAIN TENSIONER WHEEL, COMP. Price: $6.99 |
| 537347601 |
504542801 |
COVER This part replaces 537347601. Price: $3.99 |
| 537347801 |
537347801 |
KNOB, COMPLETE Price: $17.99 |
| 537392601 |
537392601 |
HEAT SHIELD Price: $7.99 |
| 537392901 |
537392901 |
CHAIN TENSIONER SCREW, COMP. Price: $6.99 |
| 544082901 |
544082901 |
COVER, CHAIN BRAKE Price: $6.99 |
| 544083001 |
544083001 |
WEAR GUARD, CHAIN Price: $5.99 |
| 544217201 |
544217205 |
Covers This part replaces 544217201. Price: $59.99 |
| 544250501 |
544250501 |
PLATE Price: $5.99 |
| 544357501 |
544357501 |
DECAL, CLUTCH HOUSING Price: $3.99 |
