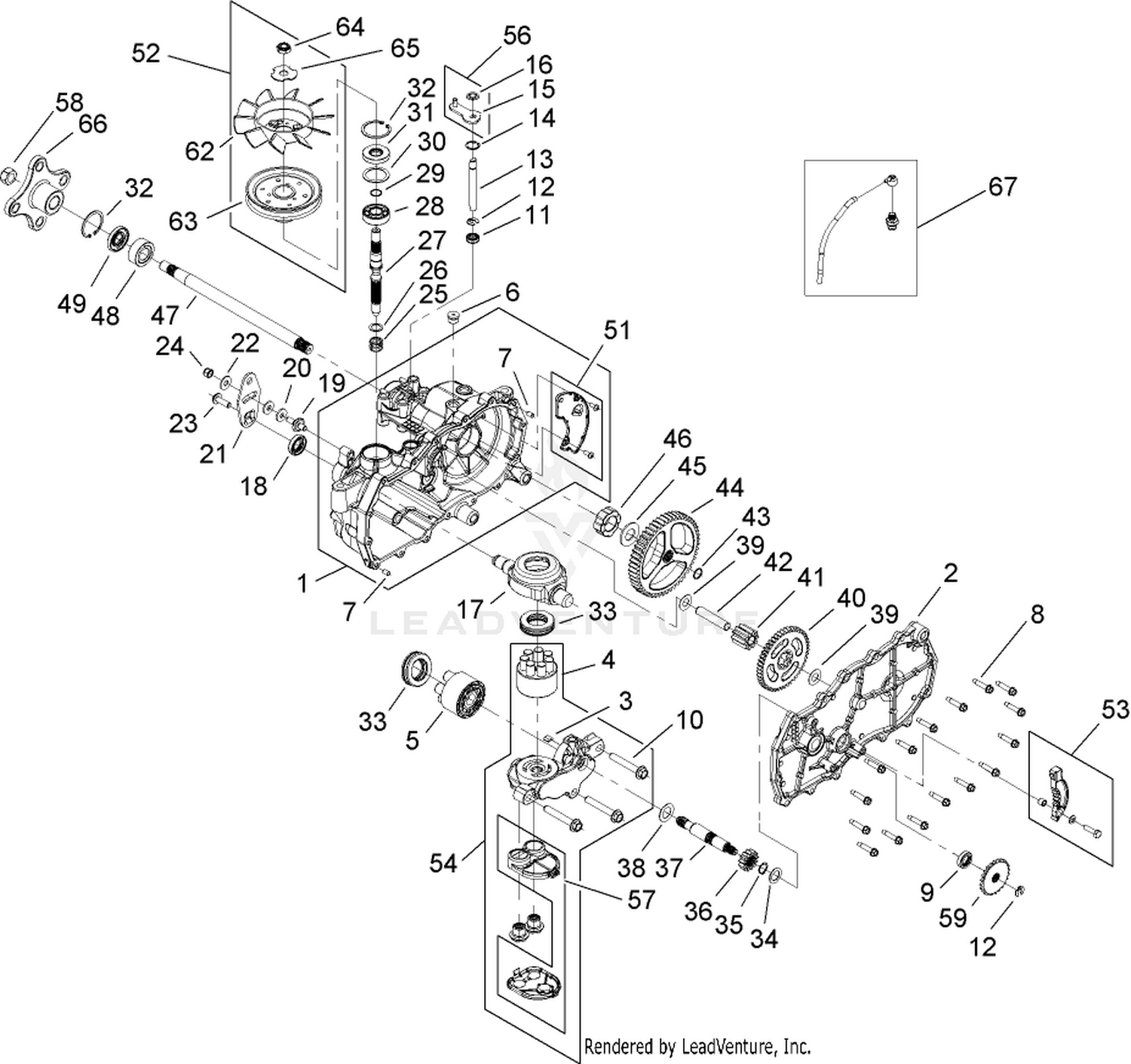

| Ref | Part Number | Description |
|---|
| 1 |
106-8674 |
MAIN HOUSING ASM Price: $558.23 |
| 2 |
106-8675 |
SIDE ASM Price: $439.29 |
| 3 |
110-8560 |
PLATE-BYPASS Price: $4.92 |
| 4 |
110-8561 |
PUMP BLOCK ASM Price: $225.13 |
| 5 |
103-2666 |
CYLINDER BLOCK KIT Price: $473.99 |
| 6 |
104-2189 |
PLUG-THREAD, STRAIGHT Price: $24.99 |
| 7 |
104-2170 |
PIN Price: $5.79 |
| 8 |
104-5305 |
SCREW-HHF Price: $5.18 |
| 9 |
104-5347 |
SEAL-OIL This part replaces 112-9851. Price: $14.06 |
| 10 |
94-6926 |
BOLT Price: $6.52 |
| 11 |
139-7497 |
SEAL-LIP This part replaces 106-8676. Price: $4.46 |
| 12 |
106-8677 |
RING-RETAINING, EXTERNAL Price: $5.91 |
| 13 |
106-8678 |
ROD-BYPASS Price: $36.24 |
| 14 |
106-8679 |
RING-RETAINING, INTERNAL Price: $6.04 |
| 15 |
107-2489 |
BYPASS ARM KIT This part replaces 112-9852. Price: $54.28 |
| 16 |
106-8681 |
RING-RETAINING, EXTERNAL Price: $5.77 |
| 17 |
104-5304 |
SWASHPLATE-TRUNNION Price: $129.21 |
| 18 |
104-5313 |
SEAL-LIP Price: $16.30 |
| 19 |
104-2116 |
STUD Price: $25.96 |
| 20 |
112-9853 |
PUCK-FRICTION Price: $5.18 |
| 21 |
106-8747 |
ARM-CONTROL Price: $23.91 |
| 22 |
5-4460 |
WASHER-PIVOT Price: $6.19 |
| 23 |
107-2488 |
SCREW Price: $8.49 |
| 24 |
105-1872 |
NUT Price: $8.76 |
| 25 |
94-1936 |
SPRING-BLOCK Price: $7.99 |
| 26 |
94-1937 |
WASHER-THRUST Price: $5.39 |
| 27 |
104-5306 |
SHAFT-INPUT Price: $244.96 |
| 28 |
104-5311 |
BEARING-BALL Price: $42.99 |
| 29 |
104-5307 |
RING-RETAINING Price: $5.18 |
| 30 |
104-5308 |
SPACER Price: $7.99 |
| 31 |
104-5310 |
SEAL-LIP Price: $36.99 |
| 32 |
104-5309 |
RING-RETAINING Price: $11.99 |
| 33 |
94-6922 |
BEARING-THRUST Price: $59.99 |
| 34 |
104-5339 |
WASHER-FLAT Price: $4.43 |
| 35 |
104-5340 |
RING-RETAINING Price: $5.18 |
| 36 |
104-5316 |
GEAR-PINNION, 13T Price: $20.94 |
| 37 |
106-8683 |
SHAFT-MOTOR Price: $189.48 |
| 38 |
104-5360 |
WASHER Price: $5.18 |
| 39 |
94-1933 |
WASHER Price: $3.86 |
| 40 |
104-5317 |
GEAR-10T/48T Price: $125.66 |
| 41 |
104-5318 |
GEAR-JACKSHAFT, 10T Price: $57.09 |
| 42 |
104-5329 |
PIN-JACKSHAFT Price: $74.18 |
| 43 |
112-9854 |
RING-SPIRAL, RETAINING Price: $2.96 |
| 44 |
112-9855 |
GEAR-52T, BULL Price: $104.05 |
| 45 |
112-9856 |
WASHER Price: $5.44 |
| 46 |
112-9857 |
BEARING-SLEEVE Price: $12.58 |
| 47 |
120-7932 |
KIT-AXLE, LONG This part replaces 112-9858. Price: $184.09 |
| 48 |
112-9859 |
BUSHING-AXLE Price: $9.94 |
| 49 |
112-9860 |
SEAL-LIP Price: $13.67 |
| 51 |
106-8687 |
EXPANSION PLATE KIT Price: $46.92 |
| 52 |
121-5729 |
FAN PULLEY KIT This part replaces 105-1928. Price: $76.03 |
| 53 |
106-8688 |
BRAKE ARM KIT Price: $24.10 |
| 54 |
112-9862 |
CENTER SECTION FILTER KIT Price: $341.38 |
| 56 |
107-2489 |
BYPASS ARM KIT Price: $54.28 |
| 57 |
106-8693 |
FILTER KIT Price: $81.94 |
| 58 |
105-1895 |
NUT Price: $28.82 |
| 59 |
106-8694 |
DISC-BRAKE, COG Price: $39.35 |
| 62 |
121-5729 |
FAN PULLEY KIT This part replaces 105-1927. Price: $76.03 |
| 63 |
121-5729 |
FAN PULLEY KIT This part replaces 105-1896. Price: $76.03 |
| 64 |
105-1875 |
NUT-LOCK Price: $5.18 |
| 65 |
104-2120 |
SCREW Price: $5.27 |
| 66 |
105-1894 |
HUB ASM Price: $228.16 |
