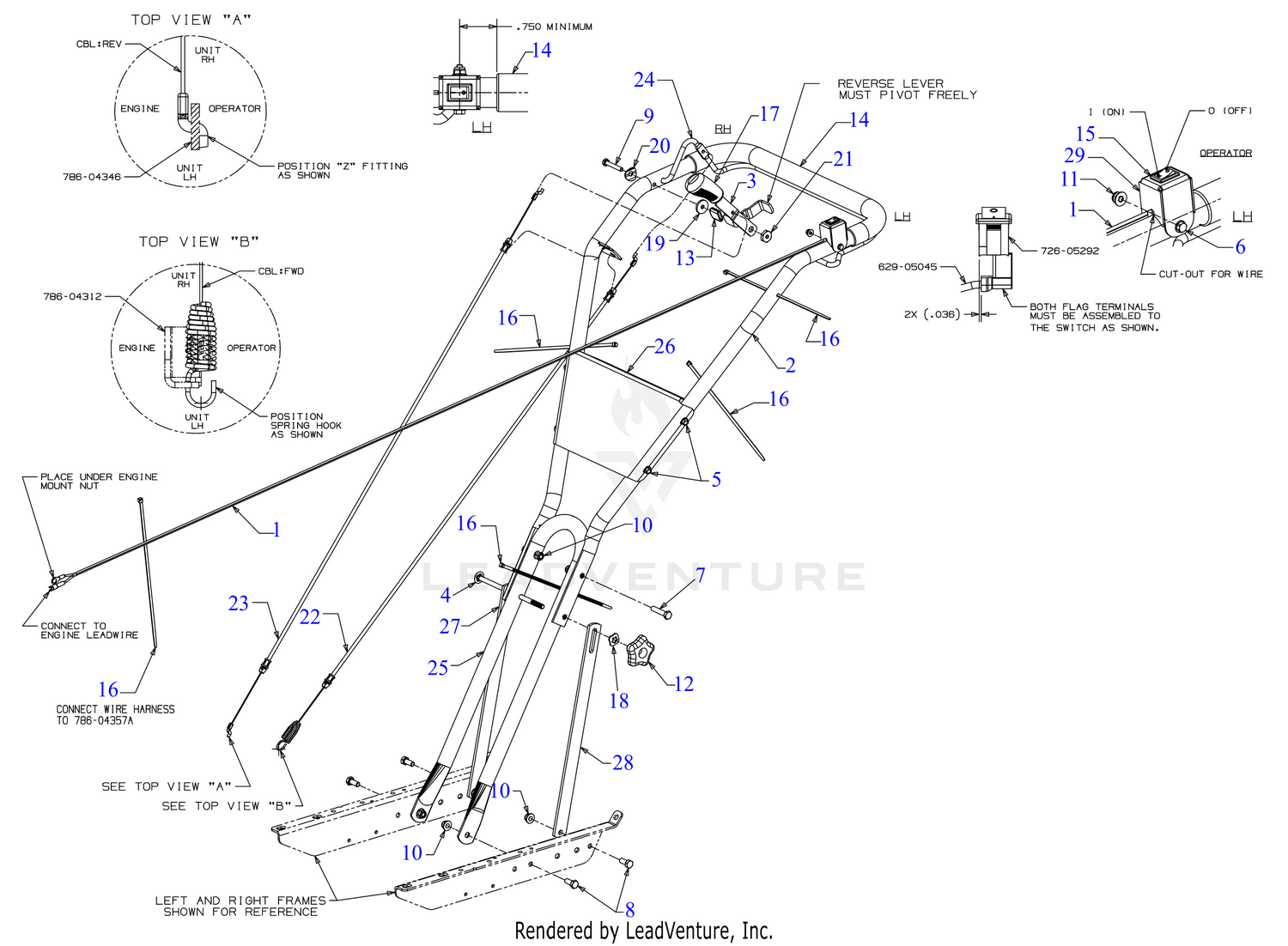

Handle
Parts (25)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 629-05045 | HARNESS ASSEMBLY Price: $17.57 |
| 2 | 649-04097A-0638 | UPPER HANDLE ASSEMBLY (MTD RED) Price: $94.21 |
| 4 | 710-05211 | SCREW 5/16-18 x 6.75 Price: $5.59 |
| 5 | 710-0599 | SCREW 1/4-20 X.500 Price: $3.86 |
| 6 | 710-06774 | SCREW HEX HD WASHER (#10-32 x 1.50) Price: $3.33 |
| 7 | 710-0805A | SCREW 5/16-18 x 1.5 LG Price: $3.75 |
| 8 | 710-3008 | SCREW 5/16-18 x .75 GR5 Price: $3.76 |
| 9 | 710-3288 | BOLT 1/4-20X1.62 GR5 Price: $5.94 |
| 10 | 712-04063 | FLANGE LOCK NUT 5/16-18 Price: $3.56 |
| 11 | 712-04113 | HEX NUT Price: $4.69 |
| 13 | 920-04173 | REVERSE HANDLE GRIP Price: $3.70 |
| 14 | 720-05023A | HANDLE GRIP Price: $26.08 |
| 15 | 725-05292 | POSITIVE SWITCH- ON/OFF Price: $5.59 |
| 16 | 726-04047 | CABLE TIE Price: $3.18 |
| 17 | 731-04735 | BRAKE HANDLE GRIP Price: $17.99 |
| 19 | 736-0176 | Flat Washer .265 x .938 x .120 This part replaces 936-0176. Price: $3.95 |
| 20 | 736-0451 | Saddle Washer This part replaces 936-0451. Price: $3.75 |
| 21 | 738-0440 | SHOULDER SPACER Price: $5.45 |
| 22 | 946-04413A | FORWARD CABLE Price: $30.97 |
| 23 | 946-04414A | REVERSE CABLE Price: $34.13 |
| 24 | 747-04789A-0637 | CLUTCH BAIL (POWDER BLACK) Price: $25.69 |
| 25 | 749-04742-0638 | LOWER HANDLE Price: $48.72 |
| 26 | 786-04200-0638 | HANDLE PANEL Price: $24.75 |
| 27 | 786-04433-0638 | LOWER HANDLE Price: $7.71 |
| 28 | 786-04434-0638 | SUPPORT BRACKET Price: $7.17 |
