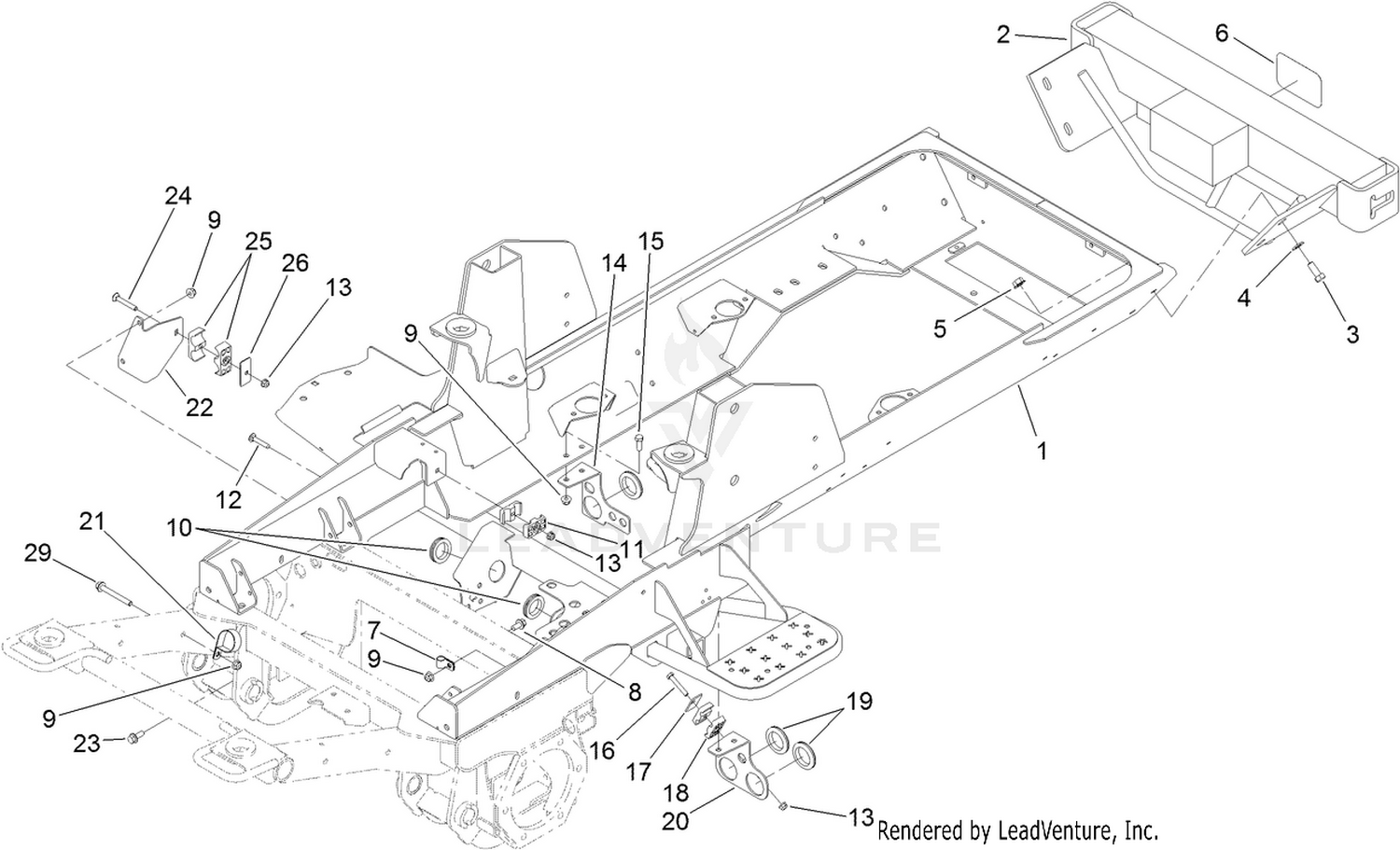

Frame and Bumper Assembly
Parts (26)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 120-4110-03 | FRAME Price: $3,519.99 |
| 2 | 161-1785-03 | GM4000 BUMPER-WEIGHT ASM Price: Call Us |
| 3 | 325-5 | SCREW-HH Price: $1.20 |
| 4 | 3256-26 | WASHER-FLAT Price: $0.39 |
| 5 | 32128-23 | NUT-HF Price: $1.51 |
| 6 | 105-8278 | DECAL Price: $9.67 |
| 7 | 2412-138 | R-CLAMP Price: $1.36 |
| 8 | 3234-1 | SCREW-HHF Price: $1.62 |
| 9 | 104-8301 | NUT-HF, NI Price: $1.09 |
| 10 | 240-7 | GROMMET-RUBBER Price: $16.51 |
| 11 | 56-7971 | CLAMP-TUBE Price: $17.90 |
| 12 | 3230-5 | BOLT-CAR Price: $0.54 |
| 13 | 104-8300 | NUT-HF, NI Price: $0.39 |
| 14 | 121-1508-0P | BRACKET-BULKHEAD Price: $24.95 |
| 15 | 323-6 | SCREW-HH Price: $0.66 |
| 16 | 322-10 | SCREW-HH Price: $0.70 |
| 17 | 69-9760 | COVERPLATE Price: $5.38 |
| 18 | 56-7976 | CLAMP-TUBE Price: $2.44 |
| 19 | 240-2 | GROMMET-RUBBER Price: $20.20 |
| 20 | 121-1481-0P | PLATE-MOUNT, LH BULKHEAD Price: $33.56 |
| 21 | 2412-147 | CLAMP-R Price: $2.51 |
| 22 | 120-9086-0P | PLATE-MOUNT,TUBE Price: $22.28 |
| 23 | 3234-11 | SCREW-HHF Price: $1.23 |
| 24 | 3230-7 | BOLT-CARR Price: $0.88 |
| 25 | 56-7974 | CLAMP-TUBE Price: $2.17 |
| 26 | 69-9761 | PLATE-COVER Price: $6.26 |
