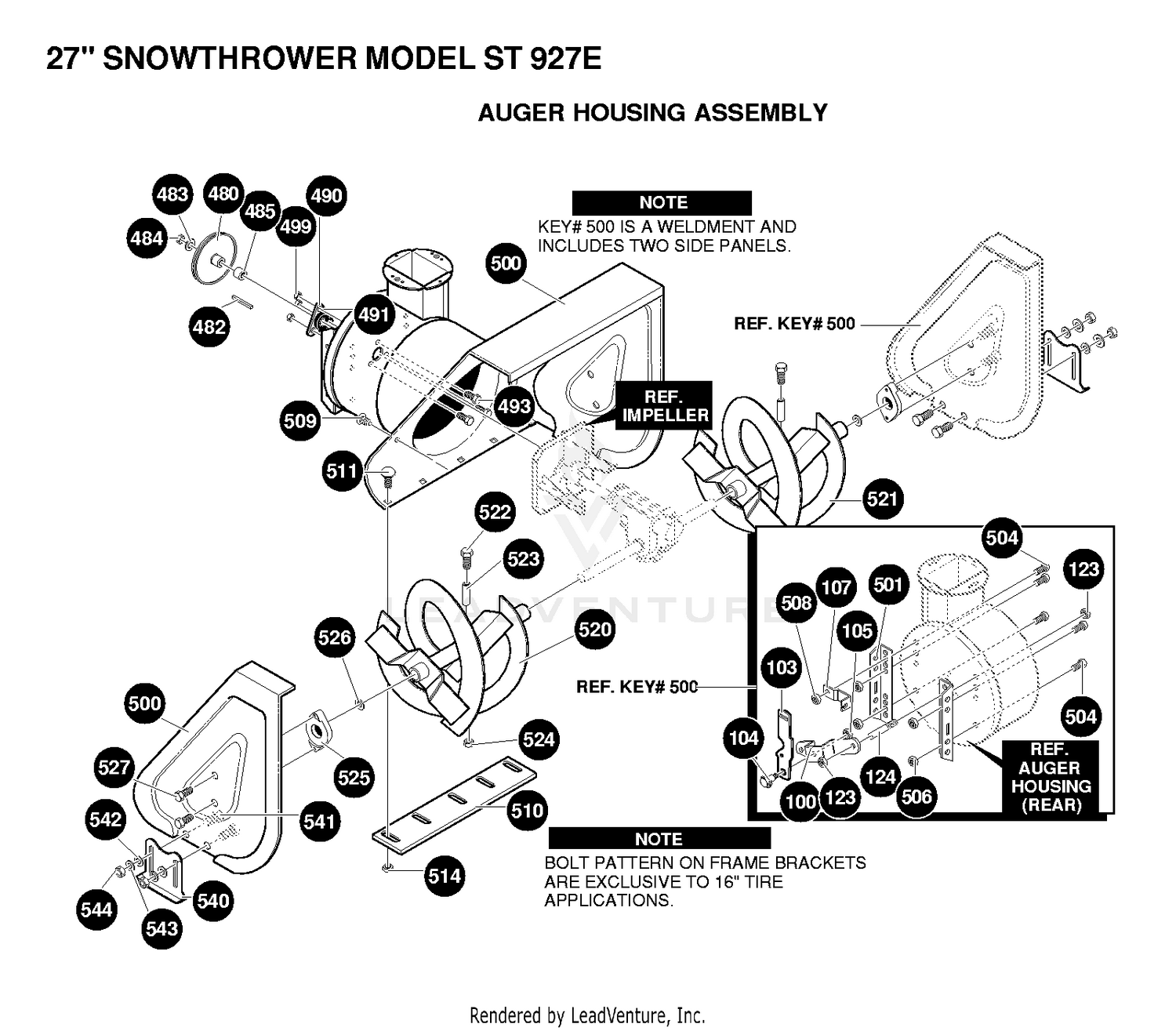

| Ref | Part Number | Description |
|---|
| 100 |
601002024 |
PLATE, CLUTCH ARM MT. Price: $6.76 |
| 103 |
601002406 |
BRACKET, IDLER This part replaces 601002057. Price: $4.63 |
| 104 |
601002026 |
Bolt, .497 x .138 Price: $0.56 |
| 105 |
601002407 |
NUT 3/8-16 This part replaces 601000060. Price: $3.99 |
| 107 |
601002028 |
BRACKET, CABLE MT. Price: $2.35 |
| 123 |
601002407 |
NUT 3/8-16 This part replaces 601000060. Price: $3.99 |
| 124 |
601001742 |
STUD, BRAKE ARM Price: $8.07 |
| 125 |
601000015 |
WASHER, REGSPTLK.393X.68X Price: $1.66 |
| 480 |
601001609 |
PULLEY, V4L 8.40 OD Price: $36.06 |
| 482 |
601001507 |
SQUARE KEY Price: $2.85 |
| 483 |
601001446 |
WASHER Price: $1.99 |
| 484 |
601000107 |
NUT, 1/2-20 REGHXCTRLK Price: $3.99 |
| 485 |
601001610 |
SPACER, SLEV .676X1.00X.53 Price: $3.99 |
| 490 |
601001509 |
RETAINER Price: $2.03 |
| 491 |
601000565 |
BEARING, BALL This part replaces 601000539. Price: $16.99 |
| 493 |
601000073 |
SCREW, 5/16-18X .75 HHC Price: $2.99 |
| 499 |
601002036 |
NUT, 5/16-18 Price: $1.99 |
| 500 |
601002173 |
HOUSING ASSEMBLY/24" Price: $159.99 |
| 501 |
601002035 |
BRKT, MOUNT Price: $1.54 |
| 504 |
601002061 |
SCREW Price: $1.99 |
| 506 |
601002407 |
NUT 3/8-16 This part replaces 601000060. Price: $3.99 |
| 508 |
601002407 |
NUT 3/8-16 This part replaces 601000060. Price: $3.99 |
| 509 |
601002174 |
PLUG, CHRISTMAS TREE Price: $5.99 |
| 510 |
601001614 |
BLADE, SCRAPER, MF 27" Price: $28.99 |
| 511 |
601001411 |
BOLT Price: $6.99 |
| 514 |
601002036 |
NUT, 5/16-18 Price: $1.99 |
| 520 |
601001872 |
AUGER, ASSY LH 25" Price: $86.64 |
| 521 |
601001873 |
AUGER, ASSY RH 25" Price: $78.04 |
| 522 |
601001456 |
BOLT, SHEAR 703057 Price: $8.99 |
| 523 |
601001517 |
SPACER Price: $4.99 |
| 524 |
601002318 |
RP NUT This part replaces 601000062. Price: $9.99 |
| 525 |
601001518 |
BEARING, AUGER SHAFT Price: $6.60 |
| 526 |
601001519 |
WASHER Price: $3.23 |
| 527 |
601000520 |
SCREW, 5/16-18X .75 WAHHT Price: $1.74 |
| 541 |
601001411 |
BOLT Price: $6.99 |
| 542 |
601000019 |
WASHER, FLAT .344X .69X. Price: $2.99 |
| 543 |
601000023 |
WASHER, HVSPTLK .328X.60X Price: $2.99 |
| 544 |
601000012 |
NUT, 5/16-18 REGHEX Price: $5.99 |
