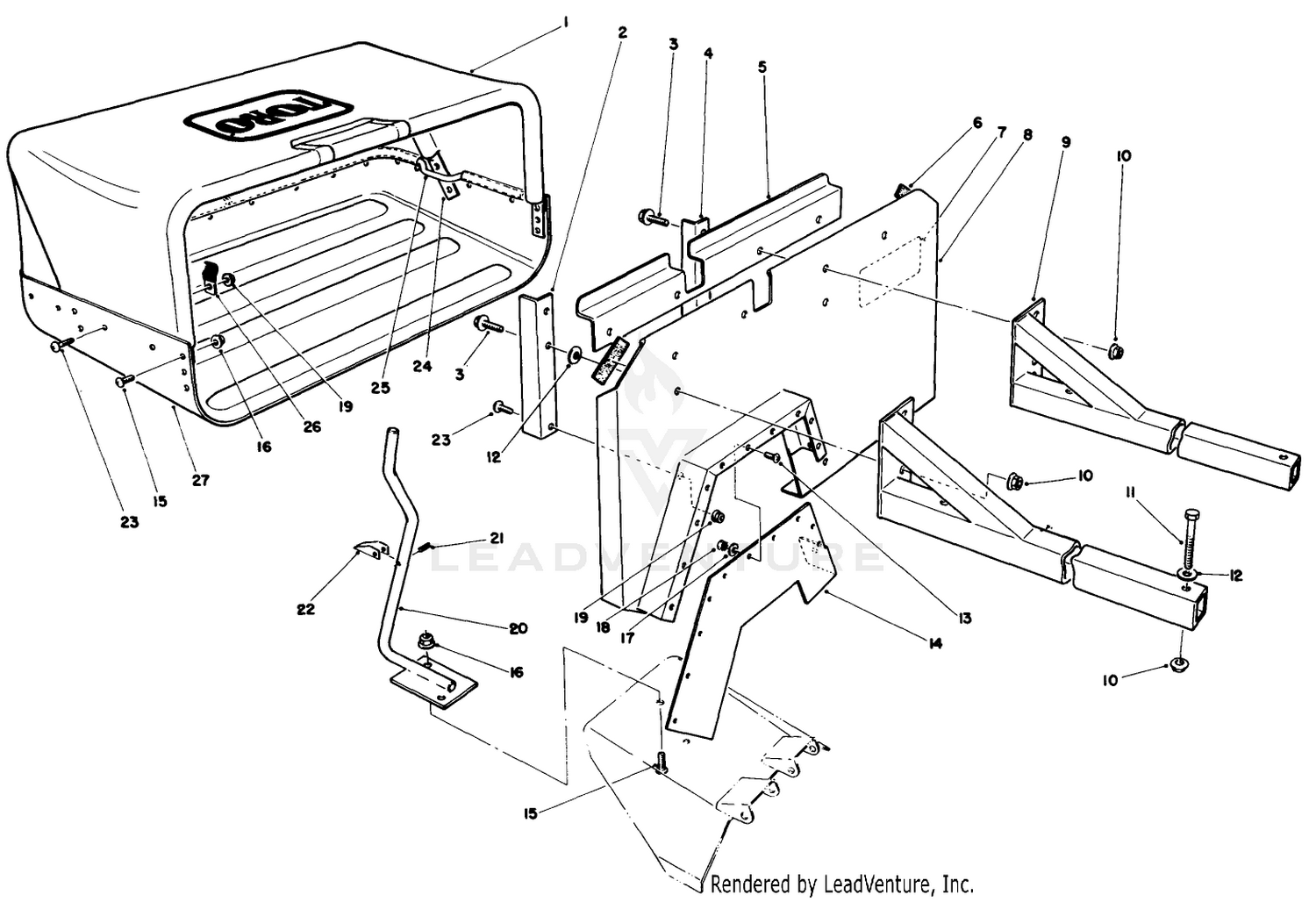

36 Inch Side Discharge Bagging Kit No. 30125 (Optional)

36 Inch Side Discharge Bagging Kit No. 30125 (Optional)

Parts (26)

RefPart NumberDescription
1 52-5280 DISCONTINUED Price: Call Us
2 52-5310-01 SUPPORT-PANEL, RH This part replaces 52-5310. Price: $39.99
3 3234-11 SCREW-HHF Price: $1.23
4 52-5320-01 SUPPORT-PANEL, LH This part replaces 52-5320. Price: $39.01
5 55-9910-01 SUPPORT-ATTACHMENT, BAG This part replaces 52-5290. Price: $105.98
6 52-5260 PAD-RUBBER Price: $16.99
7 52-5370 DECAL-DANGER Price: $10.98
8 52-5220-01 PANEL-BACK ASM This part replaces 52-5220. Price: $461.99
9 52-5170-01 MOUNT-BEAM ASM This part replaces 52-5170. Price: $375.77
10 3290-357 NUT-HHF, WHIZ Price: $0.61
11 323-11 SCREW-HH Price: $1.08
12 3256-4 WASHER-FLAT Price: $0.28
13 32104-122 SCREW Price: $1.09
14 52-5250 EXTENSION-RUBBER Price: $48.53
15 32122-14 SCREW-PPH Price: $1.02
16 32128-20 NUT-HF Price: $0.99
17 3256-49 WASHER-PLAIN Price: $0.33
18 32149-7 NUT-KEPS Price: $0.27
19 32128-10 NUT-LOCK, HHF Price: $0.27
20 52-5340-01 ROD-LOCKUP ASM This part replaces 52-5340. Price: $176.99
21 32121-16 PIN-SPRING Price: $0.41
22 52-5300 LATCH-LOCKUP Price: $17.12
23 32122-42 SCREW Price: $1.69
24 52-5270-01 TUBE-SUPPORT, BAG This part replaces 52-5270. Price: $76.51
25 52-5330 ROD-CLOTH Price: $27.16
26 2412-90 CLIP-HALF Price: $3.29
