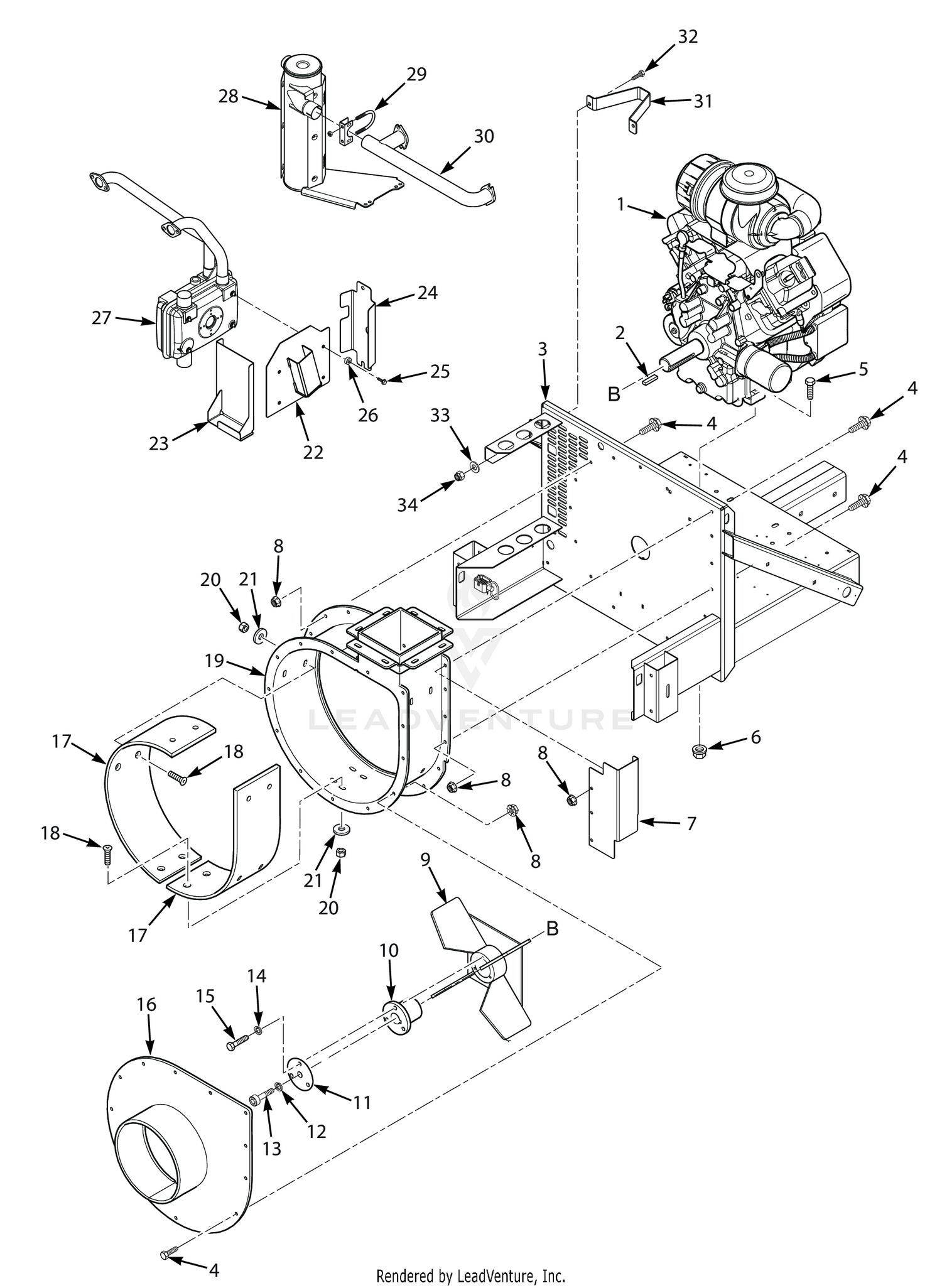

| Ref | Part Number | Description |
|---|
| 1 |
3217-6 |
NUT-HEX Price: $1.19 |
| 2 |
04063-32 |
Key, 3/8 x 3/8 x 3-1/2" Price: Call Us |
| 2 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 3 |
32144-10 |
SCREW-HWH Price: $4.29 |
| 3 |
452430 |
Base & Frame Weldment w / Decals Price: Call Us |
| 4 |
04017-26 |
Bolt, Hex Head Serrated Flange 3/8-16 x 3/4" Price: Call Us |
| 4 |
18-2660 |
DISCONTINUED Price: Call Us |
| 5 |
04001-12 |
Bolt, Hex Head 5/16-18 x 1-1/2" - Front Price: Call Us |
| 5 |
82-8970 |
DECAL-COOLANT, ENGINE This part replaces 26-7530. Price: $16.00 |
| 6 |
04019-03 |
Nut, Serrated Flange 5/16-18 (Right Front Engine Mounting, Briggs and Kohler Only) Price: Call Us |
| 6 |
2412-3 |
CLAMP-HOSE Price: $3.49 |
| 7 |
23-2150 |
DISCONTINUED Price: Call Us |
| 7 |
426209 |
Bracket, Hose Protector Price: Call Us |
| 8 |
04019-04 |
NUT, 3/8-16 SERRATED FLANGE HEX HEAD Price: Call Us |
| 8 |
66-6140 |
DECAL This part replaces 18-2180. Price: $25.48 |
| 9 |
27-3220 |
DECAL Price: $41.43 |
| 9 |
452455 |
Impeller Weldment, TL20W Price: Call Us |
| 10 |
26-9890 |
UPPER HOSE Price: $51.37 |
| 10 |
484820 |
Hub, Tapered Locking Q2 x 1-7/16" Price: Call Us |
| 11 |
322-3 |
SCREW-HH Price: $0.79 |
| 11 |
426138 |
Cover Plate, Hub Taper - TL20W Price: Call Us |
| 12 |
04030-07 |
Lockwasher, 5/8" Spring Price: Call Us |
| 12 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 13 |
04015-22 |
Socket Head Cap Screw, 5/8-18 x 1-3/4" Price: Call Us |
| 13 |
32104-116 |
SCREW-HWHTF Price: $0.55 |
| 14 |
04030-04 |
Lockwasher, 3/8” Spring, Kawasaki FX / FT & FT-EFI / B&S 32BV Price: Call Us |
| 14 |
3234-1 |
SCREW-HHF Price: $1.62 |
| 15 |
04001-21 |
Bolt, Hex Head 3/8-16 x 1-3/4" (Kohler EFI) Price: Call Us |
| 15 |
26-9900 |
LOWER HOSE Price: $59.90 |
| 16 |
33-2580 |
DISCONTINUED Price: Call Us |
| 16 |
452474 |
Cover, Housing - TL20W Price: Call Us |
| 17 |
249-21 |
CLAMP-SLOTTED Price: $18.93 |
| 17 |
462583 |
Wearliner Kit w/ Hardware Price: Call Us |
| 18 |
04014-07 |
Capscrew, 3/8-16 x 1-1/4" Price: Call Us |
| 18 |
32140-43 |
DISCONTINUED Price: Call Us |
| 19 |
304-46 |
DRAINCOCK Price: $7.55 |
| 19 |
462602 |
Housing Weldment w / Decals Price: Call Us |
| 20 |
04020-04 |
HEX LOCKNUT, ELASTIC STOP, 3/8-16 Price: Call Us |
| 20 |
38-4600 |
LH FRAME BAR Price: $29.16 |
| 21 |
04041-04 |
Flatwasher, 1/2 (.5/6 x .938 x .105) Price: Call Us |
| 21 |
353-548 |
ELBOW Price: $16.04 |
| 22 |
3290-379 |
TIE-CABLE Price: $0.31 |
| 22 |
452716 |
Weldment, Exhaust Deflector - 26.5hp Kohler EFI Price: Call Us |
| 23 |
42-6290 |
DISCONTINUED Price: Call Us |
| 23 |
426960 |
Heatshield, Front Price: Call Us |
| 24 |
32128-20 |
NUT-HF Price: $0.99 |
| 24 |
426961 |
Heatshield, Rear Price: Call Us |
| 25 |
04119-04 |
Bolt, Hex Head Cap Screw M5-.8 x 10 Flanged Price: Call Us |
| 25 |
2412-4 |
CLAMP-R Price: $4.22 |
| 26 |
23-1760 |
DISCONTINUE Price: Call Us |
| 26 |
43827 |
Spacer Price: Call Us |
| 27 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 28 |
32144-102 |
SCREW-HWH This part replaces 11-0590. Price: $3.19 |
| 28 |
485385 |
Muffler, 29hp Briggs & Stratton Price: Call Us |
| 29 |
33-2570 |
DISCONTINUED Price: Call Us |
| 29 |
48633 |
Clamp, Muffler (Clamp Only) Price: Call Us |
| 30 |
23-1770 |
DISCONTINUED Price: Call Us |
| 30 |
485004 |
Exhaust Manifold, 29hp Briggs & Stratton Price: Call Us |
| 31 |
23-1700 |
DISCONTINUED Price: Call Us |
| 31 |
426865 |
Muffler Guard Price: Call Us |
| 32 |
04001-19 |
Bolt, Hex Head, 3/8-16 x 1 Gr. 5 Price: Call Us |
| 33 |
04041-07 |
Flatwasher, 3/8" Special (.391 x .938 x .105) Price: Call Us |
| 34 |
04021-09 |
HEX NUT, ELASTIC STOP LOCK, 3/8-16 Price: Call Us |
