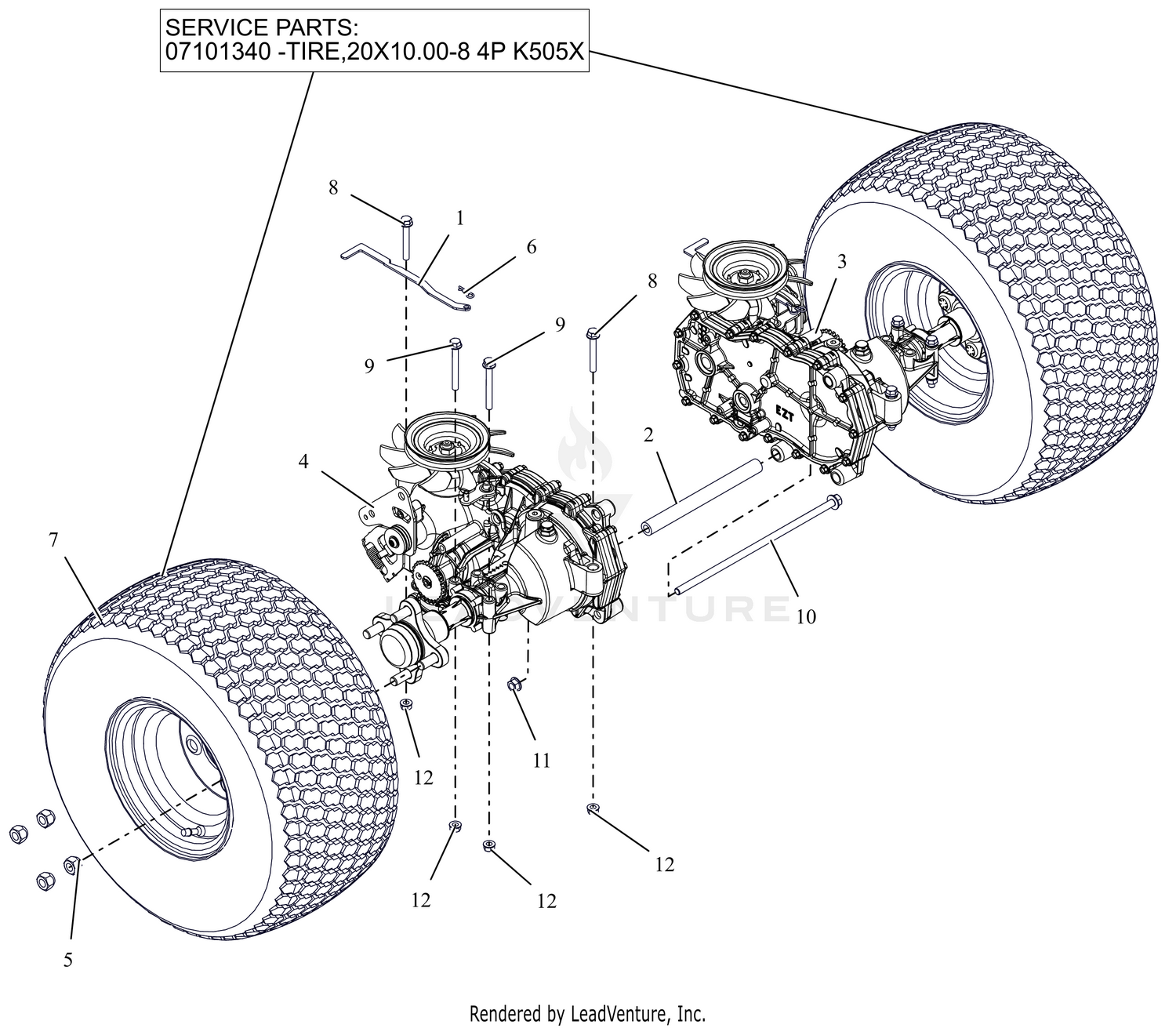

Rear Tires and Transaxles - 52" & 60"
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 04884151 | BRKT, DUMP VALVE Price: $13.45 |
| 2 | 05162451 | TUBE, TRANSAXLE BRACE 8.18LG Price: $20.45 |
| 5 | 06500926 | NUT, WHEEL .50-20 ZCC Price: $1.45 |
| 6 | 06700222 | PIN, HAIR #213 .08X1.19 ZCC Price: $0.45 |
| 7 | 07101333 | ASSM TIRE\WHEEL, 20 X 10 -8 Price: $129.95 |
| 8 | 05901910 | BLT,HEX-FLG .31-18X2.25 G5 ZCC Price: $2.45 |
| 9 | 05901911 | BLT,HEX-FLG .31-18X2.75 G5 ZCC Price: $2.45 |
| 10 | 05901902 | BLT,HEX-FLG .38-16X11.5 G5 ZCC Price: $10.45 |
| 11 | 06500901 | NUT-LK-CTR-FLG .375-16 GF ZCC Price: $0.95 |
