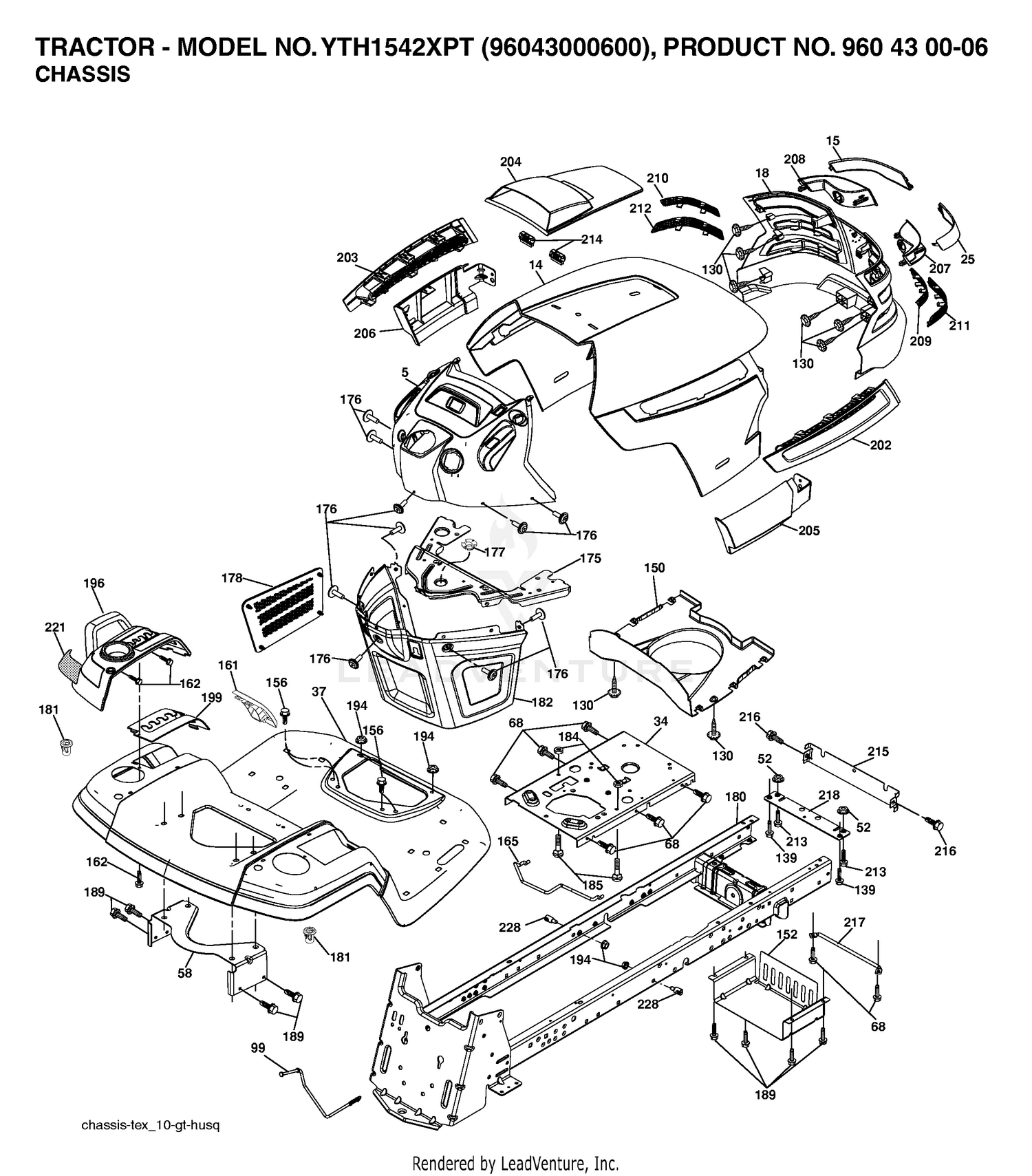

| Ref | Part Number | Description |
|---|
| 1 |
3256-62 |
WASHER-FLAT Price: $0.75 |
| 2 |
23-2610-01 |
LINK ASM This part replaces 23-2610. Price: $211.99 |
| 3 |
603773 |
LOCKNUT This part replaces 32153-2. Price: $2.09 |
| 4 |
47-3430-01 |
BRACKET-LIFT This part replaces 47-3430. Price: $159.43 |
| 5 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 5 |
532401823 |
DASH.HUSQ.UPR.ELE.SVMD Price: $49.99 |
| 6 |
5-2942 |
SHACKLE Price: $16.99 |
| 7 |
283-10 |
PIN-CLEVIS Price: $7.43 |
| 8 |
323-8 |
SCREW-HH Price: $1.20 |
| 9 |
47-3280-01 |
NO. 4 LIFT ARM ASM This part replaces 47-3280. Price: $1,463.33 |
| 10 |
8-0280 |
DISCONTINUED Price: Call Us |
| 11 |
3-4636 |
CHAIN Price: $22.51 |
| 12 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 14 |
125-5196 |
BUSHING This part replaces 3-0348. Price: $6.00 |
| 14 |
532442396 |
HOOD.ASM.HUSQVARNA.GT.TEX.ORAN This part replaces 532401824. Price: $149.99 |
| 15 |
3-0128 |
SHAFT Price: $75.98 |
| 15 |
532198907 |
LENS.LH.TEX.GT.HUSQ.CL Price: $22.99 |
| 16 |
5-1720 |
WASHER Price: $2.24 |
| 17 |
3253-5 |
WASHER-LOCK Price: $0.29 |
| 18 |
532408607 |
GRILL.ASM.HUSQ.TG/CRD.W/TRIM This part replaces 532400297. Price: $129.99 |
| 25 |
532198906 |
LENS.RH.TEX.GT.HUSQ.CL Price: $32.99 |
| 34 |
580910801 |
PLATE.ENGINE.WELDED.CHASSIS This part replaces 532196125. Price: $59.99 |
| 37 |
532441208 |
FENDER.PNT.TX.GT.CH/FW/DL.HUSQ This part replaces 532401825. Price: $219.99 |
| 58 |
532194314 |
BRKT.SUPPORT.FNDR/TANK Price: $17.99 |
| 68 |
596030701 |
Screws This part replaces 817490508. Price: $2.99 |
| 99 |
532406642 |
ROD.BYPASS.HYDRO.0510/0610.GT This part replaces 532198253. Price: $14.99 |
| 130 |
596321701 |
Screws This part replaces 532191611. Price: $2.99 |
| 139 |
532171873 |
BOLT, SHOULDER 5/16-18 Price: $4.99 |
| 150 |
532198514 |
AIR.DUCT.TEXGT.HUSQ.31 Price: $24.99 |
| 152 |
532196390 |
SHIELD.BROWNING.WTEXLT Price: $17.99 |
| 156 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99 |
| 161 |
532401801 |
FUEL WINDOW This part replaces 532401826. Price: $5.99 |
| 162 |
596134101 |
Screws This part replaces 532142432. Price: $2.99 |
| 165 |
532196826 |
SUPPORT.TANK.REAR.W/TEX Price: $22.99 |
| 175 |
590607702 |
PLATE.PNT.CROSSMEMBER.HUSQ/PRE This part replaces 532196304. Price: $32.99 |
| 176 |
532400776 |
SCREW.#10-24X5/8.RN.QU Price: $4.99 |
| 177 |
532195227 |
BUSHING, STEERING Price: $5.99 |
| 178 |
532199782 |
CARGO.ASM.NET.TXGT.W/C Price: $29.99 |
| 180 |
582033001 |
KITS.WELD.CHASSIS.195477X431 This part replaces 532401559. Price: $249.99 |
| 181 |
532403025 |
BUSHING.MNT.FEND.CRGO. Price: $4.99 |
| 182 |
532406859 |
DASH.LOWER.COMMON.12V.ADAPTOR This part replaces 532194787. Price: $84.99 |
| 184 |
532195780 |
SPACER.FENDER Price: $5.99 |
| 185 |
872110510 |
BOLT.CARRIAGE.5/16-18 Price: $4.99 |
| 189 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99 |
| 194 |
596135701 |
GSPW Nuts This part replaces 873900500. Price: $2.99 |
| 196 |
532400299 |
RP CONSOLE.ASM.DECKLFT.W/ Price: $69.99 |
| 199 |
532198259 |
PLATE.DECK.LIFT.HUSQVARNA.GT Price: $17.99 |
| 202 |
532403048 |
VENT.SIDE.HOOD.HUSQ.RH.GREY Price: $7.99 |
| 203 |
532403076 |
VENT.SIDE.HOOD.HUSQ.LH.GRAY Price: $7.99 |
| 204 |
532416615 |
VENT.ASM.TORPHD.HUSQGT.LOGO.CL This part replaces 532198904. Price: $16.99 |
| 205 |
532401709 |
SKIRT.HOOD.SIDE.HUSQ.RH.GREY Price: $6.99 |
| 207 |
532197198 |
BEZEL.RH.TEX.GT.HUSQ Price: $19.99 |
| 208 |
532197199 |
BEZEL.LH.TEX.GT.HUSQ Price: $17.99 |
| 209 |
532199130 |
INSERT.HEX.GRILL.HUSQ.GREY Price: $4.99 |
| 210 |
532199131 |
INSERT.HEX.GRILL.HUSQ. Price: $2.99 |
| 211 |
532199132 |
INSERT.HEX.GRILL.HUSQ. Price: $2.99 |
| 212 |
532199133 |
INSERT.HEX.GRILL.HUSQ. Price: $2.99 |
| 213 |
596030501 |
SCREW HEXAGON HEAD SCREW 5/16- This part replaces 874760512. Price: $3.99 |
| 214 |
532199145 |
CLIP.RETAINER.TINNER. Price: $2.99 |
| 215 |
532198043 |
COVER.CHASSIS.FRONT.WE Price: $4.99 |
| 216 |
817670508 |
SCREW, 5/16-18 X 1/2 Price: $7.99 |
| 217 |
532409167 |
ROD.PIVOT.HOOD This part replaces 532156524. Price: $9.99 |
| 218 |
532196395 |
X-PIECE.HOOD.STOP.NON/ Price: $6.99 |
| 221 |
532198909 |
REFLECTOR.LH.TEX GT HU Price: $14.99 |
| 228 |
593824001 |
STUD.W/"D"ANTI-ROTATION This part replaces 532195161. Price: $3.99 |
