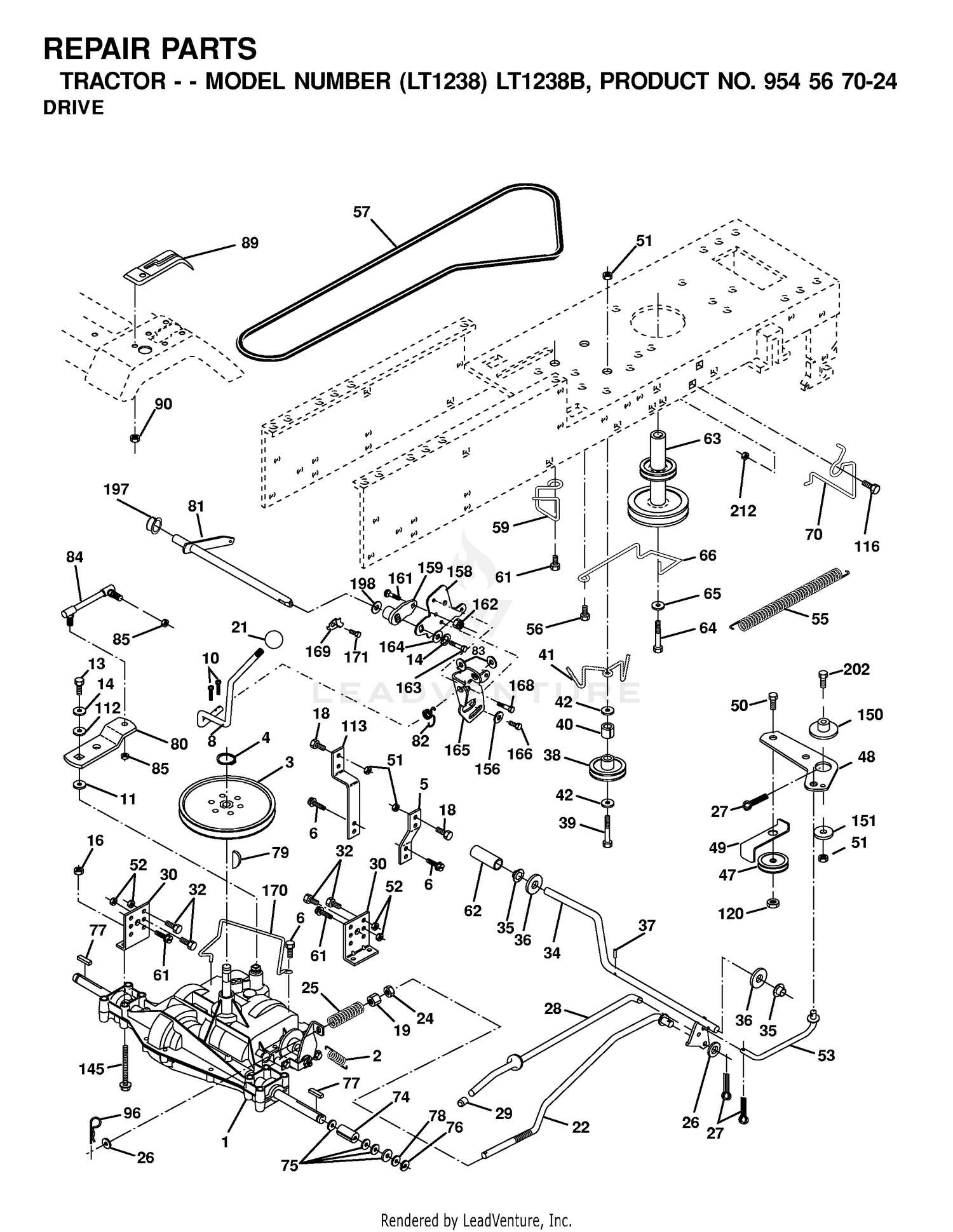

| Ref | Part Number | Description |
|---|
| 1 |
98-1459 |
DECAL Price: $3.93 |
| 2 |
3296-33 |
NUT-LOCK, NI Price: $2.39 |
| 2 |
532146682 |
SPRING,BRAKE RETURN Price: $5.99 |
| 3 |
3256-27 |
WASHER-FLAT Price: $0.47 |
| 3 |
532123666 |
PULLEY TRANS Price: $39.99 |
| 4 |
812000028 |
RETAINING RING LT Price: $1.99 |
| 4 |
98-1471 |
WHEEL-STEERING Price: $145.99 |
| 5 |
532121520 |
STRAP TORQUE Price: $6.99 |
| 6 |
106-3622 |
STEERING TILT COLUMN ASM Price: $715.85 |
| 6 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK This part replaces 817060512. Price: $4.99 |
| 7 |
105-2409 |
SCREW-HSH Price: $0.68 |
| 8 |
3274-7 |
SCREW-HSH Price: $0.91 |
| 8 |
532165619 |
ROD.SHIFT.FENDER.ADJ.LT.CRD Price: $19.99 |
| 9 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 10 |
3234-11 |
SCREW-HHF Price: $1.23 |
| 10 |
596029601 |
Pins This part replaces 876020416. Price: $1.99 |
| 11 |
115-4379-0P |
BRACE-COLUMN This part replaces 115-4379-01. Price: $26.14 |
| 11 |
532105701 |
WASH-SHFT PLT LT Price: $3.99 |
| 12 |
114-8119 |
STEERING VALVE ASM Price: $865.12 |
| 13 |
52-2891 |
BUSHING-FLANGED, NYLON Price: $3.19 |
| 13 |
596136601 |
Bolts This part replaces 874550412. Price: $1.99 |
| 14 |
340-2 |
FITTING-STRAIGHT Price: $11.43 |
| 14 |
596029801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810040400. Price: $2.99 |
| 15 |
105-4886 |
NUT-TINNERMAN This part replaces 112-4576. Price: $2.37 |
| 16 |
596040501 |
Hardware This part replaces 873800500. Price: $2.99 |
| 16 |
75-1470 |
PIN-PIVOT, BRAKE Price: $45.68 |
| 17 |
3256-69 |
WASHER-FLAT Price: $0.62 |
| 18 |
136-2889 |
PEDAL-BRAKE, RH This part replaces 119-0005. Price: $429.93 |
| 18 |
596564401 |
Bolts This part replaces 874780616. Price: $3.99 |
| 19 |
136-2887-03 |
PEDAL-BRAKE, LH This part replaces 115-4421-03. Price: $159.32 |
| 19 |
596322601 |
Nuts This part replaces 873800600. Price: $2.99 |
| 20 |
32121-16 |
PIN-SPRING Price: $0.41 |
| 21 |
283-58 |
PIN-CLEVIS Price: $3.87 |
| 21 |
532106933 |
KNOB T (1/2-HOLE) Price: $6.99 |
| 22 |
532130804 |
ROD BRAKE Price: $22.99 |
| 22 |
92-7530 |
CABLE-BRAKE, LH Price: $132.98 |
| 23 |
92-7529 |
CABLE-BRAKE, RH Price: $132.98 |
| 24 |
63-7880 |
PIN-LATCH, BRAKE Price: $6.04 |
| 24 |
873220600 |
NUT.HEX.3/8-16UNC This part replaces 873350600. Price: $4.99 |
| 25 |
32121-50 |
PIN-SPRING Price: $1.21 |
| 25 |
532151332 |
SPRING, BRAKE ROD This part replaces 532106888. Price: $4.99 |
| 26 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 26 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 819131316. Price: $2.99 |
| 27 |
3290-378 |
TIE-CABLE Price: $0.79 |
| 27 |
596029501 |
Pins This part replaces 876020412. Price: $2.99 |
| 28 |
532175765 |
ROD, PARKING BRAKE Price: $4.99 |
| 28 |
99-7963-03 |
PEDAL-PARK Price: $26.63 |
| 29 |
3234-13 |
SCREW-HHF Price: $0.77 |
| 29 |
532071673 |
PLUNGER CAP Price: $4.99 |
| 30 |
532130807 |
BRACKET TRANSAXLE This part replaces 532174973. Price: $3.99 |
| 30 |
99-7140 |
SPRING-TORSION Price: $21.98 |
| 31 |
115-4417 |
ROD-BRAKE PAWL Price: $43.81 |
| 32 |
119-0002 |
PAWL-BRAKE Price: $38.81 |
| 32 |
596030501 |
SCREW HEXAGON HEAD SCREW 5/16- This part replaces 874760512. Price: $3.99 |
| 33 |
120-1691 |
DETENT-BRAKE Price: $32.54 |
| 34 |
323-12 |
SCREW-HH Price: $1.14 |
| 34 |
532175578 |
SHAFT, FOOT PEDAL Price: $27.99 |
| 35 |
3296-2 |
NUT-LOCK, NI Price: $1.89 |
| 35 |
532120183 |
BEARING.NYLON Price: $5.99 |
| 36 |
3229-34 |
SCREW-CARR Price: $1.99 |
| 36 |
596933401 |
Washers This part replaces 819211616. Price: $2.99 |
| 37 |
100-1270 |
SWITCH-PROXIMITY Price: $96.57 |
| 37 |
532001572 |
PIN.ROLL.3/16 X 1" This part replaces 532124963. Price: $3.99 |
| 38 |
100-4872 |
PLATE-SWITCH, NEUTRAL Price: $11.84 |
| 38 |
532165936 |
PULLEY.FLAT Price: $22.99 |
| 39 |
596564405 |
Bolts This part replaces 874760648. Price: $2.99 |
| 40 |
532175461 |
SPACER, SPLIT Price: $4.99 |
| 41 |
322-3 |
SCREW-HH Price: $0.79 |
| 41 |
532175556 |
KEEPER, BELT IDLER Price: $6.99 |
| 42 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 42 |
596134901 |
GSPH This part replaces 819131312. Price: $2.99 |
| 43 |
256-236 |
BEARING-MOUNT, FLANGE Price: $27.99 |
| 44 |
32128-20 |
NUT-HF Price: $0.99 |
| 45 |
3272-5 |
PIN-COTTER Price: $1.39 |
| 46 |
117-4763 |
DECAL-BRAKE Price: $15.19 |
| 47 |
532139245 |
PULLEY IDLER This part replaces 532127783. Price: $32.99 |
| 48 |
532154407 |
BELLCRANK, CLUTCH Price: $5.99 |
| 49 |
531151801 |
SERVICE KIT RETAIN BELT RETAIN This part replaces 532123205. Price: $3.99 |
| 50 |
874930624 |
Bolt, Hex Head 3/8-16 UNC x 1-1/2 This part replaces 874760624. Price: $6.99 |
| 51 |
596322601 |
Nuts This part replaces 873680600. Price: $2.99 |
| 52 |
596040501 |
Hardware This part replaces 873680500. Price: $2.99 |
| 53 |
532199652 |
LINK.CLUTCH.7.66.2005 This part replaces 532105710. Price: $8.99 |
| 55 |
532105709 |
SPRING, RETURN LT Price: $9.99 |
| 56 |
817000616 |
SCREW 3/8-16X1 This part replaces 817060616. Price: $5.99 |
| 57 |
532138255 |
BELT, V GROUND DRIVE 95 25 This part replaces 532130801. Price: $34.99 |
| 59 |
532169691 |
KEEPER, BELT CENTER Price: $17.99 |
| 61 |
817000612 |
SCREW, 3/8-16X3/4 This part replaces 817060612. Price: $3.99 |
| 62 |
510089501 |
PAD, FOOT PEDAL This part replaces 532124872. Price: $4.99 |
| 63 |
532175410 |
ENGINE PULLEY Price: $64.99 |
| 64 |
501606501 |
BOLT.HEX.7/16-20X4.GR5.1.5BLUE This part replaces 871170764. Price: $2.99 |
| 65 |
596238901 |
Washers This part replaces 810040700. Price: $2.99 |
| 66 |
531151001 |
SERVICE KIT BELT KEEPER This part replaces 532154778. Price: $6.99 |
| 70 |
531165301 |
SERVICE KIT KEEPER BELT This part replaces 532134683. Price: $6.99 |
| 74 |
532137057 |
SPACER AXLE Price: $5.99 |
| 75 |
532121749 |
WASHER Price: $2.99 |
| 76 |
812000001 |
E-RING LT Price: $3.99 |
| 77 |
532123583 |
SQUARE KEY Price: $3.99 |
| 78 |
532121748 |
WASHER Price: $3.99 |
| 79 |
532125096 |
KEY STD (1373) DANA Price: $7.99 |
| 80 |
532131486 |
ARM SHIFT Price: $6.99 |
| 81 |
532165594 |
SHAFT ASM CROSS TAPERED Price: $32.99 |
| 82 |
532123782 |
SPRING,TORSION Price: $3.99 |
| 83 |
734117771 |
BUSHING This part replaces 819171216. Price: $3.99 |
| 84 |
597068801 |
Links This part replaces 532166228. Price: $34.99 |
| 89 |
532169372 |
SHIFT CONSOLE This part replaces 532177031. Price: $4.06 |
| 90 |
532124346 |
NUT.PUSH.3/16 Price: $6.99 |
| 96 |
532004497 |
RETAINER M This part replaces 532124788. Price: $4.99 |
| 112 |
596039801 |
Washers This part replaces 819091210. Price: $2.99 |
| 113 |
531150301 |
SERVICE KIT STRAP STRAP TORQUE This part replaces 532127285. Price: $6.99 |
| 116 |
596728201 |
Bolts This part replaces 872140608. Price: $3.99 |
| 120 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 145 |
596136501 |
Bolts This part replaces 874490540. Price: $3.99 |
| 150 |
532175456 |
SPACER, RETAINER Price: $4.99 |
| 151 |
596135501 |
Washers This part replaces 819133210. Price: $4.99 |
| 156 |
596218801 |
Washers This part replaces 532166002. Price: $1.99 |
| 158 |
532437458 |
BRACKET.SHIFT.MOUNT This part replaces 532165589. Price: $5.99 |
| 159 |
532444304 |
HUB.SHIFT This part replaces 532165494. Price: $5.99 |
| 161 |
872110407 |
BOLT.CARRIAGE.1/4-20 X 7/8 This part replaces 872140406. Price: $3.99 |
| 162 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873680400. Price: $3.99 |
| 163 |
596230901 |
Screws This part replaces 874780416. Price: $2.99 |
| 164 |
819091010 |
Washer 5/8 x .281 x 10 Ga. Price: $3.15 |
| 165 |
531149501 |
SERVICE KIT BRACKET BRACKET.PI This part replaces 532165623. Price: $4.99 |
| 166 |
532166880 |
SCREW Price: $4.99 |
| 168 |
532165492 |
BOLT.SHOULDER.5/16-18X Price: $8.99 |
| 169 |
532165581 |
PLATE FASTENING LT Price: $3.99 |
| 170 |
532173898 |
Keeper Belt T/A Price: Call Us |
| 171 |
596564001 |
Bolts This part replaces 817490608. Price: $2.99 |
| 197 |
532169613 |
NYLINER SNAP 5/8" ID Price: $4.99 |
| 198 |
532169593 |
WASHER.NYL.7/8IDX.105"HYD CR Price: $9.99 |
| 202 |
596136201 |
Bolts This part replaces 872110614. Price: $3.99 |
| 212 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 532145212. Price: $3.99 |
