| Ref | Part Number | Description |
|---|
| 2 |
43-0090 |
SCREW-HH Price: $8.05 |
| 2 |
73800500 |
NUT Price: Call Us |
| 3 |
48-8070 |
WASHER-LOCK Price: $0.47 |
| 3 |
72110506 |
SUB= 72270506 Price: Call Us |
| 4 |
7631J |
RUNNER-LH M Price: Call Us |
| 5 |
138457 |
BRKT.ASM.SW.44/50 Price: Call Us |
| 6 |
4939M |
SUB= 85902 Price: Call Us |
| 7 |
130832 |
SUB= 130833 Price: Call Us |
| 7 |
48-9590 |
WASHER-LOCK Price: $0.25 |
| 8 |
850857 |
BLADE BOLT Price: Call Us |
| 9 |
10030600 |
SUB= 10040600 Price: Call Us |
| 10 |
140296 |
WASHER.HARD.BLADE Price: Call Us |
| 12 |
129895 |
BEARING.BALL Price: Call Us |
| 12 |
3253-4 |
WASHER-LOCK This part replaces 42-9850. Price: $0.25 |
| 13 |
137553 |
SHAFT.ASM.W/BRNG Price: Call Us |
| 14 |
137152 |
HOUSING.MAND.44.V Price: Call Us |
| 15 |
110485X |
BEARING Price: Call Us |
| 15 |
58-3590 |
DOWEL Price: $5.50 |
| 16 |
136929 |
SUB= 140329 Price: Call Us |
| 16 |
92-1753 |
COUPLING-SPRING Price: $696.17 |
| 17 |
106735X |
ROD-HINGE T Price: Call Us |
| 17 |
98-1211-03 |
PLATE-ADAPTER, PUMP Price: $306.66 |
| 18 |
19111016 |
WASHER Price: Call Us |
| 19 |
105304X |
CAP-SLEEVE LT Price: Call Us |
| 19 |
3213-20 |
SCREW-HH Price: $1.76 |
| 20 |
123713X |
SPRING TORSION Price: Call Us |
| 20 |
3253-7 |
WASHER-LOCK Price: $0.27 |
| 21 |
137607 |
BRKT DEFLECTOR Price: Call Us |
| 22 |
110452X |
NUT PUSH M Price: Call Us |
| 22 |
98-7066-03 |
BRACKET-DAMPER Price: $48.17 |
| 23 |
109785X |
DEFLECTOR SHIELD Price: Call Us |
| 24 |
136321 |
RUNNER.RH Price: Call Us |
| 25 |
19111216 |
WASHER M Price: Call Us |
| 26 |
72110606 |
BOLT Price: Call Us |
| 27 |
19131316 |
WASHER Price: Call Us |
| 28 |
323-11 |
SCREW-HH Price: $1.08 |
| 29 |
73800600 |
NUT Price: Call Us |
| 29 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 30 |
138776 |
SUB= 157722 Price: Call Us |
| 31 |
137266 |
SUB= 139729 Price: Call Us |
| 31 |
32128-21 |
NUT-HF Price: $0.39 |
| 32 |
129861 |
SUB= 153535 Price: Call Us |
| 33 |
100-5633 |
SPACER-COUPLING Price: $149.21 |
| 33 |
129963 |
WASHER Price: Call Us |
| 34 |
72140610 |
BOLT.3/8-14X1.25 Price: Call Us |
| 34 |
98-3024 |
MOUNT-ENGINE Price: $103.88 |
| 35 |
121-9076 |
MOUNT-ENGINE This part replaces 83-1030. Price: $37.76 |
| 35 |
72110616 |
BOLT Price: Call Us |
| 36 |
72110608 |
BOLT D Price: Call Us |
| 36 |
98-1207-03 |
BRACKET-FRONT, LH Price: $74.95 |
| 37 |
137166 |
STIFFENER.ARM.IDL Price: Call Us |
| 37 |
98-1206-03 |
BRACKET-FRONT, RH Price: $74.95 |
| 38 |
140365 |
KEEPER BELT IDLER Price: Call Us |
| 38 |
98-1200-03 |
SPACER Price: $22.92 |
| 39 |
131494 |
FLAT IDLER PULLEY Price: Call Us |
| 39 |
98-1204-03 |
BRACKET-ENGINE, LH REAR Price: $49.06 |
| 40 |
98-1205-03 |
BRACKET-ENGINE, RH REAR Price: $46.61 |
| 41 |
32128-20 |
NUT-HF Price: $0.99 |
| 42 |
323-11 |
SCREW-HH Price: $1.08 |
| 42 |
72140506 |
BOLT Price: Call Us |
| 43 |
33116-070 |
SCREW-HH Price: $4.14 |
| 44 |
122052X |
SPACER RETAINER Price: Call Us |
| 44 |
32128-43 |
NUT-FLANGE Price: $0.94 |
| 45 |
48-9530 |
NUT Price: $1.78 |
| 45 |
73680600 |
SUB= 73690600 Price: Call Us |
| 46 |
74760628 |
BOLT Price: Call Us |
| 46 |
80-6990 |
WASHER-HARDENED Price: $3.06 |
| 47 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 48 |
137729 |
SCREW.1/4-20X5/8 Price: Call Us |
| 48 |
63-7400 |
WASHER-REBOUND Price: $1.70 |
| 49 |
136574 |
COVER.MANDREL.LH Price: Call Us |
| 49 |
87-5100 |
WASHER-SNUBBING Price: $3.46 |
| 50 |
137272 |
ARM.IDLER.PRIMARY Price: Call Us |
| 50 |
43-5940 |
WASHER-LOCK, SPRING Price: $0.70 |
| 51 |
98-1212 |
PIN-PLATE, PUMP Price: $38.00 |
| 52 |
100-5634 |
BOLT-SHOULDER Price: $9.16 |
| 52 |
139245 |
PULLEY.IDLER.VGRO Price: Call Us |
| 53 |
137789 |
SHIELD.IDLER.44.V Price: Call Us |
| 53 |
33114-020 |
SCREW-HH Price: $0.28 |
| 54 |
142686 |
BELT-V MOWER PRIM Price: Call Us |
| 54 |
70-8470 |
SCREW-HH Price: $1.76 |
| 55 |
131290 |
BELT-V.88.12.MW Price: Call Us |
| 55 |
43-3180 |
SCREW-HH Price: $18.78 |
| 56 |
43-3210 |
SCREW-HH Price: $4.27 |
| 57 |
136577 |
BAR.ASM.GUAGE.WHL Price: Call Us |
| 58 |
105455X |
WHEEL.GAGE.BLK.PL Price: Call Us |
| 59 |
4898H |
BOLT M Price: Call Us |
| 60 |
139031 |
PIN.CLEVIS Price: Call Us |
| 61 |
136573 |
BRACKET.GUAGE.WHL Price: Call Us |
| 62 |
133943 |
HARDENED WASHER Price: Call Us |
| 63 |
72110612 |
BOLT.3/8-16X1.50 Price: Call Us |
| 64 |
19121414 |
WASHER Price: Call Us |
| 67 |
73930600 |
LOCKNUT Price: Call Us |
| 68 |
140364 |
BRACKET PVT MCH Price: Call Us |
| 69 |
74760612 |
SUB= 74780612 Price: Call Us |
| 71 |
133944 |
HARD SMALL WASHER Price: Call Us |
| 72 |
140367 |
ARM BRAKE ASM Price: Call Us |
| 73 |
139888 |
BOLT.SHLD.5/16-18 Price: Call Us |
| 74 |
133940 |
SUB= 151785 Price: Call Us |
| 75 |
131340 |
SHOULDER BOLT Price: Call Us |
| 76 |
69180 |
LOCKNUT Price: Call Us |
| 77 |
133551 |
PIVOT ROD Price: Call Us |
| 78 |
4497H |
RETAINER M Price: Call Us |
| 79 |
140363 |
ROD CLUTCH SECON Price: Call Us |
| 80 |
143354 |
ROD.CLUTCH.PRIM44 Price: Call Us |
| 81 |
73350600 |
NUT Price: Call Us |
| 82 |
142028 |
TRUNION ADJ Price: Call Us |
| 83 |
133435 |
SPRING EXT Price: Call Us |
| 84 |
128903 |
SHOULDER BOLT Price: Call Us |
| 85 |
12000029 |
RING Price: Call Us |
| 86 |
121748X |
WASHER Price: Call Us |
| 87 |
127845 |
SPRING KEEPER Price: Call Us |
| 88 |
127847 |
CLUTCH ARM SECOND Price: Call Us |
| 89 |
140333 |
SUB= 140333X431 Price: Call Us |
| 90 |
128759 |
SUB= 918128759 Price: Call Us |
| 91 |
127498 |
BUSHING Price: Call Us |
| 93 |
102403X |
IDLER-FLAT T Price: Call Us |
| 94 |
139622 |
SUB= 918139622 Price: Call Us |
| 100 |
19171512 |
WASHER Price: Call Us |
| 101 |
133944 |
HARD SMALL WASHER Price: Call Us |

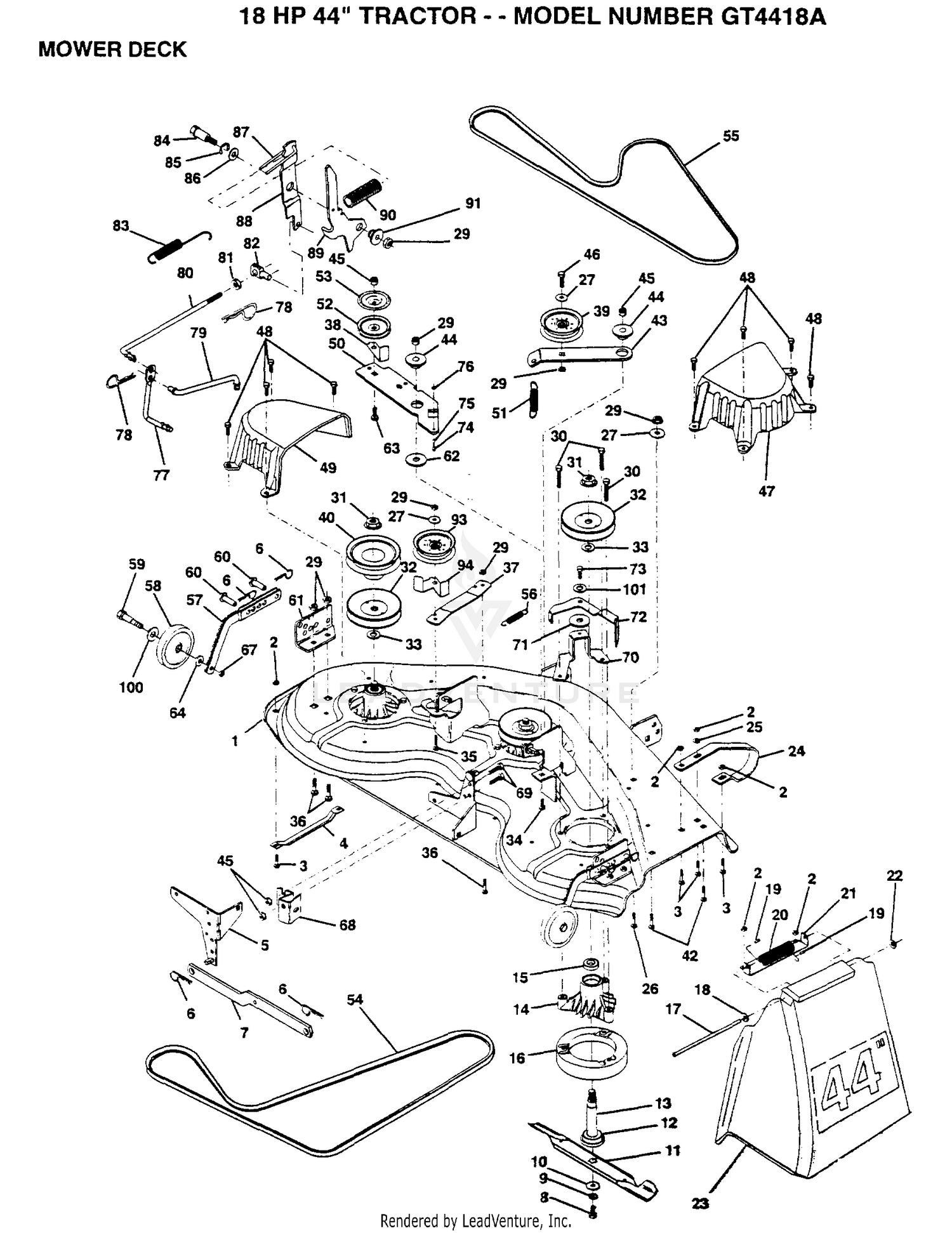

| 143419 |
DECK |
MOWER COMP Price: Call Us 143419 |
