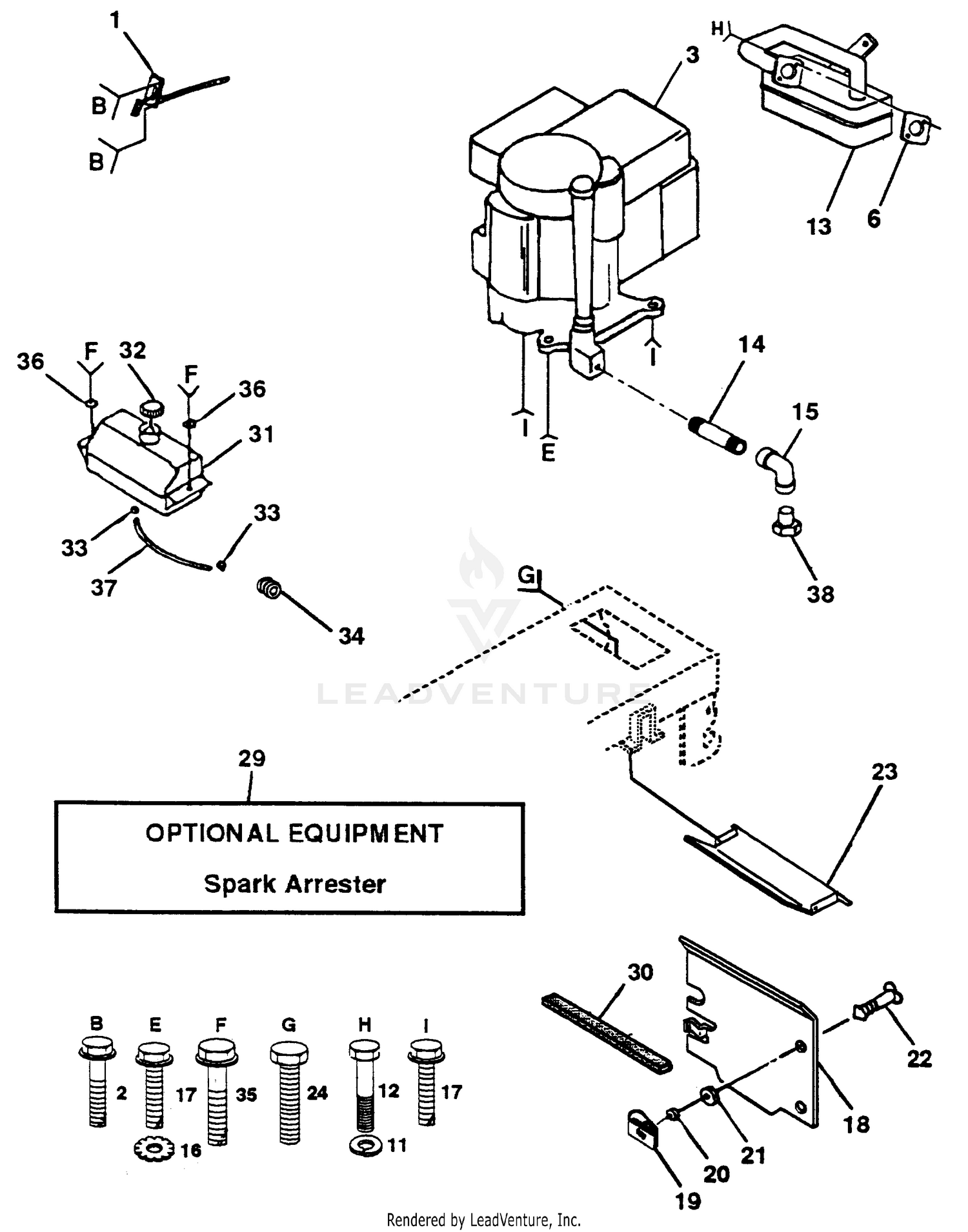

| Ref | Part Number | Description |
|---|
| 1 |
532170551 |
CONTROL.THROTTLE/CHOKE.BLACK This part replaces 532140310. Price: $22.99 |
| 2 |
817720410 |
Screw Hex Thd Cut 1/4-20x5/8 T (AYP part number) Price: $5.99 |
| 2 |
93-3007 |
SEAL-OIL Price: $4.46 |
| 3 |
109966 |
BEARING-BALL Price: $14.99 |
| 4 |
93-1251 |
SEAL-INNER Price: $9.50 |
| 5 |
93-1252 |
SEAL-OUTER Price: $18.76 |
| 6 |
32120-62 |
RING-RETAINING Price: $4.29 |
| 6 |
532272293 |
Gasket Eng 1 313 Id Tin Plated (AYP part number) This part replaces 532125593. Price: $7.99 |
| 7 |
253-70 |
SEAL-OIL Price: $6.52 |
| 11 |
810040500 |
Washer Lock Hvy Hlcl Spr 5/16 (AYP part number) Price: $2.99 |
| 12 |
532192334 |
SCREW.SOCKET HD.5/16-1 This part replaces 871070512. Price: $2.99 |
| 13 |
532137348 |
Muffler LT B&S 12/12.5/13HP (AYP part number) Price: $49.99 |
| 14 |
813280324 |
Nipple Pipe 3/8 Npt X 3" (AYP part number) Price: Call Us |
| 15 |
532428287 |
VALUE.OIL.DRAIN This part replaces 813200300. Price: $11.99 |
| 16 |
539990118 |
SLW 3/8 STD This part replaces 811050600. Price: $1.99 |
| 17 |
874760620 |
BOLT This part replaces 817490620. Price: $3.99 |
| 18 |
532136718 |
Shield Heat Lt (AYP part number) Price: $3.79 |
| 19 |
532105839 |
Receptacle 1/4 turn (AYP part number) Price: $3.99 |
| 20 |
532105838 |
Retainer 1/4 turn (AYP part number) Price: $3.99 |
| 21 |
819091016 |
Washer 9/32 x 5/8 x 16 Ga. (AYP part number) Price: $2.99 |
| 22 |
532123650 |
Stud 1/4 turn Price: $3.99 |
| 23 |
532128953 |
Shield Heat Browning LT/YT (AYP part number) Price: $3.08 |
| 24 |
817021008 |
Screw Tap Hex #10-24unc X 1/2 (AYP part number) Price: $1.99 |
| 29 |
532137180 |
Kit Spark Arrestor (Flat Scrn) (AYP part number) Price: $129.99 |
| 30 |
532127057 |
Pinch Weld Hood Black Price: $2.38 |
| 31 |
532140280 |
Tank Fuel Front 2 00 (AYP part number) Price: $54.99 |
| 32 |
532140527 |
Cap Asm Fuel W/sym Vented (AYP part number) Price: $6.99 |
| 33 |
532123487 |
Clamp Hose Black (AYP part number) Price: $3.99 |
| 34 |
532124028 |
Bushing Snap Nyl Blk Fuel Line Price: $3.99 |
| 35 |
874760412 |
BOLT.HEX.1/4.X.3/4.DICHROMATE This part replaces 817490412. Price: $3.99 |
| 36 |
819091416 |
Washer 9/32 X 7/8 X 16 Ga (AYP part number) Price: $3.99 |
