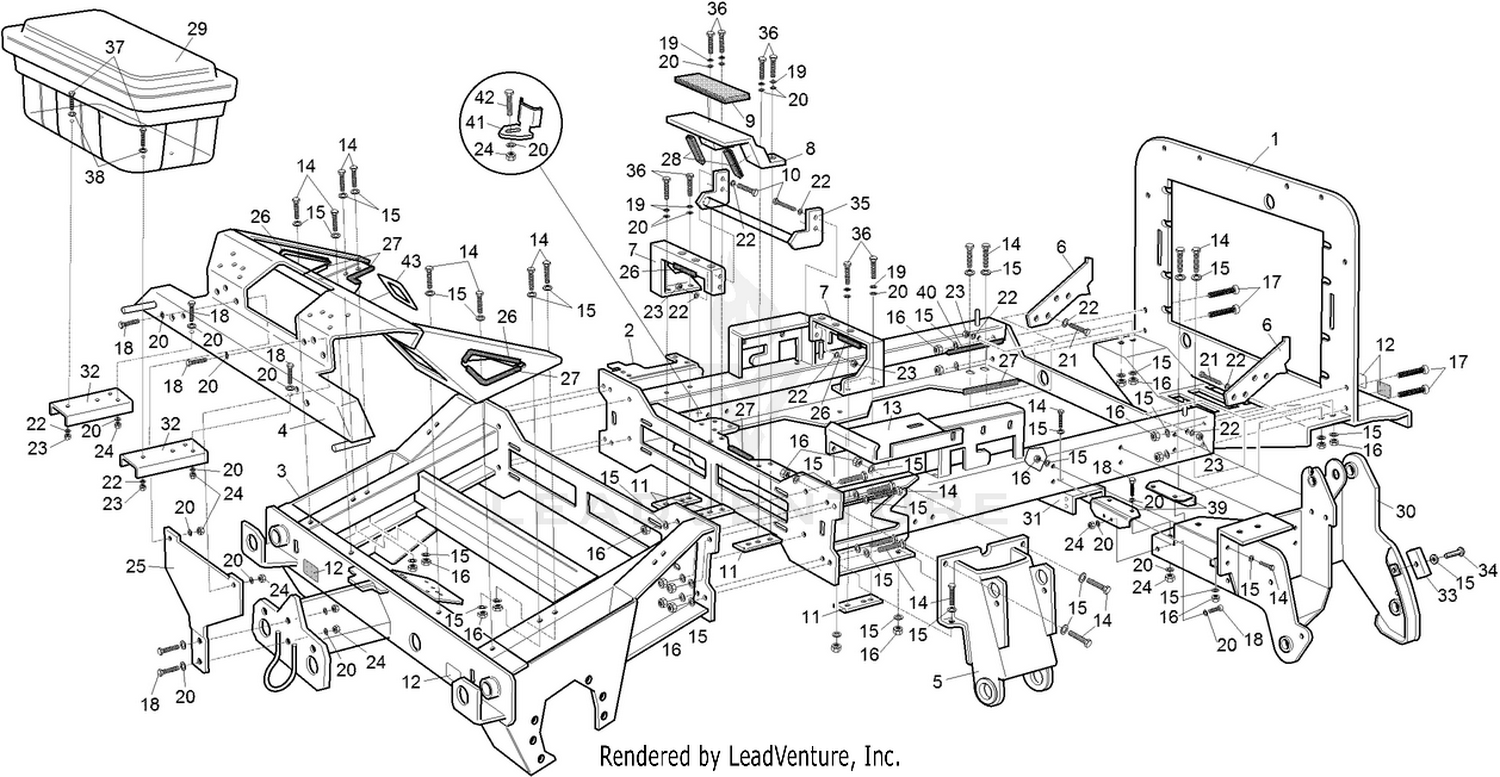

| Ref | Part Number | Description |
|---|
| 1 |
994230W |
REAR CHASSIS W/A ## Price: $1,192.20 |
| 2 |
953100W |
CHASSIS CENTRE W/A Price: $1,730.91 |
| 3 |
924195W |
CHASSIS FORWARD W/A Price: $2,483.27 |
| 4 |
922130W |
ROLLER SUPPORT NARROW W/A Price: $1,154.15 |
| 5 |
910440W |
CENTRE HEAD BRACKET W/A Price: $507.71 |
| 6 |
953114W |
PLATE BULKHEAD STAY Price: $46.10 |
| 7 |
924170W |
BRACKET PLATFORM SUPPORT W/A Price: $164.66 |
| 8 |
910493W |
BRACKET SEAT SUPPORT FRONT Price: $97.33 |
| 9 |
910944 |
RUBBER SEAT SUPPORT FRONT Price: $15.20 |
| 10 |
09369 |
SETSCREW M8 X 30 Price: $1.40 |
| 11 |
924141 |
Plate - Securing Price: $25.85 |
| 12 |
70-13-072 |
DECAL - JACKING POINT Price: $4.88 |
| 13 |
910447W |
PLATE BATTERY TRAY Price: $69.70 |
| 14 |
ZDH1L035U |
HEX.HD.SET SCW.M12*35 This part replaces 09551. Price: $1.38 |
| 15 |
HY09485 |
WASHER M12 PLAIN Price: $1.40 |
| 16 |
ZNN1L000U |
HEX.NUT NYLOC M12 Price: $1.40 |
| 17 |
09419 |
SCREW SOC HD BUTTON M12*35 Price: $3.84 |
| 18 |
09392 |
SETSCREW M10 X 30 HEX HD Price: $1.31 |
| 19 |
09480 |
WASHER M10 SC SPRING Price: $1.36 |
| 20 |
09479 |
WASHER M10 X 21 X 1.45 THK (P) Price: $1.39 |
| 21 |
03162 |
STEEL BOLT Price: $1.39 |
| 22 |
09475 |
WASHER M8 X 17 X 1.6 ZN & PASS Price: $1.40 |
| 23 |
09441 |
NUT M8 NYL INSERT T TYPE Price: $1.39 |
| 24 |
09447 |
NUT M10 X 1.5 NYL INS Price: $1.40 |
| 25 |
924150W |
PLATE CHASSIS BRACE Price: $62.44 |
| 26 |
50-08-001 |
MOULDING Price: $9.43 |
| 27 |
50-08-001 |
MOULDING Price: $9.43 |
| 28 |
50-08-001 |
MOULDING Price: $9.43 |
| 29 |
950892 |
Toolbox Storage Price: $162.96 |
| 30 |
953125W |
ARM PIVOT LH W/A Price: $1,355.62 |
| 31 |
953130W |
ARM PIVOT RH W/A ## Price: $1,355.62 |
| 32 |
953163W |
BRACKET TOOLBOX Price: $47.23 |
| 33 |
950348 |
BAR BRAKE RELEASE POCLAIN Price: $36.26 |
| 34 |
ZDH1L040U |
HEX.HD.SET SCW M12*40 Price: $1.31 |
| 35 |
924187W |
BAR LATCHING W/A Price: $77.72 |
| 36 |
09395 |
SETSCREW M10 X 25 ZN & PASS Price: $1.40 |
| 37 |
ZHS1H025U |
SCREW SOC HD BUTTON M8*25 Price: $1.38 |
| 38 |
09270 |
WASHER PLAIN 5/16 X 1 X 16G Price: $1.39 |
| 39 |
953136W |
BRACKET JOINT WING ARM Price: $30.94 |
| 40 |
50-08-001 |
MOULDING Price: $9.43 |
| 41 |
953116 |
BRACKET HOSE GUIDE Price: $1.43 |
| 42 |
15-11-003 |
CARR.BOLT(8.8)M10*25 HT Price: $1.42 |
| 43 |
50-08-001 |
MOULDING Price: $9.43 |
| 44 |
924423 |
RIVET Price: $2.51 |
| 45 |
950832 |
DECAL Price: $5.78 |
