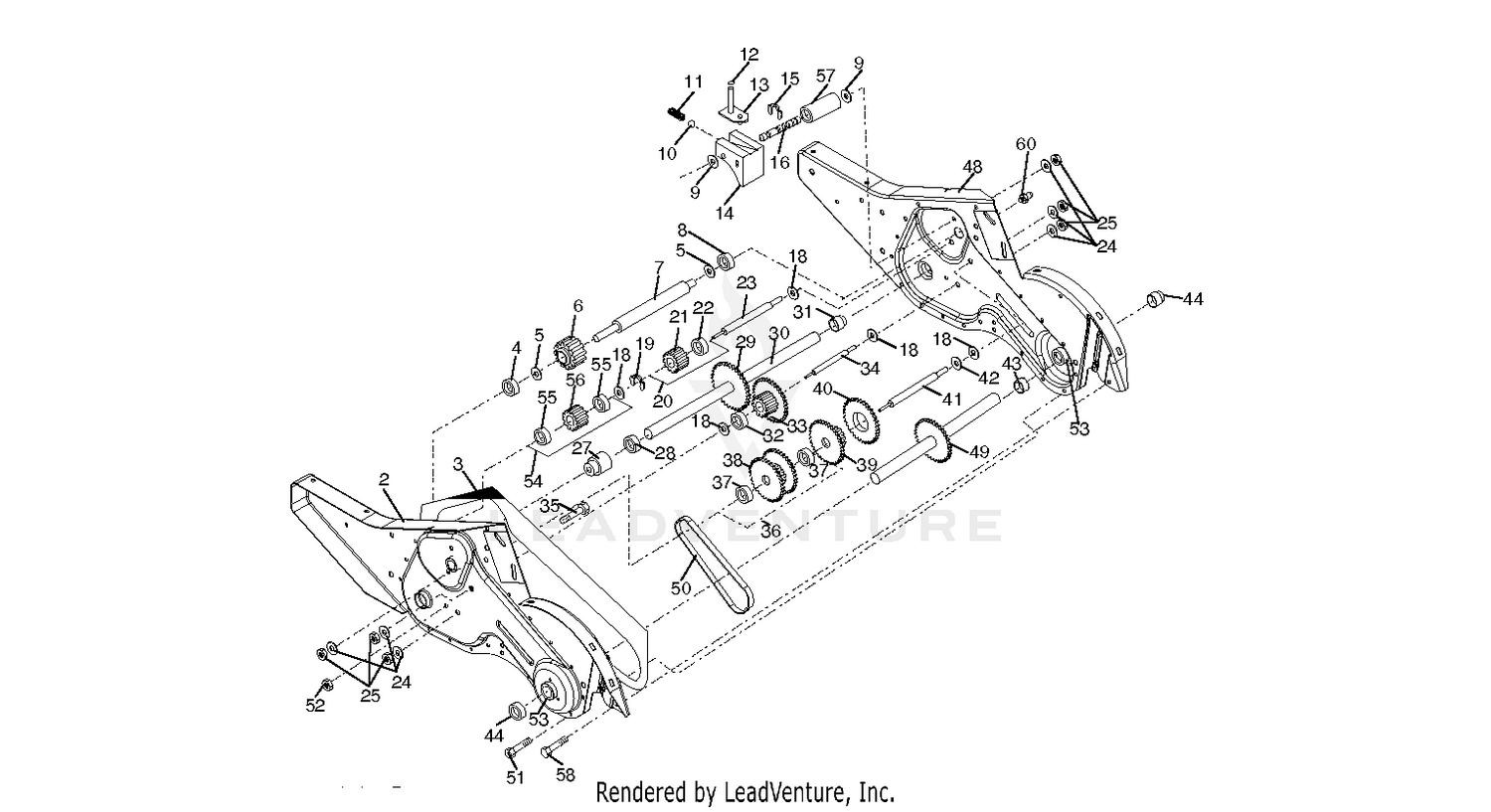

| Ref | Part Number | Description |
|---|
| 1 |
76-8160-03 |
SUPPORT-GEAR, STEERING This part replaces 76-8160. Price: $25.24 |
| 2 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 3 |
323-6 |
SCREW-HH Price: $0.66 |
| 3 |
532431022 |
GASKET.GEARCASE.CRT/DRT.TILLER This part replaces 532161963. Price: $17.99 |
| 4 |
532005020 |
NEEDLE BRNG LT Price: $14.99 |
| 4 |
74-3670 |
DISCONTINUED Price: Call Us |
| 5 |
532001370 |
THRUST WASHER Price: $4.99 |
| 5 |
82-4950 |
PLUNGER-SPRING Price: $145.10 |
| 6 |
586196201 |
PINION INPUT DRT TILLER This part replaces 532161520. Price: $39.99 |
| 6 |
74-5770 |
DISCONTINUED Price: Call Us |
| 7 |
32121-10 |
PIN-ROLL Price: $6.99 |
| 7 |
532161518 |
SHAFT.INPUT.D.9TEETH Price: $64.99 |
| 8 |
532004895 |
BEARING Price: $9.99 |
| 8 |
74-5790 |
SHAFT-PIVOT Price: $75.26 |
| 9 |
32121-123 |
PIN-ROLL Price: $0.81 |
| 9 |
532154467 |
WASHER, SEAL (2 2) Price: $3.99 |
| 10 |
3296-49 |
NUT-LOCK, NI Price: $4.93 |
| 10 |
532100482 |
KIT.STEEL BALL(12 BALLS) This part replaces 532007392. Price: $4.99 |
| 11 |
3220-3 |
NUT-HJ Price: $0.28 |
| 11 |
532100371 |
SPRING-SHIFT CRT Price: $4.99 |
| 12 |
121-4600 |
NUT-HEX This part replaces 3296-59. Price: $0.78 |
| 12 |
532106160 |
O-RING TI Price: $3.99 |
| 13 |
2411-36 |
BEARING-END, ROD Price: $32.13 |
| 13 |
532142145 |
BRACKET ASM.SHIFT.CRT Price: $17.99 |
| 14 |
532008353 |
SHIFT FORK TI Price: $22.99 |
| 14 |
76-8720 |
PANEL - TOWER Price: $86.81 |
| 15 |
233-17 |
KNOB Price: $10.58 |
| 15 |
812000039 |
KLIP RING Price: $4.99 |
| 16 |
532161516 |
SHAFT.SHIFT.DRT Price: $7.99 |
| 16 |
72-0130 |
DISCONTINUED Price: Call Us |
| 17 |
107-2561 |
NUT-HEX This part replaces 47-6990. Price: $14.65 |
| 18 |
532004358 |
WASHER Price: $3.99 |
| 18 |
68-8080 |
WHEEL-STEERING Price: $273.84 |
| 19 |
32144-4 |
SCREW-HWH Price: $1.29 |
| 19 |
812000040 |
KLIP RING Price: $4.99 |
| 20 |
76-9450 |
DISCONTINUED Price: Call Us |
| 21 |
532102115 |
GEAR-REV IDLR CRT Price: $22.99 |
| 21 |
77-4260 |
LINK-SHIFT Price: $48.90 |
| 22 |
323-8 |
SCREW-HH Price: $1.20 |
| 22 |
532006803 |
NEEDLE BEARING TI Price: $7.99 |
| 23 |
32144-11 |
SCREW-THD ROLL, HWH Price: $6.99 |
| 23 |
532161527 |
SHAFT.IDLER.REVERSE.CRT Price: $19.99 |
| 24 |
596238901 |
Washers This part replaces 810040700. Price: $2.99 |
| 24 |
69-1560 |
DISCONTINUED Price: Call Us |
| 25 |
2410-64 |
PLUG-BUTTON Price: $0.74 |
| 25 |
873610700 |
NUT.ASF.HEX.7/16 Price: $5.99 |
| 26 |
32121-6 |
PIN-ROLL, SLOTTED Price: $0.28 |
| 27 |
532431219 |
BEARING.GROUND.DRIVE This part replaces 523143009. Price: $8.99 |
| 27 |
76-8850 |
DISCONTINUED Price: Call Us |
| 28 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 28 |
532106390 |
SPACER Price: $4.99 |
| 29 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 29 |
532102134 |
CHAIN CRT Price: $9.99 |
| 30 |
3272-5 |
PIN-COTTER Price: $1.39 |
| 30 |
532150737 |
GROUND SHAFT ASS'Y Price: $54.99 |
| 31 |
532143008 |
BEARING, SHAFT RH CRT Price: $4.99 |
| 31 |
95-1821 |
SPRING-COMPRESSION This part replaces 3-3251. Price: $6.71 |
| 32 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 32 |
532106388 |
SPACER TI Price: $5.99 |
| 33 |
532102121 |
SPRCKT 8 GEAR CRT Price: $37.99 |
| 33 |
76-9050 |
ROD-BRAKE, PARK Price: $33.40 |
| 34 |
532102112 |
SHAFT.SECONDARY.REDUCTION.CRT Price: $37.99 |
| 34 |
63-7900-03 |
RACK This part replaces 63-7900. Price: $144.55 |
| 35 |
532102101 |
SCRW WHIZ LOK CRT Price: $3.99 |
| 35 |
76-8140-03 |
BRACKET-GEAR, STEERING This part replaces 76-8140. Price: $70.53 |
| 36 |
31-0390 |
DISC-FRICTION Price: $11.25 |
| 37 |
20-9500 |
WASHER Price: $3.53 |
| 37 |
585695501 |
NEEDLE BEARING This part replaces 532100413. Price: $7.99 |
| 38 |
532161524 |
GEAR & SPROCKET.ASM.WBEARIN This part replaces 532161525. Price: $139.99 |
| 38 |
76-8340 |
SHAFT-PIVOT, STEERING Price: $89.60 |
| 39 |
532161526 |
GEAR.CLUSTER.DRT.TILLER Price: $37.99 |
| 39 |
76-8150-03 |
SUPPORT-SHAFT, STEERING This part replaces 76-8150. Price: $25.87 |
| 40 |
532105346 |
GEAR TI Price: $39.99 |
| 40 |
74-3660 |
DISCONTINUED Price: Call Us |
| 41 |
237-79 |
O-RING Price: $5.46 |
| 41 |
532161523 |
SHAFT.REDUCTION.FIRST.DRT Price: $19.99 |
| 42 |
340-138 |
FITTING-HYD, 45 DEG Price: $31.15 |
| 42 |
532004220 |
BRNG RACE T Price: $4.99 |
| 43 |
237-22 |
O-RING Price: $2.43 |
| 43 |
532106146 |
SPACER TI Price: $24.99 |
| 44 |
532155236 |
SEAL ASM, OIL Price: $5.99 |
| 44 |
76-9570 |
HYD HOSE ASM Price: $49.70 |
| 45 |
76-9560 |
HOSE ASSY Price: $58.41 |
| 46 |
59-6430 |
DISCONTINUED Price: Call Us |
| 47 |
86-5570 |
HOSE ASM Price: $151.86 |
| 48 |
76-9530 |
HOSE ASSY Price: $106.02 |
| 49 |
10-8110 |
WASHER-THRUST Price: $1.09 |
| 49 |
532432058 |
KIT.TINE.SHAFT.SERVICE This part replaces 532132688. Price: $89.99 |
| 50 |
2412-74 |
R-CLAMP Price: $2.37 |
| 50 |
532106147 |
CHAIN.TILLER Price: $49.99 |
| 51 |
3234-17 |
SCREW-HHF Price: $0.72 |
| 51 |
596437001 |
Screws This part replaces 817720408. Price: $2.99 |
| 52 |
32128-20 |
NUT-HF Price: $0.99 |
| 52 |
596436301 |
Nuts This part replaces 873220500. Price: $2.99 |
| 53 |
3290-378 |
TIE-CABLE Price: $0.79 |
| 53 |
532165140 |
KIT.BEARING.TILLER. Price: $24.99 |
| 54 |
76-8960 |
DISCONTINUED Price: Call Us |
| 55 |
3334-945 |
TIE-CABLE This part replaces 3333-975. Price: $0.43 |
| 55 |
580755701 |
DRAWN CUP ROLLER BEARING W/CAG This part replaces 532003400. Price: $7.99 |
| 56 |
532161528 |
GEAR.ASM.DRT.TILLER This part replaces 532161529. Price: $49.99 |
| 57 |
532165889 |
SPACER.SPLIT Price: $6.99 |
| 58 |
532179520 |
BOLT SHOULDER 1/4-20 UNC X.875 Price: $3.99 |
| 60 |
532183226 |
FITTING.GREASE.TAPERED Price: $4.99 |
