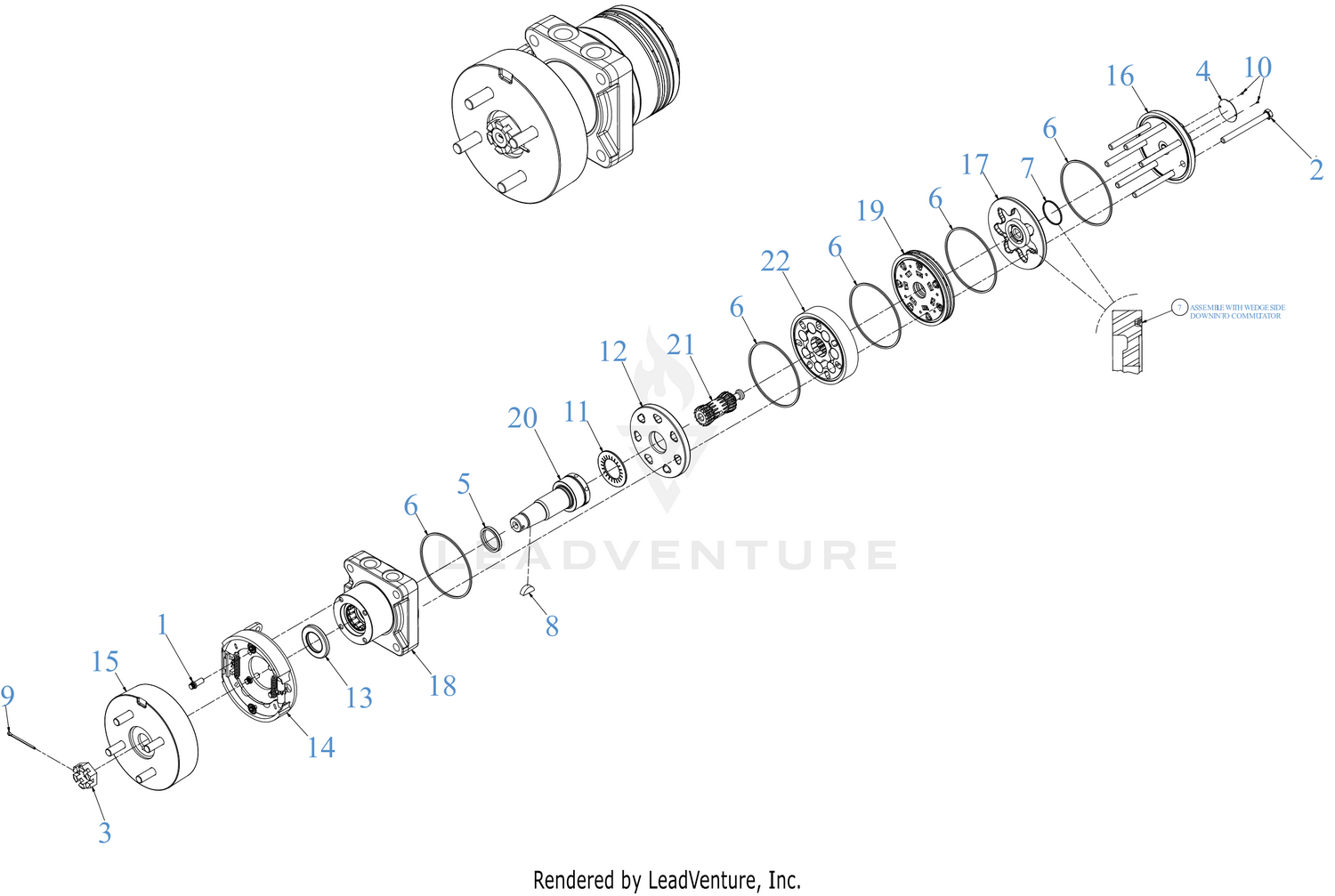

Hydro Motor (RH)
Parts (22)
| Ref | Part Number | Description |
|---|---|---|
| 1 | PH-020207P | SCREW-CAP (QTY 4) Price: $9.29 |
| 2 | PH-021390 | SPECIAL BOLT 3/8-24 UNF-A2 Price: $10.14 |
| 3 | PH-025132 | HEX NUT 1-20 UNEF-28 Price: $30.81 |
| 4 | PH-028545 | IDENTIFICATION TAG Price: $4.92 |
| 5 | PH-032818 | SHAFT SEAL Price: $139.10 |
| 6 | PH-032819 | SEAL RING (BUNA) Price: $4.01 |
| 7 | PH-032861 | COMMUTATOR SEAL Price: $12.64 |
| 8 | PH-038016 | WOODRUFF KEY Price: $8.03 |
| 9 | PH-040204 | COTTER PIN Price: $4.55 |
| 10 | PH-040250 | RIVET Price: $2.45 |
| 11 | PH-068024 | THRUST BEARING Price: $12.91 |
| 12 | PH-477342 | WEAR PLATE Price: $235.36 |
| 13 | PH-478035 | DIRT & WATER SEAL Price: $12.87 |
| 14 | PH-490167RL | BRAKE ASSEMBLY Price: $380.70 |
| 15 | PH-490218 | DRUM-4 BOLT BRAKE Price: $361.33 |
| 16 | PH-ME016000 | END COVER Price: $172.84 |
| 17 | PH-ME018000A1 | COMMUTATOR ASSEMBLY Price: $156.76 |
| 18 | PH-TL012001A1 | HOUSING ASSEMBLY Price: $703.67 |
| 19 | PH-TL015001 | MANIFOLD Price: $251.77 |
| 20 | PH-TL019000 | COUPLING SHAFT Price: $355.49 |
| 21 | PH-TL153001 | DRIVE LINK Price: $160.28 |
| 22 | PH-TL157003 | ROTOR ASSEMBLY Price: $491.49 |
