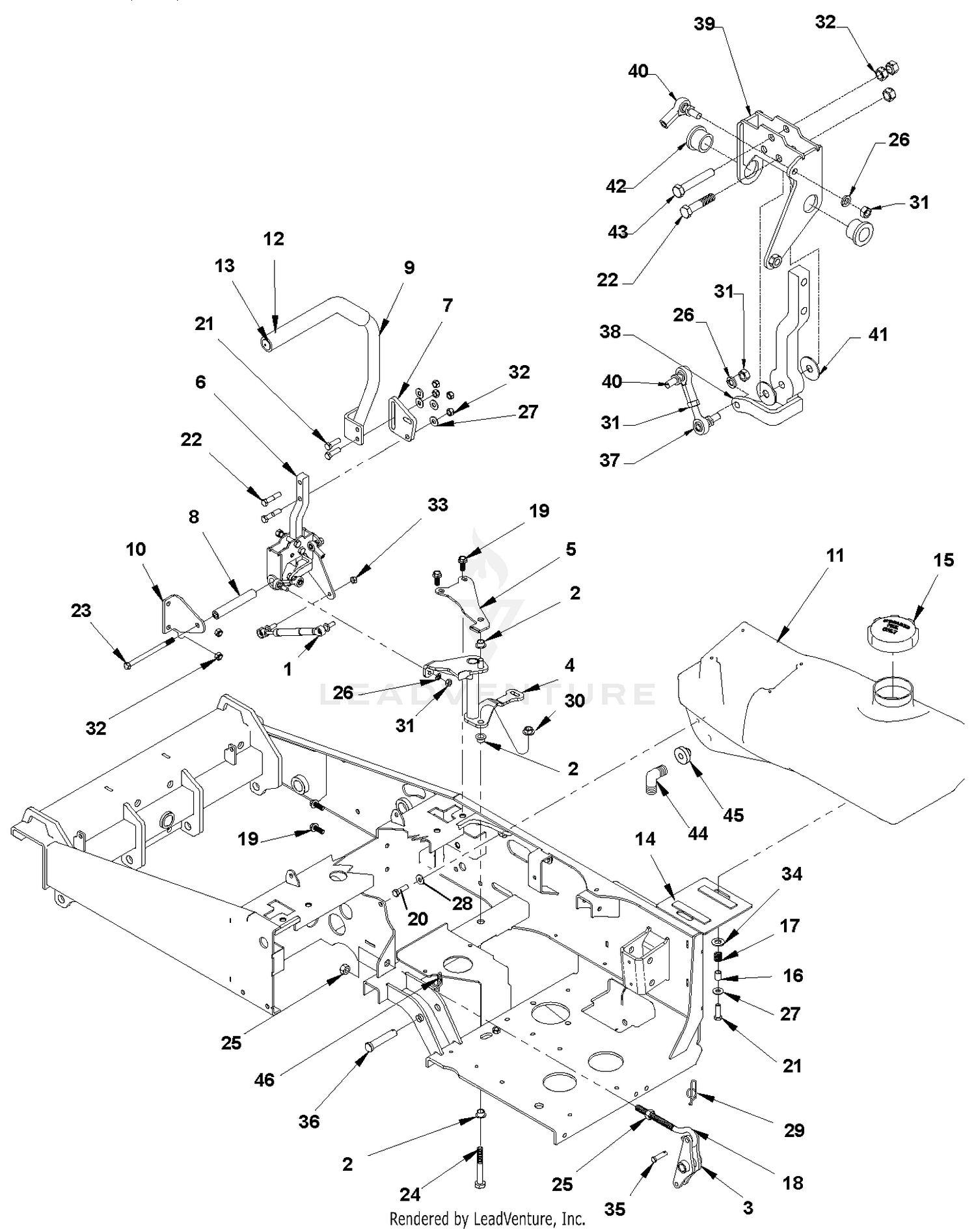

| Ref | Part Number | Description |
|---|
| 1 |
00180231 |
DAMPNER, STEERING CONTROL Price: $90.60 |
| 2 |
00180354 |
BRG, FLG .502X.629X.421 Price: $5.45 |
| 3 |
03814551 |
WLDT, SPRING PIVOT Price: $43.45 |
| 4 |
03833751 |
WLDT, RH PARK BRAKE CONTROL Price: $85.45 |
| 5 |
03818951 |
EAR, RH BRAKE PIVOT Price: $18.60 |
| 6 |
03816151 |
WLDT, RH STEERING BAR Price: $134.95 |
| 7 |
03818251 |
PLATE, HANDLE HEIGHT Price: $19.80 |
| 8 |
00180543 |
TUBE, RD .750 X .179 X 4.69 Y Price: $39.95 |
| 9 |
00181349 |
ASSY, RH STEERING HANDLE Price: $31.20 |
| 10 |
03819200 |
PLATE, BENT Price: Call Us |
| 12 |
00180617 |
FOAM GRIP Price: $21.95 |
| 13 |
00180639 |
PLUG, 7/8" END Price: $3.10 |
| 14 |
00180897 |
FOAM, .125 X .750 X 4.00 Price: $1.80 |
| 15 |
00181251 |
CAP, FUEL S/O Price: $21.45 |
| 16 |
03821551 |
SPACER, GAS TANK ATTACHMENT Price: $23.95 |
| 17 |
00181027 |
SPRING, COM .660 X .067 X .625 Price: $5.45 |
| 18 |
00250356 |
EYEBOLT, 1/2-13X1.00X4.50 FL Y Price: $12.95 |
| 19 |
00960044 |
BOLT, 3/8-16X1.00 FGH 8 Y Price: $2.45 |
| 20 |
05901702 |
BLT,HEX .38-16X.75 G5 ZCC This part replaces 00960045. Price: $1.45 |
| 21 |
05901724 |
BLT- HEX .38-16X1.25 G5 ZCC This part replaces 00960047. Price: $1.45 |
| 22 |
05901809 |
BLT, HEX .38-16X1.75 G5 ZCC This part replaces 00960049. Price: $1.45 |
| 23 |
00960063 |
BOLT, 3/8-16X5.50 HEX 5 Y Price: Call Us |
| 24 |
00960119 |
BOLT, 1/2-13X2.75 HEX 5 Y Price: Call Us |
| 25 |
00960504 |
NUT, 1/2-13 STD HEX GR5 Y Price: Call Us |
| 26 |
AA960601 |
WASHER, .313 MED SPRG LOCK Y Price: Call Us |
| 27 |
06401023 |
WSHR-FLT .375X.875X.083 ZCC This part replaces 00960701. Price: $1.45 |
| 28 |
06401008 |
WSHR-FLT .438X1.00X.083 ZCC This part replaces 00960702. Price: $1.45 |
| 29 |
00967353 |
RING, RUE .375 X .054 X 1.254 Price: $2.45 |
| 30 |
AA964000 |
LOCKNUT, 1/2-13 CROWN Y Price: Call Us |
| 31 |
00964003 |
NUT, 5/16-24 STD HEX GR5 Y Price: Call Us |
| 32 |
00964022 |
LOCKNUT, 3/8-16 CROWN Y Price: Call Us |
| 33 |
00964047 |
LOCKNUT, M8-1.25 CROWN Y Price: Call Us |
| 34 |
06401015 |
WSHR,FLT .531X1.062X.095 ZCC This part replaces 00964505. Price: $0.95 |
| 35 |
00967013 |
PIN, CVS .375X1.38X1.14 Y Price: Call Us |
| 36 |
00967249 |
PIN, CVS .625X3.00X2.77 Y Price: Call Us |
| 37 |
00180249 |
BALL JOINT, RH 5/16 MALE W/STD Price: $14.95 |
| 38 |
03816151 |
WLDT, RH STEERING BAR Price: $134.95 |
| 39 |
03816251 |
WLDT, HANDLE CONTROL RH Price: $55.00 |
| 40 |
00180606 |
BALL JOINT, RH 5/16 FMAL W/STD Price: $29.95 |
| 41 |
00180961 |
WASHER, .400X1.27X.062 NYLON Price: $1.95 |
| 42 |
00252126 |
BUSHING, .750 X 1.00 X .750 Price: $10.95 |
| 43 |
05901640 |
BLT,HEX .38-16X2.25 G5 ZCC This part replaces 00960051. Price: $3.95 |
| 44 |
00191605 |
FTG, 90 1/4HOSE X 1/2HOSE S/O Price: $9.45 |
| 45 |
00387300 |
GROMMET, DAPCO VITON #12240 This part replaces 00181208. Price: $8.45 |
| 00181350 |
ASSY, |
LH STEERING HANDLE Price: $24.05 00181350 |
| 03816351 |
WLDT, |
LH STEERING BAR Price: $140.95 03816351 |
| 03816451 |
WLDT, |
HANDLE CONTROL LH Price: $31.20 03816451 |
| 03819051 |
EAR, |
LH BRAKE PIVOT Price: $30.95 03819051 |
| 03833951 |
WLDT, |
LH PARK BRAKE CONTROL Price: $85.45 03833951 |
