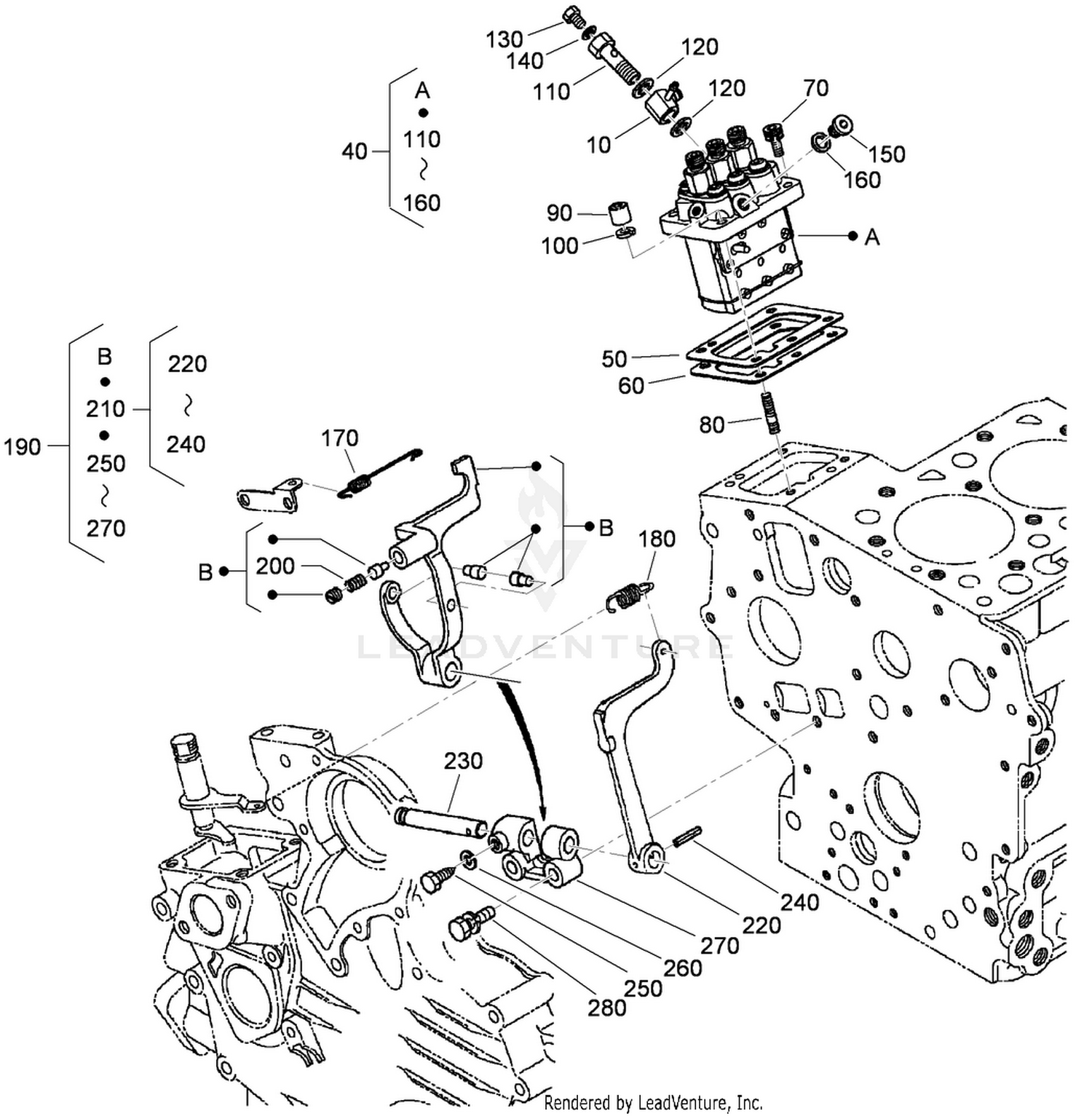

| Ref | Part Number | Description |
|---|
| 10 |
110-3764 |
JOINT Price: $18.56 |
| 40 |
110-3765 |
INJECTION PUMP ASM Price: $4,629.99 |
| 50 |
115-3045 |
SHIM-INJECTION (0.175MM) Price: $10.31 |
| 50 |
98-9456 |
SHIM-INJECTION (0.20MM) Price: $7.29 |
| 50 |
98-9457 |
SHIM-INJECTION (0.25MM) Price: $8.40 |
| 60 |
115-3046 |
SHIM-INJECTION (0.35MM) Price: $10.62 |
| 60 |
98-9458 |
SHIM-INJECTION (0.30MM) Price: $12.10 |
| 70 |
117-7564 |
BOLT-HEX SOC HD Price: $2.53 |
| 80 |
98-9438 |
STUD Price: $1.33 |
| 90 |
98-9440 |
NUT-CAP Price: $18.34 |
| 100 |
98-7699 |
WASHER-SPRING Price: $0.44 |
| 110 |
100-1896 |
SCREW-HOLLOW Price: $29.21 |
| 120 |
98-9445 |
GASKET Price: $1.84 |
| 130 |
98-9430 |
SCREW Price: $19.45 |
| 140 |
98-9446 |
GASKET Price: $2.50 |
| 150 |
98-9466 |
PLUG Price: $12.54 |
| 160 |
98-9451 |
GASKET Price: $1.92 |
| 170 |
110-3766 |
SPRING-START Price: $13.90 |
| 180 |
110-3767 |
SPRING-GOVERNOR Price: $6.53 |
| 190 |
121-2409 |
FORK LEVER ASM Price: $159.26 |
| 200 |
121-2410 |
SPRING Price: $2.52 |
| 210 |
100-1905 |
FORK LEVER ASM Price: $26.86 |
| 220 |
100-1907 |
LEVER-FORK Price: $24.32 |
| 230 |
100-1908 |
SHAFT-LEVER, FORK Price: $13.83 |
| 240 |
100-1751 |
PIN-SPRING Price: $1.31 |
| 250 |
100-1845 |
BOLT Price: $7.62 |
| 260 |
127-0408 |
WASHER-LOCK, SPRING This part replaces 100-2204. Price: $0.44 |
| 270 |
100-1909 |
HOLDER-LEVER, FORK Price: $11.26 |
