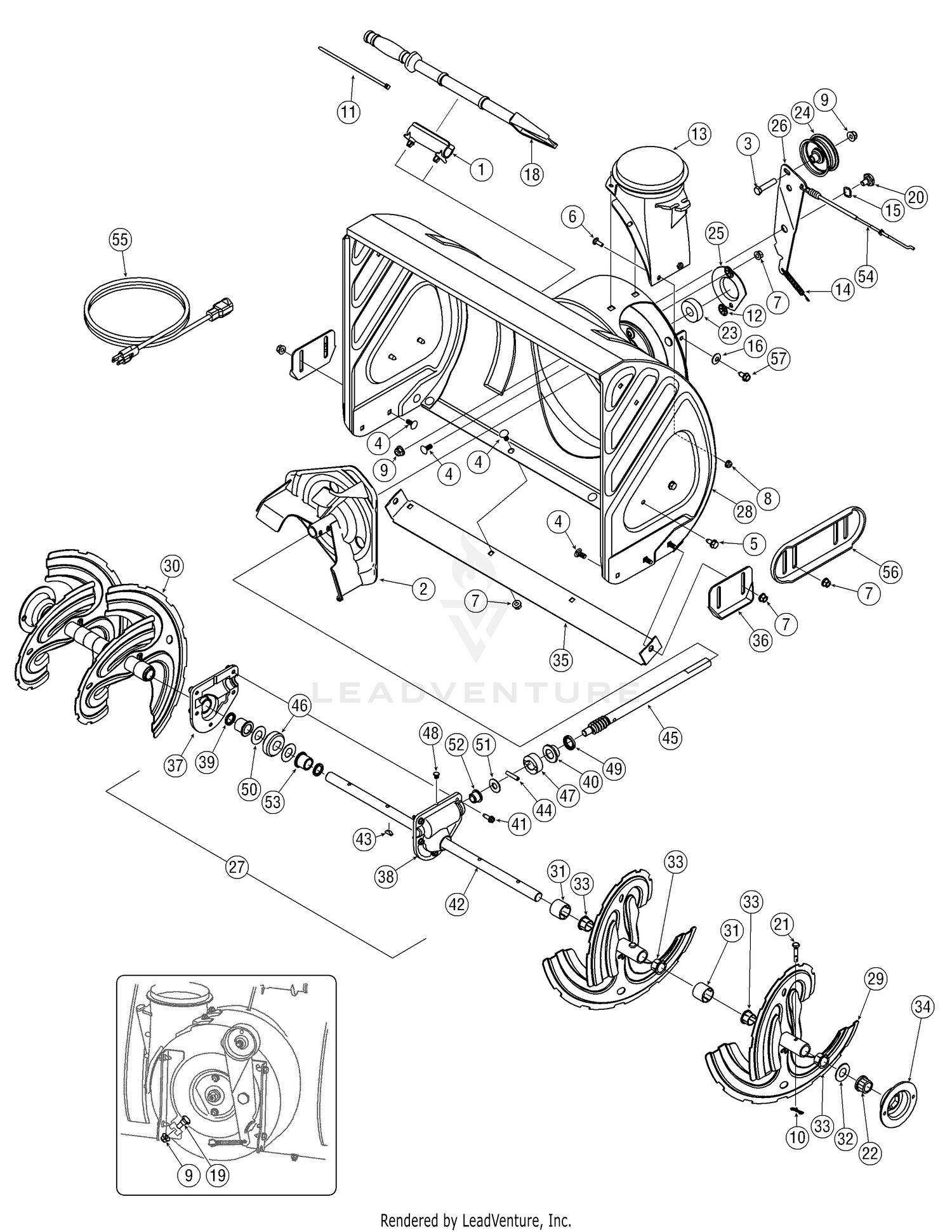

| Ref | Part Number | Description |
|---|
| 1 |
731-11421 |
Cleanout Tool Mount This part replaces 731-2635. Price: $9.83 |
| 2 |
684-04057C-0637 |
IMPELLER ASSEMBLY-12" This part replaces 684-04057. Price: $64.81 |
| 3 |
710-0347 |
Hex Screw, 3/8-16, 1.75, Gr5 Price: $4.39 |
| 4 |
710-0451 |
Bolt, Carriage, 5/16-18, .750 Gr1 Price: $3.53 |
| 5 |
710-0604A |
Screw, 5/16-18, 0.625 Price: $3.96 |
| 6 |
710-0703 |
Screw, Carriage, 1/4-20, .750, Gr5 Price: $3.66 |
| 7 |
712-04063 |
Nut, Flange Lock, 5/16-18, Nylon Price: $3.56 |
| 8 |
712-04064 |
Nut, Flange Lock, 1/4-20, Nylon Price: $3.64 |
| 9 |
712-04065 |
Nut, Flange Lock, 3/8-16, Nylon Price: $3.68 |
| 10 |
714-04040 |
Cotter Pin, Bow-tie Price: $1.28 |
| 11 |
725-0157 |
Cable, Tie, 3/16 x .05 x 7.4 Price: $3.46 |
| 12 |
726-04012 |
Nut, Push-on, .25 Dia Price: $6.20 |
| 13 |
731-04705D |
CHUTE ADAPTER This part replaces 731-04705. Price: $23.30 |
| 14 |
932-0611 |
Extension Spring, .38 OD x 3.6 This part replaces 732-0611. Price: $6.92 |
| 15 |
736-0174 |
Washer, Wave, .625 x .885 x .015 Price: $5.94 |
| 16 |
736-0242 |
Washer, Bell, .340 x .872 x .060 Price: $3.75 |
| 17 |
736-0463 |
Washer, Flat, .25 x .630 x .0515 Price: $3.91 |
| 18 |
931-2643 |
Chute Cleanout Tool This part replaces 731-2643. Price: $16.68 |
| 19 |
738-0143 |
SHOULDER SCREW .498 DIA x .340 Price: $3.93 |
| 20 |
738-0281 |
Screw, Shoulder, .625 x .17, 3/8-16 Price: $9.16 |
| 21 |
738-04124A |
Shear Pin, .25 x 1.50 Price: $1.56 |
| 22 |
941-0245 |
Hex Flange Bearing, .75 ID This part replaces 741-0245. Price: $9.07 |
| 23 |
941-0309 |
Flange Ball Bearing, .75 x 1.85 This part replaces 741-0309. Price: $69.59 |
| 24 |
756-04224 |
Idler Pulley, 2.75 OD This part replaces 756-0981B. Price: $24.80 |
| 25 |
790-00075B |
BEARING HOUSING 1.85 ID This part replaces 790-00075. Price: $5.66 |
| 26 |
790-00080D |
AUGER IDLER BRACKET This part replaces 790-00080A. Price: $25.44 |
| 27 |
918-04172C |
Gearbox Assembly, 26" This part replaces 918-04192. Price: $381.46 |
| 29 |
684-04107A |
AUGER SPIRAL (LH) This part replaces 684-04107. Price: $63.62 |
| 30 |
684-04108A |
AUGER SPIRAL (RH) This part replaces 684-04108. Price: $67.28 |
| 32 |
736-0188 |
Washer, Flat, .76 x 1.49 x .06 Price: $3.75 |
| 33 |
741-0493C |
FLANGE BUSHING This part replaces 741-0493A. Price: $3.86 |
| 34 |
790-00087A |
Bearing Housing Price: $18.74 |
| 35 |
790-00120 |
Shave Plate, 23.66 (24" auger) Price: $27.34 |
| 35 |
790-00121 |
Shave Plate, 25.66 (26" auger) Price: $28.47 |
| 36 |
731-05984A |
Skid Shoe, Deluxe Polymer Price: $26.92 |
| 36 |
731-06439 |
SLIDE SHOE (POLYMER SMALL) Price: $18.94 |
| 36 |
790-00141 |
Skid Shoe, Stainless Steel Price: $38.33 |
| 37 |
918-0123A |
REDUCER HOUSING ASSEMBLY (RH) This part replaces 719-0319. Price: $46.04 |
| 38 |
918-0124A |
REDUCER HOUSING ASSEMBLY (LH) This part replaces 719-0320. Price: $45.91 |
| 39 |
721-0327 |
Seal, Oil, .750 ID Price: $6.10 |
| 40 |
741-0662 |
Bearing, Flange, .75 x 1.0 x .59 Price: $9.52 |
| 41 |
710-0642 |
Screw, Self-tapping, 1/4-20, 0.750 Price: $4.05 |
| 42 |
711-06144 |
Auger Axle, 26" This part replaces 711-04284. Price: $72.65 |
| 43 |
914-0161 |
KEY 3/16 x 5/8 H This part replaces 714-0161. Price: $3.82 |
| 44 |
715-04021 |
Pin, Dowel, .25 OD x 1.2 Price: $3.68 |
| 45 |
917-04126 |
WORM SHAFT This part replaces 717-04126. Price: $69.83 |
| 46 |
917-04861 |
WORM GEAR 20T This part replaces 717-0528A. Price: $37.82 |
| 47 |
718-04071 |
Collar, Thrust Price: $6.73 |
| 48 |
721-0325 |
Plug, 1/4 x .437 Price: $3.82 |
| 49 |
721-0327 |
Seal, Oil, .75 x 1 x .131 Price: $6.10 |
| 50 |
736-0351 |
Washer, Flat, .760 ID x 1.5 OD Price: $3.93 |
| 51 |
736-3084 |
Washer, Flat, .51 x 1.12 Price: $4.39 |
| 52 |
741-0663 |
Bearing, Flange, .75 x 1.0 x .925 Price: $8.86 |
| 53 |
741-0661B |
FLANGE BEARING This part replaces 741-0661A. Price: $9.78 |
| 54 |
946-04230B |
AUGER DRIVE CABLE 47.48" This part replaces 746-04230. Price: $21.53 |
| 56 |
790-00091 |
Slide Shoe, Deluxe Price: $25.06 |
