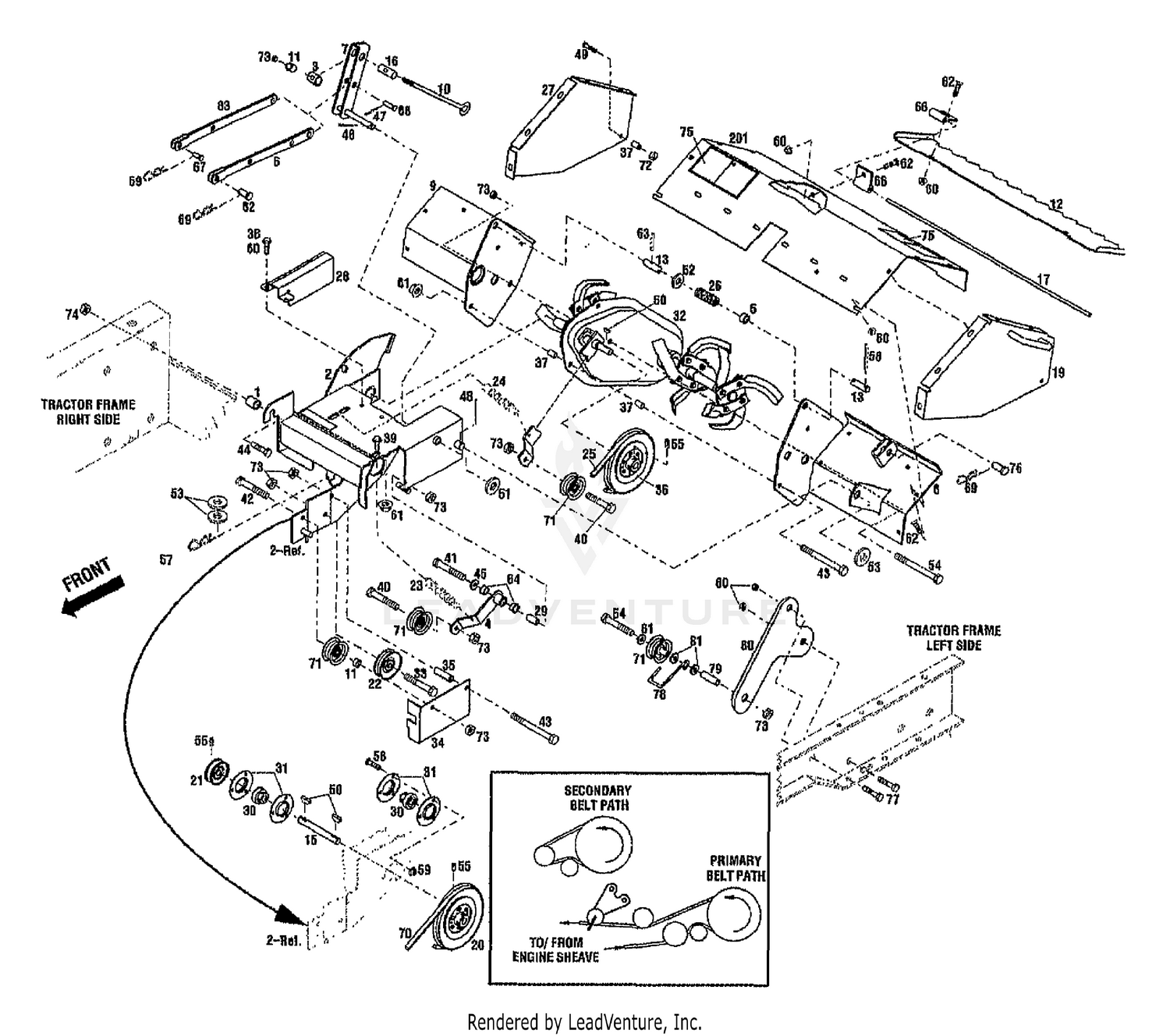

| Ref | Part Number | Description |
|---|
| 1 |
1766328 |
SPACER Not Available Price: |
| 2 |
1773420001 |
HITCH Not Available Price: |
| 3 |
1766430 |
SPACER-1.0 Not Available Price: |
| 5 |
1768780 |
SPACER-.875X.63X.5 Price: Call Us |
| 7 |
1766443 |
ARM-PIVOT Price: Call Us |
| 9 |
1986345001 |
ASSM-RIGHT SUPPORT Not Available Price: |
| 10 |
1766453 |
PIVOT ROD Not Available Price: |
| 11 |
1985164 |
SPACER-.625X.406X.563 Not Available Price: |
| 12 |
1766456001 |
SHIELD-TINE HOOD Price: Call Us |
| 13 |
1766458 |
PIN Not Available Price: |
| 15 |
1766476 |
SHAFT-DRIV Not Available Price: |
| 16 |
1766477 |
PIN Not Available Price: |
| 17 |
1766478 |
HINGE PIN Not Available Price: |
| 19 |
1767805001 |
COVER-TINE HOOD LH Price: Call Us |
| 20 |
1767832 |
PULLEY 6 D Not Available Price: |
| 21 |
1767833 |
PULLEY 2.5 Not Available Price: |
| 22 |
1767834 |
PULLEY-IDL Not Available Price: |
| 23 |
1767843 |
EXTENSION SPRING Not Available Price: |
| 24 |
1767844 |
EXTENSION SPRING Not Available Price: |
| 25 |
1767848 |
BELT Not Available Price: |
| 26 |
1767851 |
COMPRESSION SPRING Not Available Price: |
| 26 |
1767928001 |
BELT COVER Not Available Price: |
| 27 |
1767872001 |
COVER-TINE HOOD RH Not Available Price: |
| 29 |
1767932 |
SPACER-.62 Not Available Price: |
| 30 |
1767942 |
BALL BEARING Not Available Price: |
| 31 |
1767944 |
BEARING-FLANGE Price: Call Us |
| 33 |
710-0347 |
Hex Cap Screw 3/8-16 x 1.75 This part replaces 1100086. Price: $4.39 |
| 34 |
1773421001 |
SHIELD-DEB Not Available Price: |
| 35 |
1773426 |
TUBE-SPACE Not Available Price: |
| 36 |
1985139 |
PULLEY-7" DIA Not Available Price: |
| 37 |
1985165 |
SPACER-.375X.812 Not Available Price: |
| 38 |
1100044 |
SCR-HHC 5/16-18X.75 GR 5 ZP Price: $3.76 |
| 39 |
1186345 |
SCREW Not Available Price: |
| 40 |
710-0520 |
SCREW 3/8-16 x 1.50 This part replaces 1100047. Price: $3.93 |
| 41 |
710-3144 |
Hex Cap Screw, 3/8-16 x 2.00 This part replaces 1100048. Price: $4.02 |
| 42 |
710-3011 |
Screw 3/8-16 X 2.25 Gr5 This part replaces 1100049. Price: $6.49 |
| 43 |
1100770 |
SCR-HH 3/8 Not Available Price: |
| 44 |
710-3181 |
Hex Cap Screw, 1/2-13 x 1.5 This part replaces 1100064. Price: $6.01 |
| 45 |
736-3052 |
Flat Washer, .406 x 1.0 x .105 This part replaces 1100256. Price: $4.02 |
| 47 |
714-0115 |
Pin, Cotter, 1/8 x 1.00 This part replaces 1100350. Price: $3.48 |
| 48 |
1100351 |
COTTER PIN Not Available Price: |
| 49 |
710-0805A |
SCREW 5/16-18 x 1.5 LG This part replaces 1100799. Price: $3.75 |
| 51 |
736-0326 |
Flat Washer,.510 x 1.00 This part replaces 1107385. Price: $3.89 |
| 52 |
736-0237 |
Washer, Flat, .65 x 1.25 x .075 This part replaces 1107386. Price: $3.90 |
| 53 |
1107387 |
WASHER-1.5 Not Available Price: |
| 54 |
1186450 |
BOLT 3/8-16X5 Price: Call Us |
| 57 |
1185590 |
PIN-HITCH .149DIA Price: $4.26 |
| 58 |
710-0703 |
SCREW 1/4-20 x .75 GR5 This part replaces 1186069. Price: $3.66 |
| 59 |
1186389 |
NUT-HF/LK 1/4-20 ZP Price: $3.05 |
| 60 |
712-04054 |
NUT-HFLK 5/16-18 ZP This part replaces 1186391. Price: $3.95 |
| 61 |
1186393 |
NUT-HFLK 3/8-16 ZP Price: $2.63 |
| 62 |
710-0451 |
CARRIAGE BOLT 5/16-18 x .75 This part replaces 1186469. Price: $3.53 |
| 63 |
915-0249 |
Roll Pin This part replaces 1187961. Price: $5.94 |
| 64 |
1714299 |
FLANGE BUSHING Not Available Price: |
| 66 |
1718196 |
HOOD HINGE Not Available Price: |
| 67 |
1708125 |
CLEVIS PIN .5X1.06 Not Available Price: |
| 68 |
1722409 |
CLEVIS PIN .5X1.75 ZP Not Available Price: |
| 69 |
1723478 |
HITCH PIN Not Available Price: |
| 70 |
1726723 |
V-BELT Not Available Price: |
| 71 |
1729440 |
PULLEY-IDL Not Available Price: |
| 72 |
1732499 |
NUT-TOP/LK 5/16-18 ZP Price: $3.49 |
| 73 |
712-3000 |
Hex Lock Nut, 3/8-16 This part replaces 1733398. Price: $3.90 |
| 74 |
712-3022 |
Hex Lock Nut, 1/2-13 This part replaces 1734514. Price: $3.61 |
| 75 |
1739687 |
DECAL-OPEI CAUTION Price: $6.36 |
| 76 |
711-0654 |
Pin, Clevis, 5/8 Dia X 1.34 Lg This part replaces 1752309. Price: $14.11 |
| 77 |
710-04043 |
SCREW 5/16-18 This part replaces 1186329. Price: $3.96 |
| 78 |
1772534 |
GUIDE-BELT Price: Call Us |
| 79 |
1773416 |
IDLER SPACER Not Available Price: |
| 80 |
1773415001 |
SUPPORT-IDLER Not Available Price: |
| 81 |
736-3050 |
Washer, Plain (flat) 3/8, S.A.E. This part replaces 1107383. Price: $3.90 |
| 201 |
1768767 |
HOOD W/DECALS Not Available Price: |
