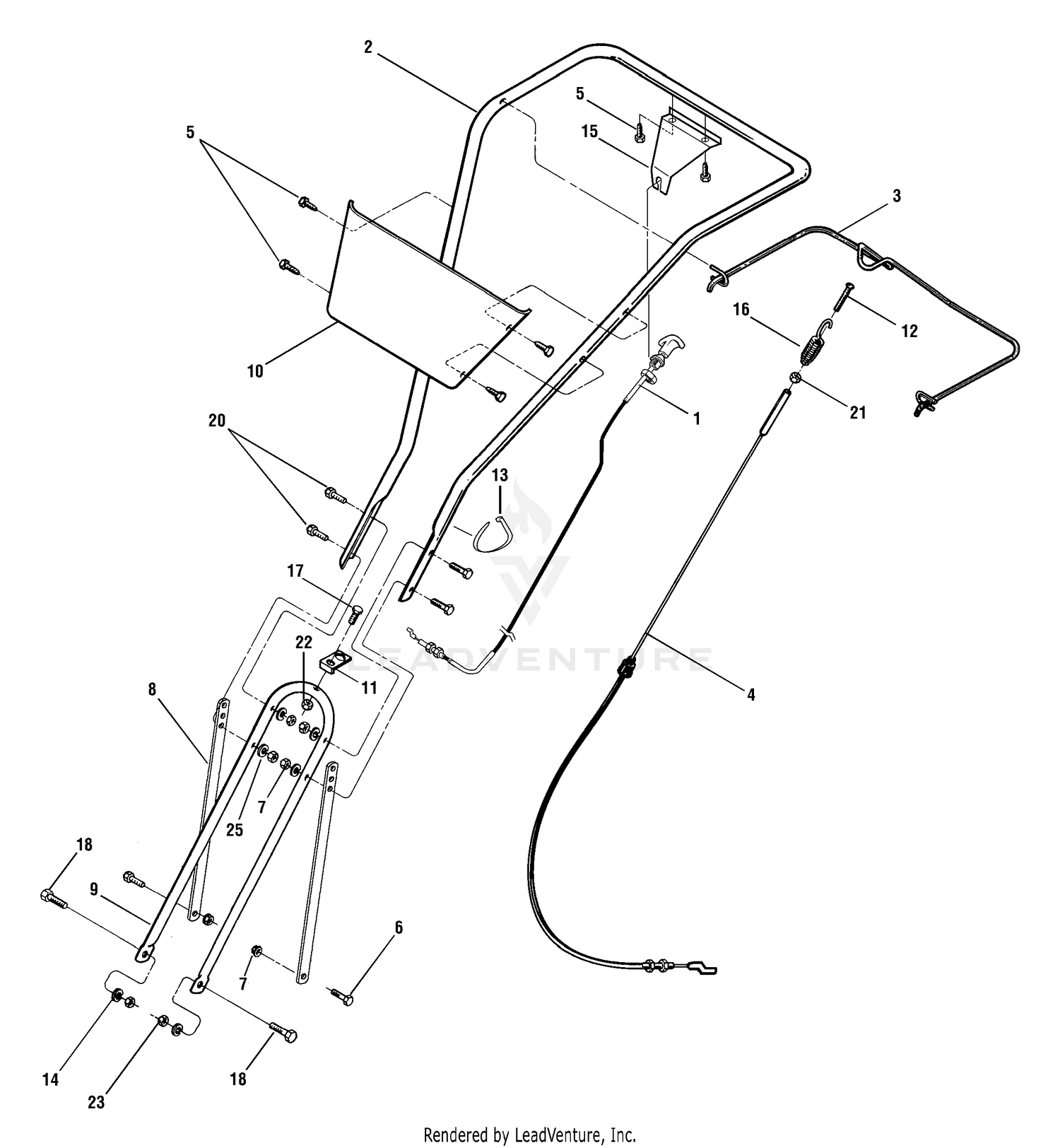

Handlebar Assembly

Handlebar Assembly

Parts (22)

RefPart NumberDescription
1 946-04058 REVERSE CONTROL CABLE This part replaces 1916719. Price: $56.15
2 749-04084-0638 UPPER HANDLE Not Available This part replaces 1916755. Price:
3 1916106001 FORWARD CLUTCH BAIL Not Available This part replaces 747-04210. Price:
4 946-04208 DRIVE CABLE This part replaces 1918745. Price: $35.54
5 710-0599 Screw, Self-Tapping,1/4-20 x 1/2 Price: $3.86
6 710-3008 SCREW 5/16-18 x .75 GR5 Price: $3.76
7 712-3009 Hex Lock Nut, 5/16-18 Price: $5.99
8 786-04188-0638 Support Handle Bracket This part replaces 786-04188. Price: $15.43
9 753-06459A SERVICE REPLACEMENT KIT (GW-55043) This part replaces GW-55043. Price: $79.00
10 786-04200-0638 Handle Panel This part replaces 786-04200. Price: $24.75
11 GW-55044 Tab, Conduit Mount Price: $17.46
12 710-04163 SCREW #10-24 x 2 Not Available This part replaces GW-9855. Price:
13 725-0157 Cable Tie Price: $3.46
14 736-3050 Flat Washer, 3/8 Price: $3.90
15 786-04040 REV CABLE BRACKET Not Available Price:
16 732-04185 Spring, Forward Clutch Price: $6.21
17 710-0106 Hex Hd. Screw, 1/4-20 x 1-1/4 Price: $3.66
18 710-0216 Screw, Hex, 3/8-16 x 3/4 Price: $3.93
20 710-0805A SCREW 5/16-18 x 1.5 LG This part replaces 710-0805. Price: $3.75
21 712-0121 Hex Nut, #10-24 Price: $3.75
22 712-0291 Hex Lock Nut, 1/4-20 Price: $3.93
23 712-3000 Hex Nut, 3/8-16 Price: $3.90
