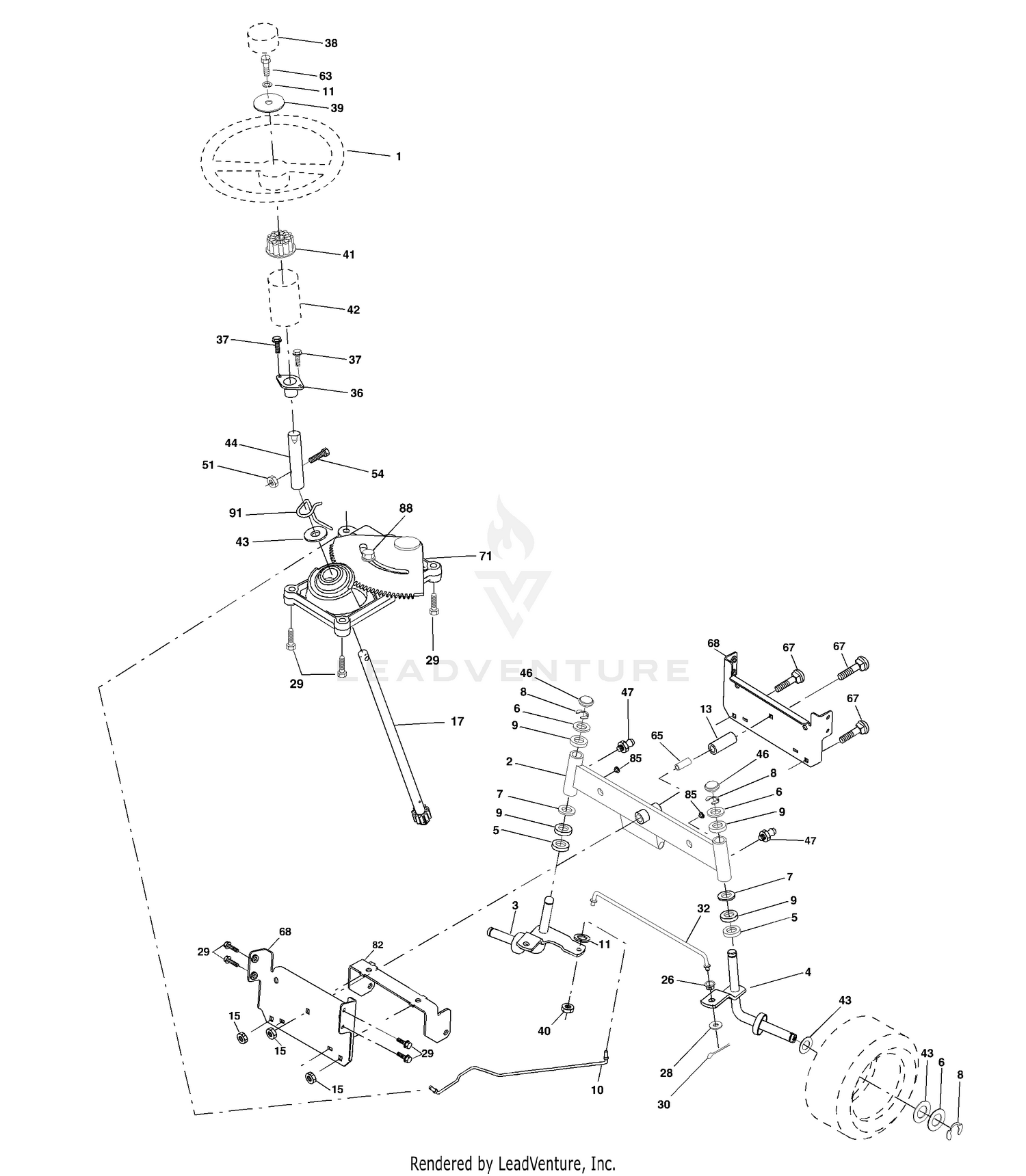

Steering

Steering

Parts (40)

RefPart NumberDescription
1 140044X428 Wheel Steering Ayp/P/L Blk Price: Call Us
2 154427 Axle Asm Price: Call Us
3 169840 Spindle Asm LH Price: Call Us
4 169839 Spindle Asm RH Price: Call Us
5 6266H Bearing Race Thrust Harden Price: Call Us
6 121748X Washer 25/32 X 1-5/8 X 16 Ga Price: Call Us
7 19272016 Washer 27/32 X 1-1/4 X 16 Ga Price: Call Us
8 12000029 Ring Klip #t5304-75 Price: Call Us
9 3366R Bearing Col Strg Blk Price: Call Us
10 175121 Link Drag Price: Call Us
11 10040600 Washer, Lock Hvy. Hlcl. Spr. 3/8 Price: Call Us
13 136518 Spacer earing Axle Front Price: Call Us
15 145212 Hexflange Lock Price: Call Us
17 177876 Shaft Asm Strg Price: Call Us
26 126847X Bushing Link Drag Blk LR Price: Call Us
28 19131416 Washer 13/32 X 7/8 X 16 Ga Price: Call Us
29 17060612 Screw 3/8-16 x 3/4 Price: Call Us
30 76020412 Pin Cotter 1/8 X 3/4 Cad Price: Call Us
32 130465 Rod Tie Wire Form 19 75 Mech Price: Call Us
36 155099 Bushing Strg 5/8 Id Dash Price: Call Us
37 152927 Screw Price: Call Us
38 140045X428 Cap Wheel Steer Ayp Price: Call Us
39 19133812 Washer 13/32 x 2-3/8 x 12 Ga. Price: Call Us
40 7810H Nut Lock Center 3/8-24un Price: Call Us
41 100711L Adaptor Wheel Strg Price: Call Us
42 145054X428 Boot Dash Mtl Steering Blk Price: Call Us
43 121749X Washer 25/32 X 1 1/4 X 16 Ga Price: Call Us
44 153720 Extension Steering Price: Call Us
46 121232X Cap Spindle Fr Top Blk Price: Call Us
47 6855M Fitting Grease Price: Call Us
51 73800500 Nut Lock Hex W/Ins 5/16-18 Price: Call Us
54 74780520 Bolt Fin Hex 3/8-16unc x 1-1/4 Price: Call Us
63 74780616 Bolt Fin Hex 3/8-16unc x 1 Gr.5 Price: Call Us
65 160367 Spacer Brace Axle Price: Call Us
67 72140618 Bolt Fin Hex 5/8-11 unc x 2-3/4 Price: Call Us
68 169827 Brace Axle Price: Call Us
71 175146 Steering Asm. Price: Call Us
82 169835 Bracket Susp Chassis Front Price: Call Us
85 133835 Fastener Christmas Tree Price: Call Us
88 175118 Bolt Shoulder 7/16-20 Price: Call Us
