Dash
Parts (10)

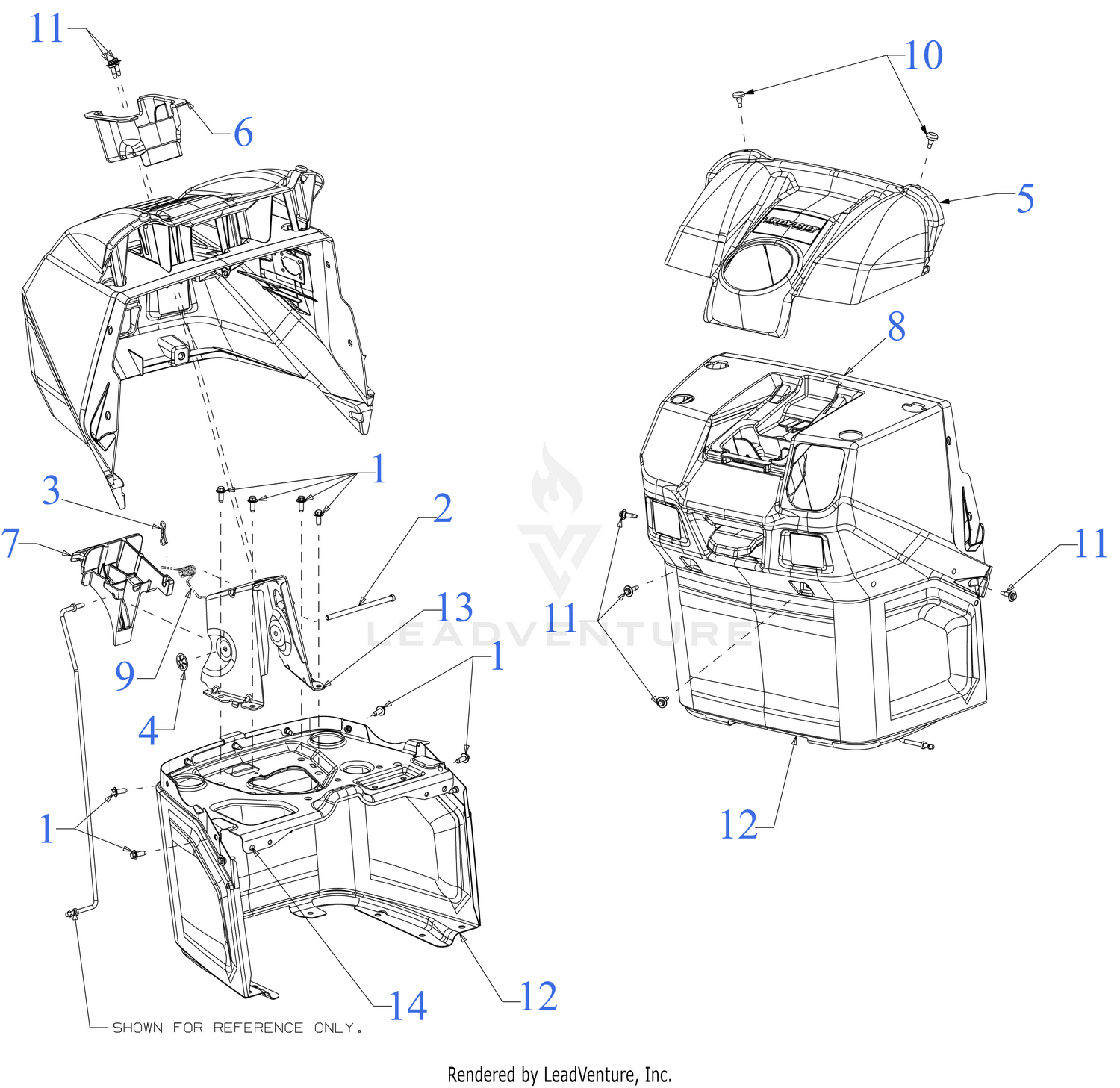

| Ref | Part Number | Description |
|---|---|---|
| 2 | 711-06378 | HINGE PIN .25 x 4.50 Price: $3.40 |
| 3 | 714-04040 | BOW TIE COTTER PIN 1/4-5/16 Price: $1.28 |
| 4 | 726-04012 | PUSH ON NUT Price: $6.20 |
| 5 | 931-10613C | UPPER DASH CAP Price: $37.67 |
| 6 | 731-10618 | STEERING SHAFT BEARING Price: $12.90 |
| 7 | 731-13519 | BRAKE LEVER Price: $6.59 |
| 8 | 731P26296A | DASHBOARD (UPPER) (NO USB) Price: $62.09 |
| 9 | 732-05199 | TORSION SPRING .330 ID Price: $2.72 |
| 10 | 735-0199A | RUBBER BUMPER Price: $6.89 |
| 11 | 738-05090 | SHOULDER SCREW M6-1 .368 X.115 Price: $2.77 |
