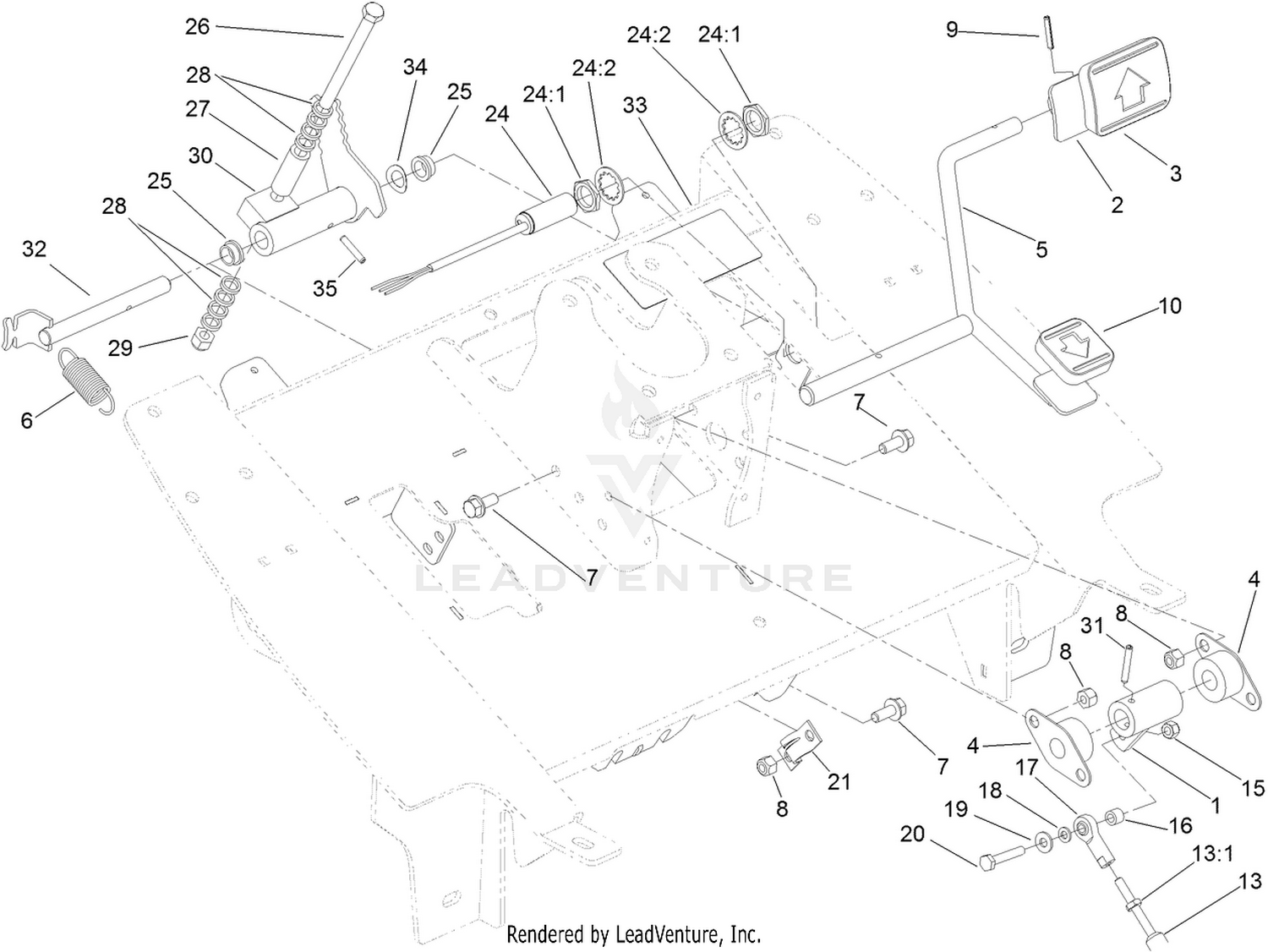

| Ref | Part Number | Description |
|---|
| 1 |
106-3719 |
HUB-PEDAL, TRACTION Price: $54.91 |
| 2 |
49-6440-03 |
PEDAL-FORWARD Price: $84.90 |
| 3 |
74-9100 |
PAD-PEDAL, FORWARD Price: $27.08 |
| 4 |
256-236 |
BEARING-MOUNT, FLANGE Price: $27.99 |
| 5 |
106-3840 |
PEDAL-TRACTION Price: $88.41 |
| 6 |
92-7305 |
SPRING-EXTENSION Price: $9.99 |
| 7 |
3234-5 |
SCREW-HHF Price: $0.42 |
| 8 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 9 |
32121-45 |
PIN-SPRING Price: $0.27 |
| 10 |
74-9110 |
PAD-PEDAL, REVERSE Price: $13.49 |
| 13 |
107-2084 |
TRACTION CABLE ASM Price: $150.00 |
| 15 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 16 |
66-8010 |
SPACER Price: $4.19 |
| 17 |
2411-41 |
ROD END-BALL JOINT Price: $40.28 |
| 18 |
33093-00 |
WASHER-FLAT Price: $0.70 |
| 19 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 20 |
321-9 |
SCREW-HH Price: $0.27 |
| 21 |
93-2092 |
CLAMP-CABLE Price: $3.46 |
| 24 |
115-0282 |
PROXIMITY SENSOR ASM Price: $155.22 |
| 25 |
256-156 |
BUSHING-FLANGE Price: $12.99 |
| 26 |
323-17 |
SCREW-HH Price: $2.05 |
| 27 |
95-6448 |
SPACER Price: $5.39 |
| 28 |
62-4420 |
WASHER Price: $6.69 |
| 29 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 30 |
145-5294 |
STOP-MOW This part replaces 117-0216. Price: $141.97 |
| 31 |
32121-6 |
PIN-ROLL, SLOTTED Price: $0.28 |
| 32 |
106-3731 |
ROD-PIVOT Price: $36.19 |
| 33 |
110-8921 |
DECAL-SPEED, MOW Price: $10.72 |
| 34 |
110-8982 |
WASHER-SPRING Price: $2.71 |
