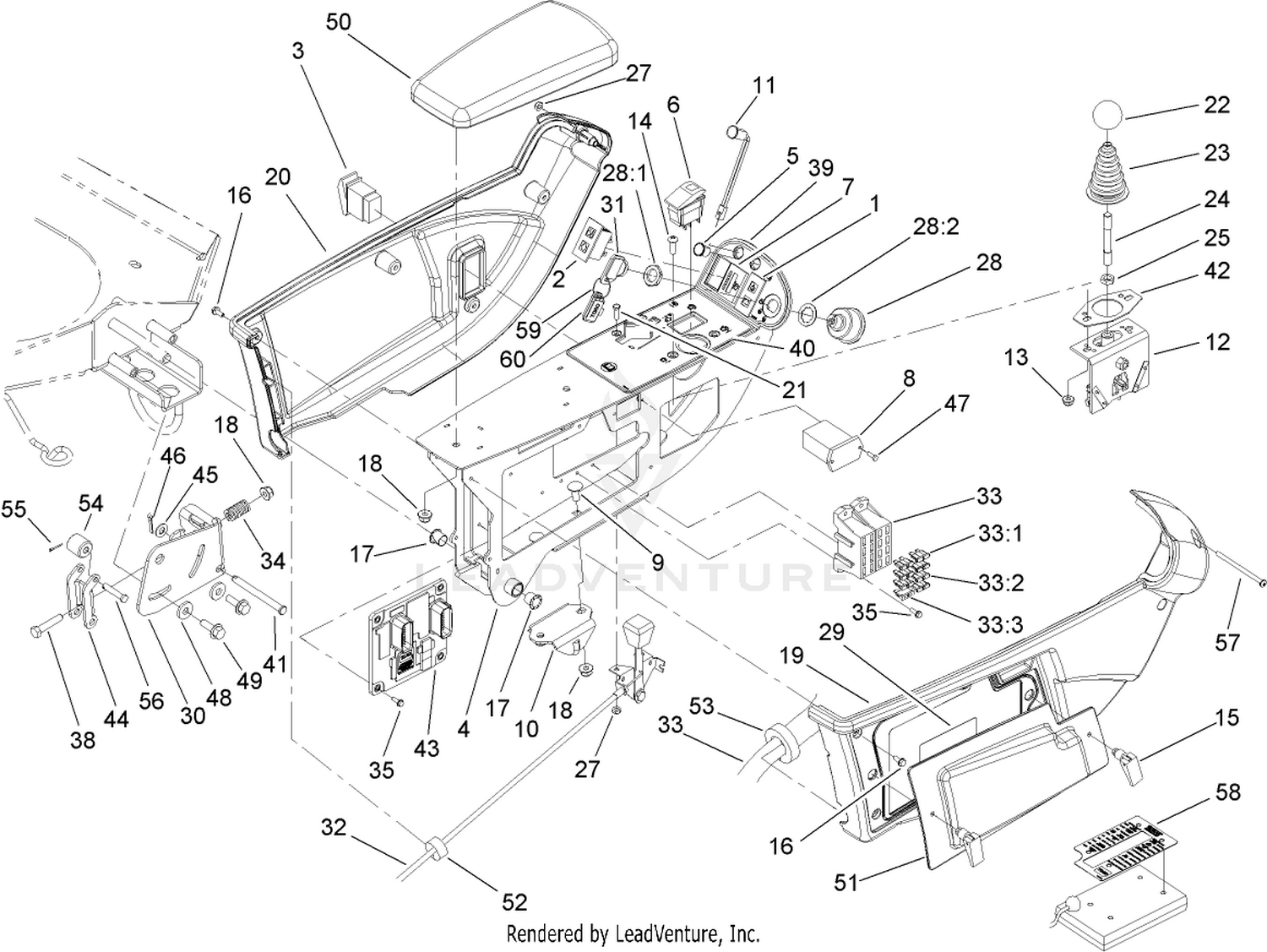

| Ref | Part Number | Description |
|---|
| 1 |
100-8070 |
LAMP-WARNING Price: $38.50 |
| 2 |
100-8071 |
LAMP-WARNING Price: $38.50 |
| 3 |
95-8999 |
SWITCH Price: $42.14 |
| 4 |
108-7599-03 |
CONTROL ARM ASM Price: $431.79 |
| 5 |
2410-64 |
PLUG-BUTTON Price: $0.74 |
| 6 |
105-4232 |
SWITCH Price: $88.64 |
| 7 |
110-0941 |
GAUGE-TEMPERATURE Price: $125.91 |
| 8 |
120-2244 |
HOURMETER This part replaces 75-6820. Price: $48.06 |
| 9 |
3230-23 |
SCREW-CARR Price: $0.89 |
| 10 |
125-1938 |
LATCH This part replaces 110-5340. Price: $27.46 |
| 11 |
95-7652 |
LIGHT-INDICATOR Price: $45.99 |
| 12 |
106-4167 |
JOYSTICK BRACKET ASM Price: $202.74 |
| 13 |
104-7201 |
NUT-HF Price: $0.69 |
| 14 |
3258-166 |
SCREW-PRH Price: $0.28 |
| 15 |
74-5950 |
LATCH-SWELL Price: $21.28 |
| 16 |
32144-112 |
SCREW-HWH Price: $0.99 |
| 17 |
256-257 |
BUSHING-NYLINER Price: $3.19 |
| 18 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 19 |
108-7605 |
COVER-RH Price: $55.56 |
| 20 |
108-7604 |
COVER-LH Price: $55.56 |
| 21 |
3290-134 |
SCREW Price: $0.27 |
| 22 |
233-42 |
KNOB Price: $12.88 |
| 23 |
93-5961 |
BOOT-LEVER Price: $56.35 |
| 24 |
105-8288 |
ROD-JOYSTICK Price: $26.49 |
| 25 |
3218-3 |
NUT-JAM Price: $0.25 |
| 27 |
3296-12 |
NUT-LOCK, NI Price: $1.29 |
| 28 |
104-2541 |
SWITCH ASM Price: $36.70 |
| 29 |
110-0989 |
DECAL-FUSE Price: $10.23 |
| 30 |
110-5313-03 |
BRACKET-RETAINER Price: $35.01 |
| 31 |
63-8360 |
KEY-IGNITION Price: $5.29 |
| 32 |
110-0913 |
CONTROL-THROTTLE Price: $82.56 |
| 33 |
110-9025 |
DISCONTINUED Price: Call Us |
| 34 |
110-5331 |
SPRING-COMPRESSION Price: $22.18 |
| 35 |
32144-87 |
SCREW-HWHTF Price: $0.49 |
| 38 |
322-7 |
SCREW-HH Price: $0.89 |
| 39 |
110-0984 |
DECAL-CONSOLE Price: $24.35 |
| 40 |
110-0998 |
DECAL-PANEL, CONTROL Price: $36.93 |
| 41 |
283-88 |
PIN-CLEVIS Price: $5.77 |
| 42 |
112-9181 |
PLATE-BOOT Price: $4.90 |
| 43 |
110-0650 |
MODULE-CONTROL, ELECTRONIC Price: $1,022.71 |
| 44 |
110-5314 |
LATCH Price: $22.89 |
| 45 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 46 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 47 |
32144-18 |
SCREW-HWH Price: $1.80 |
| 48 |
4-2390 |
WASHER-FLAT Price: $0.62 |
| 49 |
3234-29 |
SCREW-HHF Price: $1.84 |
| 50 |
108-7602 |
REST-ARM Price: $158.43 |
| 51 |
108-7616 |
PANEL-ACCESS Price: $36.37 |
| 52 |
110-8911 |
SEAL-FOAM Price: $1.69 |
| 53 |
110-8912 |
SEAL-FOAM Price: $2.23 |
| 54 |
110-8856 |
SPACER Price: $10.25 |
| 55 |
3272-1 |
PIN-COTTER Price: $0.25 |
| 56 |
283-73 |
PIN-CLEVIS Price: $0.95 |
| 57 |
95-6354 |
SCREW Price: $1.49 |
| 58 |
110-0666 |
OVERLAY-DIAGNOSTICS Price: $26.15 |
| 59 |
98-9321 |
RING-KEY Price: $1.80 |
