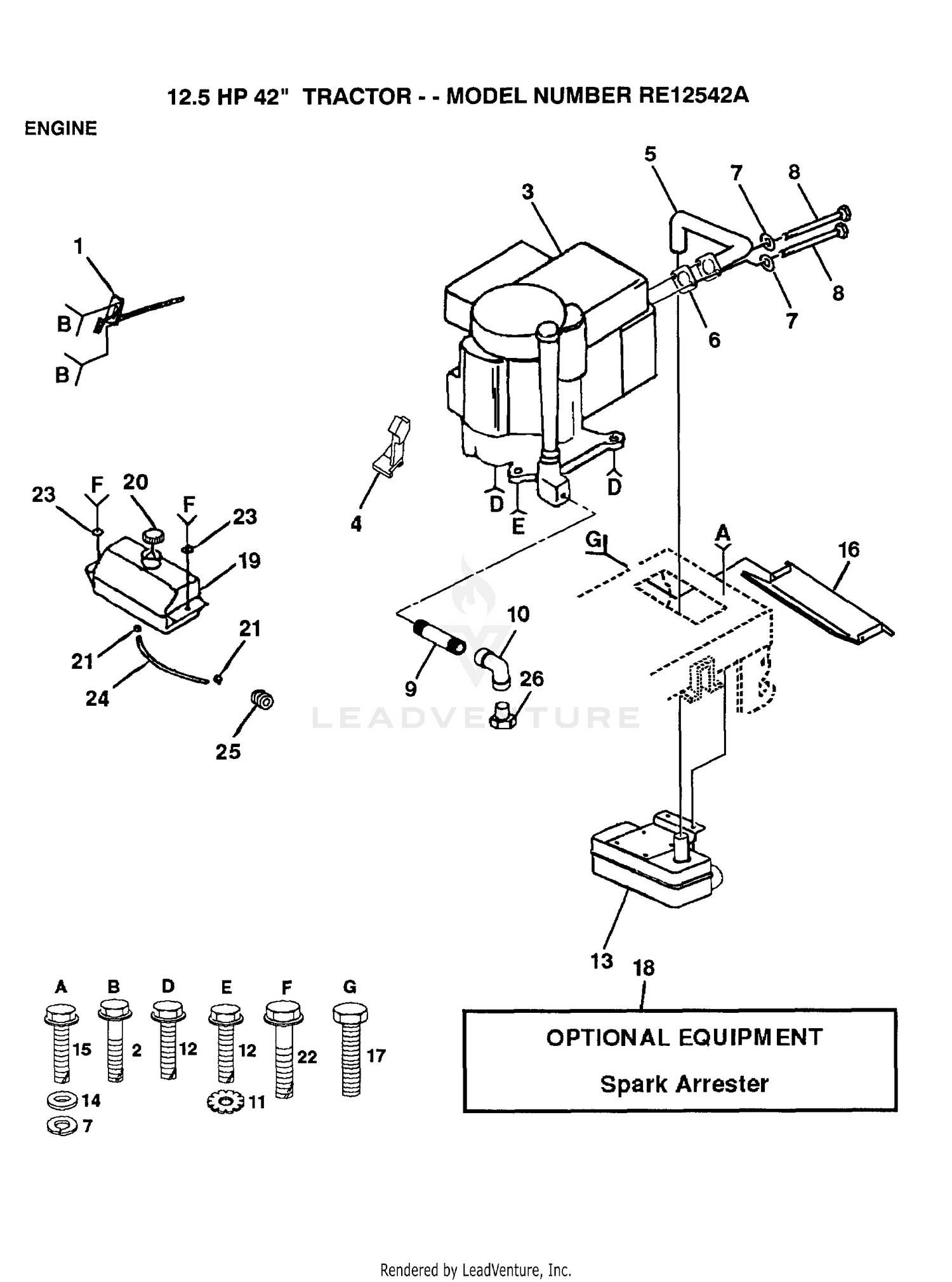

| Ref | Part Number | Description |
|---|
| 1 |
132623 |
SUB= 532132623 Price: Call Us |
| 1 |
33023-00 |
NUT-LOCK Price: $0.25 |
| 2 |
104-7704 |
SPRING-LATCH, BRAKE Price: $12.68 |
| 2 |
17720410 |
SCREW LT Price: Call Us |
| 3 |
3220-2 |
NUT-JAM Price: $0.50 |
| 4 |
133097 |
SUB= 532133097 Price: Call Us |
| 4 |
93-2010-01 |
FRAME ASM Price: $3,690.13 |
| 5 |
123074X |
PIPE EXHAUST Price: Call Us |
| 5 |
93-8062 |
DECAL-BRAKE, PARKING Price: $4.95 |
| 6 |
122593X |
SUB= 272293 Price: Call Us |
| 6 |
33123-016 |
SCREW-CARR Price: $1.21 |
| 7 |
10040500 |
LOCKWASHER Price: Call Us |
| 7 |
33123-016 |
SCREW-CARR Price: $1.21 |
| 8 |
33093-00 |
WASHER-FLAT This part replaces 48-8010. Price: $0.70 |
| 8 |
71070510 |
SCREW LT Price: Call Us |
| 9 |
13280324 |
PIPE NIPPLE Price: Call Us |
| 9 |
33023-00 |
NUT-LOCK This part replaces 49-7810. Price: $0.25 |
| 10 |
13200300 |
ELBOW Price: Call Us |
| 10 |
32144-14 |
SCREW-HWHTF Price: $4.29 |
| 11 |
104-2096 |
BRACKET-SWITCH Price: $35.42 |
| 11 |
11050600 |
LOCKWASHER Price: Call Us |
| 12 |
104-7703 |
HINGE-LOWER Price: $22.15 |
| 12 |
17490620 |
SCREW Price: Call Us |
| 13 |
104-2094 |
BRAKE-LATCH Price: $150.10 |
| 13 |
123075X |
MUFFLER EUROPE Price: Call Us |
| 14 |
104-7702 |
PLATE-SWITCH Price: $16.15 |
| 14 |
19112016 |
WASHER Price: Call Us |
| 15 |
17490512 |
SCREW Price: Call Us |
| 15 |
83-1700 |
BUSHING-FLANGE Price: $7.80 |
| 16 |
128953 |
HEAT SHIELD Price: Call Us |
| 16 |
93-2073-01 |
SHIELD-WHEEL, LH Price: $104.03 |
| 17 |
17021008 |
SCREW Price: Call Us |
| 17 |
93-2072-01 |
SHIELD-WHEEL, RH Price: $92.07 |
| 18 |
123110X |
SPARK ARREST KIT Price: Call Us |
| 18 |
283-61 |
PIN-YOKE Price: $1.56 |
| 19 |
109202X |
TANK.FUEL.LT. Price: Call Us |
| 19 |
282-2 |
YOKE Price: $30.04 |
| 20 |
123549X |
SUB= 158990 Price: Call Us |
| 20 |
3272-6 |
PIN-COTTER Price: $0.25 |
| 21 |
123487X |
HOSE CLAMP Price: Call Us |
| 21 |
93-2075-01 |
BRAKE PEDAL ASM Price: $188.33 |
| 22 |
17490412 |
SCREW HEX CRT Price: Call Us |
| 22 |
93-7629 |
PAD-FOOT, BRAKE Price: $25.13 |
| 23 |
19091416 |
WASHER Price: Call Us |
| 23 |
283-87 |
PIN-CLEVIS Price: $8.89 |
| 24 |
3256-27 |
WASHER-FLAT Price: $0.47 |
| 24 |
8548R |
FUEL LINE T Price: Call Us |
| 25 |
3272-11 |
PIN-COTTER Price: $0.99 |
| 26 |
33024-00 |
NUT-LOCK, NI Price: $0.75 |
| 27 |
33114-020 |
SCREW-HH Price: $0.28 |
| 28 |
32121-50 |
PIN-SPRING Price: $1.21 |
| 29 |
104-2057 |
SENSOR Price: $136.35 |
