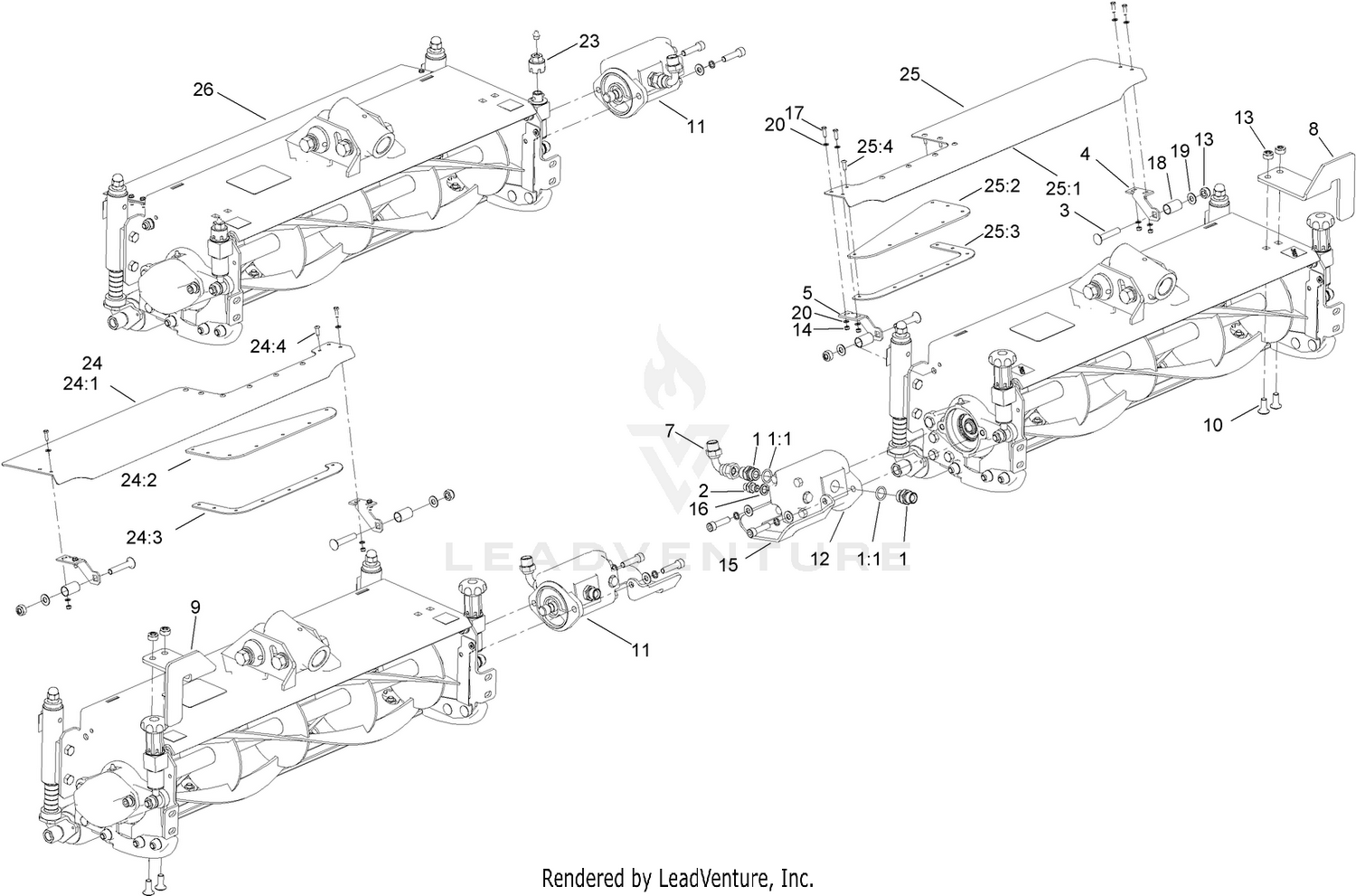

| Ref | Part Number | Description |
|---|
| 3 |
ZBK1J055U |
BOLT CARRIAGE M10*55 Price: $1.38 |
| 4 |
876041 |
BRACKET DEFLECTOR LH Price: $20.54 |
| 5 |
876042 |
BRACKET DEFLECTOR RH Price: $20.54 |
| 8 |
876086W |
GUARD LH HOC ADJUSTMENT Price: $27.56 |
| 9 |
876087W |
GUARD RH HOC ADJUSTMENT Price: $27.56 |
| 10 |
15-11-003 |
CARR.BOLT(8.8)M10*25 HT Price: $1.42 |
| 11 |
910696 |
MOTOR HYDRAULIC (CLOCKWISE) Price: $474.63 |
| 12 |
940602 |
MOTOR CUTTER (ANTICLOCKWISE) Price: $488.87 |
| 13 |
ZNN1J000U |
HEX.NUT NYLOC M10 Price: $1.42 |
| 14 |
09430 |
NUT M5 NYL INS T TYPE Price: $1.25 |
| 15 |
924420W |
MOTOR GUARD Price: $43.17 |
| 17 |
ZDH1E016U |
HEX HD SET SCREW M5*16 Price: $1.38 |
| 18 |
876049 |
SPACER DEFLECTOR Price: $5.30 |
| 19 |
09479 |
WASHER M10 X 21 X 1.45 THK (P) Price: $1.39 |
| 20 |
09470 |
WASHER M5 X 10 X 1 ZN & PASS Price: $1.25 |
| 23 |
111-3927 |
BOSS ADJUSTER Price: $49.68 |
| 24 |
111-7649 |
SHIELD ASM This part replaces 111-6873. Price: $105.62 |
| 25 |
111-7648 |
SHIELD ASM This part replaces 111-6872. Price: $105.62 |
