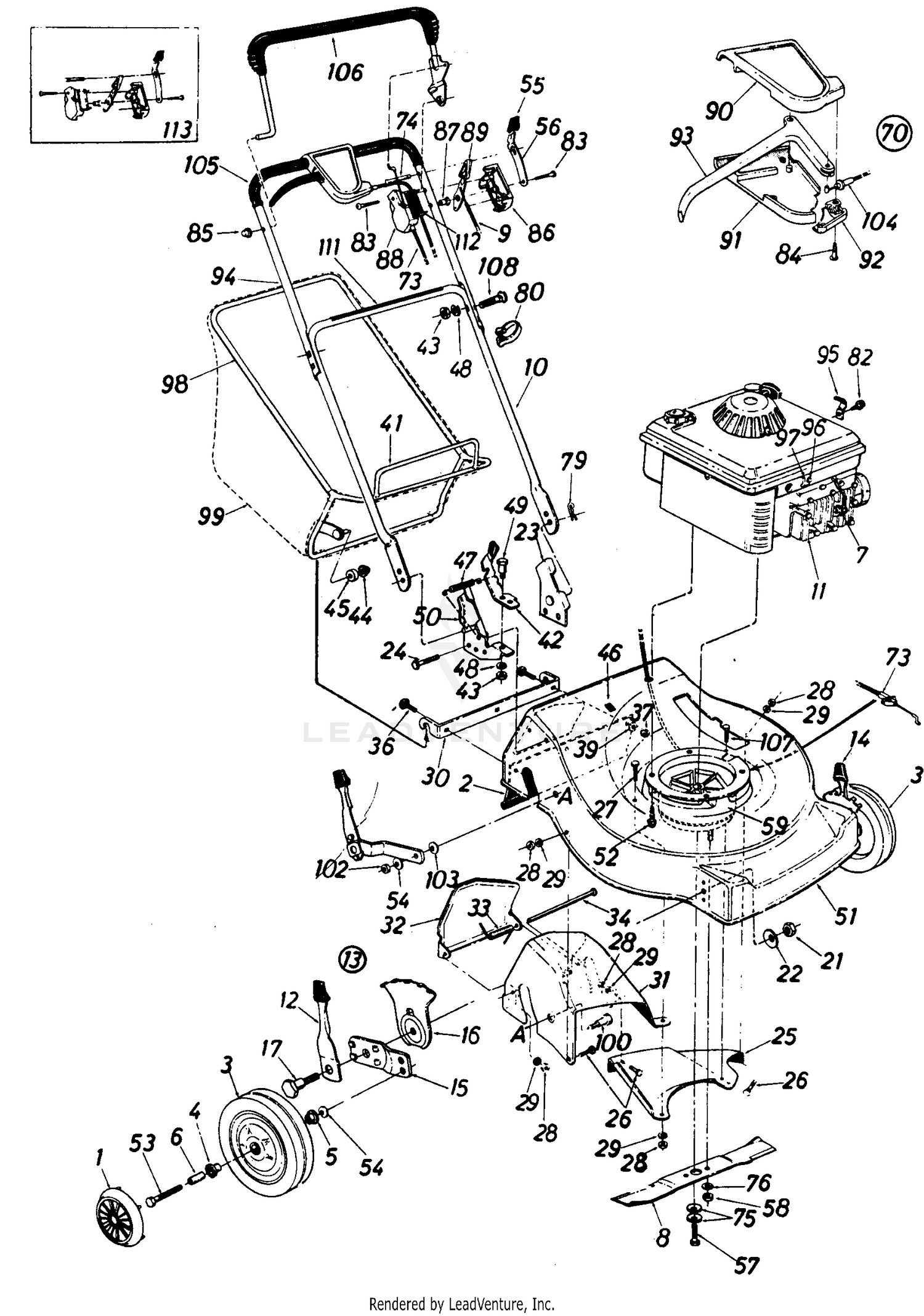

| Ref | Part Number | Description |
|---|
| 1 |
N/A |
Hub Cap-Plastic |
| 2 |
731-0664 |
FLAP Not Available Price: |
| 3 |
N/A |
Front Wheel Ass'y. Comp. |
| 4 |
N/A |
Beari ng |
| 5 |
N/A |
Bearing |
| 7 |
735-0639 |
INSULATOR-SPARK PLUG Not Available Price: |
| 9 |
946-0674A |
Throttle Wire-58" Lg. Not Available This part replaces 746-0472. Price: |
| 10 |
749-0907B |
Lower Handle This part replaces 749-0505. Price: $43.95 |
| 11 |
N/A |
Engine |
| 12 |
94832 |
Front Spring Lever This part replaces 14832. Price: $9.48 |
| 13 |
753-06761 |
Height Adj. Ass'y. Comp. (R.H.) This part replaces 14578. Price: $57.55 |
| 14 |
753-06761 |
Height Adj. Ass'y. Comp. (R.H.) This part replaces 14579. Price: $57.55 |
| 15 |
15262B |
Pivot Bar This part replaces 15262. Price: $13.59 |
| 16 |
787-01290A |
Height Adjustment Plate This part replaces 15261. Price: $10.58 |
| 17 |
738-0507B |
Shoulder Bolt .50" Dia. This part replaces 738-0507. Price: $3.86 |
| 21 |
712-0798 |
Hex Nut 3/8-16 Thd. Price: $3.86 |
| 22 |
936-0356 |
BELL WASHER Not Available This part replaces 736-0356. Price: |
| 23 |
12297 |
BRACKET ASSEMBLY Not Available Price: |
| 24 |
710-0892 |
SCREW 1/4-14 x .625 Not Available Price: |
| 25 |
14014 |
Rear Baffle-L.H. Price: Call Us |
| 26 |
710-05177 |
CARRIAGE BOLT 1/4-20X.50" This part replaces 710-0167. Price: $4.26 |
| 27 |
710-0206 |
Hex Bolt 1/4-20 x .88" Lg. Price: $3.94 |
| 28 |
912-0287 |
HEX NUT 1/4-20 Not Available This part replaces 7120287. Price: |
| 29 |
936-0329 |
L-Wash. 1/4" I.D. This part replaces 736-0329. Price: $3.90 |
| 30 |
14012 |
ADAPTER-GR Not Available Price: |
| 31 |
14235 |
BAFFLE-CHU Not Available Price: |
| 32 |
13407 |
CHUTE DOOR Not Available Price: |
| 33 |
732-0346 |
TORSION SPRING Not Available Price: |
| 34 |
738-0386 |
HINGE PIN Not Available Price: |
| 36 |
710-0703 |
Carriage Bolt 1/4-20 x .75" Price: $3.66 |
| 37 |
712-0271 |
Sems Nut 1/4 -20 Thd. Price: $3.78 |
| 39 |
736-0211 |
Fl-Wash. .285" I.D. x 1.25" Price: $5.99 |
| 41 |
14582 |
CATCHER LOWER FRAME Not Available Price: |
| 42 |
14845 |
CATCHER LOCK LEVER W/ KNOB Not Available Price: |
| 43 |
712-3010 |
HEX NUT 5/16-18 This part replaces 712-0267. Price: $3.89 |
| 44 |
726-0100 |
Push Nut 3/8" Rod Price: $3.75 |
| 45 |
731-0430 |
ROLLER-PLASTIC Not Available Price: |
| 46 |
731-0564 |
PLUG Not Available Price: |
| 47 |
732-0357A |
Extension Spring .33 OD x 1.12 Lg. This part replaces 732-0357. Price: $3.94 |
| 48 |
936-0119 |
Lock Wash. 5/16" I.D. This part replaces 736-0119. Price: $4.29 |
| 49 |
938-0155 |
Shoulder Bolt This part replaces 738-0155. Price: $6.01 |
| 50 |
14592 |
Handle Brkt. Ass'y.-R.H. Price: Call Us |
| 52 |
710-0654A |
TT Screw, 3/8-16 x 1.00 This part replaces 710-0654. Price: $3.75 |
| 53 |
N/A |
Axle Bolt |
| 54 |
736-0105 |
Bell-Wash. 44" I.D. x .88" Price: $3.96 |
| 55 |
731-13116-1 |
HEIGHT ADJUSTMENT KNOB This part replaces 720-0190. Price: $12.01 |
| 56 |
732-0401 |
SPRING-LOCKOUT Not Available Price: |
| 57 |
710-0818 |
Hex Bolt 3/8-24 x 2.00" Lg. (Grade 8) Price: $5.95 |
| 58 |
712-0241 |
Hex Nut 3/8-24 Thd. This part replaces 712-0328. Price: $3.86 |
| 59 |
717-0485 |
BLADE BRAKE CLUTCH ASS'Y. COMP. Not Available Price: |
| 70 |
753-0362 |
KIT-CLUTCH CONTROL Not Available Price: |
| 73 |
746-0400 |
CLUTCH CABLE Not Available Price: |
| 74 |
731-0607 |
LOCKING PIN Not Available Price: |
| 75 |
736-0105 |
Bell-Wash. .44" I.D. x 88" Price: $3.96 |
| 76 |
736-0169 |
L-Wash. 3/8" I.D. Price: $3.33 |
| 79 |
714-0104 |
Intern. Cot. Pin 5/16" Dia. Price: $3.90 |
| 80 |
726-0192 |
CABLE TIE Not Available Price: |
| 82 |
710-0227 |
Hex AB-Tap Scr. #8 x .38" Price: $3.90 |
| 83 |
710-0796 |
Truss Mach. Scr. #12 x 1.50" Price: $4.75 |
| 84 |
710-0841 |
Flat "C"-Sunk Hd. Scr. #10 x 1.0" Lg. Price: $3.95 |
| 85 |
726-0135 |
Cap Speed Nut 5/16" Rod Price: $5.94 |
| 86 |
731-0523 |
CONTROL PANEL HALF Not Available Price: |
| 87 |
731-0524 |
CONROL DISC PIN Not Available Price: |
| 88 |
731-0526 |
CLUTCH PANEL HALF Not Available Price: |
| 89 |
931-0972 |
Throttle Control Lever This part replaces 731-0528. Price: $8.84 |
| 90 |
731-0617A |
HALF COVER Not Available This part replaces 731-0617. Price: |
| 91 |
753-0833 |
Control Cover Half-Lower This part replaces 731-0618. Price: $47.34 |
| 92 |
731-0619 |
CABLE MOUNTING CAP Not Available Price: |
| 93 |
731-0620A |
Drive Control This part replaces 731-0620. Price: $13.59 |
| 94 |
749-0437 |
Upper Handle (Chrome) Price: Call Us |
| 95 |
12894 |
CABLE CLAMP Not Available Price: |
| 96 |
710-0899A |
Hex Sems Scr. #10-32 x .62" Lg. This part replaces 710-0899. Price: $5.89 |
| 97 |
751-0333 |
CASING CLAMP Not Available Price: |
| 98 |
749-0278 |
FRAME-CATCHER-UPR Not Available Price: |
| 99 |
764-0171 |
GRASSBAG Not Available Price: |
| 100 |
738-0430 |
Shld. Bolt .500" Dia. x .685" Price: $10.55 |
| 102 |
912-3008 |
Jam Nut, 3/8-16 This part replaces 712-0342. Price: $4.08 |
| 103 |
936-0219 |
Bell-Wash. .400" I.D. x 1.13" O.D. This part replaces 736-0219. Price: $3.86 |
| 104 |
746-0463 |
CABLE-CLUTCH Not Available Price: |
| 105 |
718-0145 |
Grip Price: Call Us |
| 106 |
731-0609 |
BAIL (LH) Not Available Price: |
| 107 |
710-0642 |
Hex Wash. Hd. Self-Tap Scr. 1/4-20 x .75" Lg. Price: $4.05 |
| 108 |
710-0671 |
BOLT-CARRIAGE-CURV 5/16-18 x 1.38 Not Available Price: |
| 111 |
777-3453 |
Instruction Label-Handle Price: Call Us |
| 112 |
777-5166 |
CONTROL LABEL Not Available Price: |
| 113 |
753-0361 |
KIT-THROTTLE Not Available Price: |
