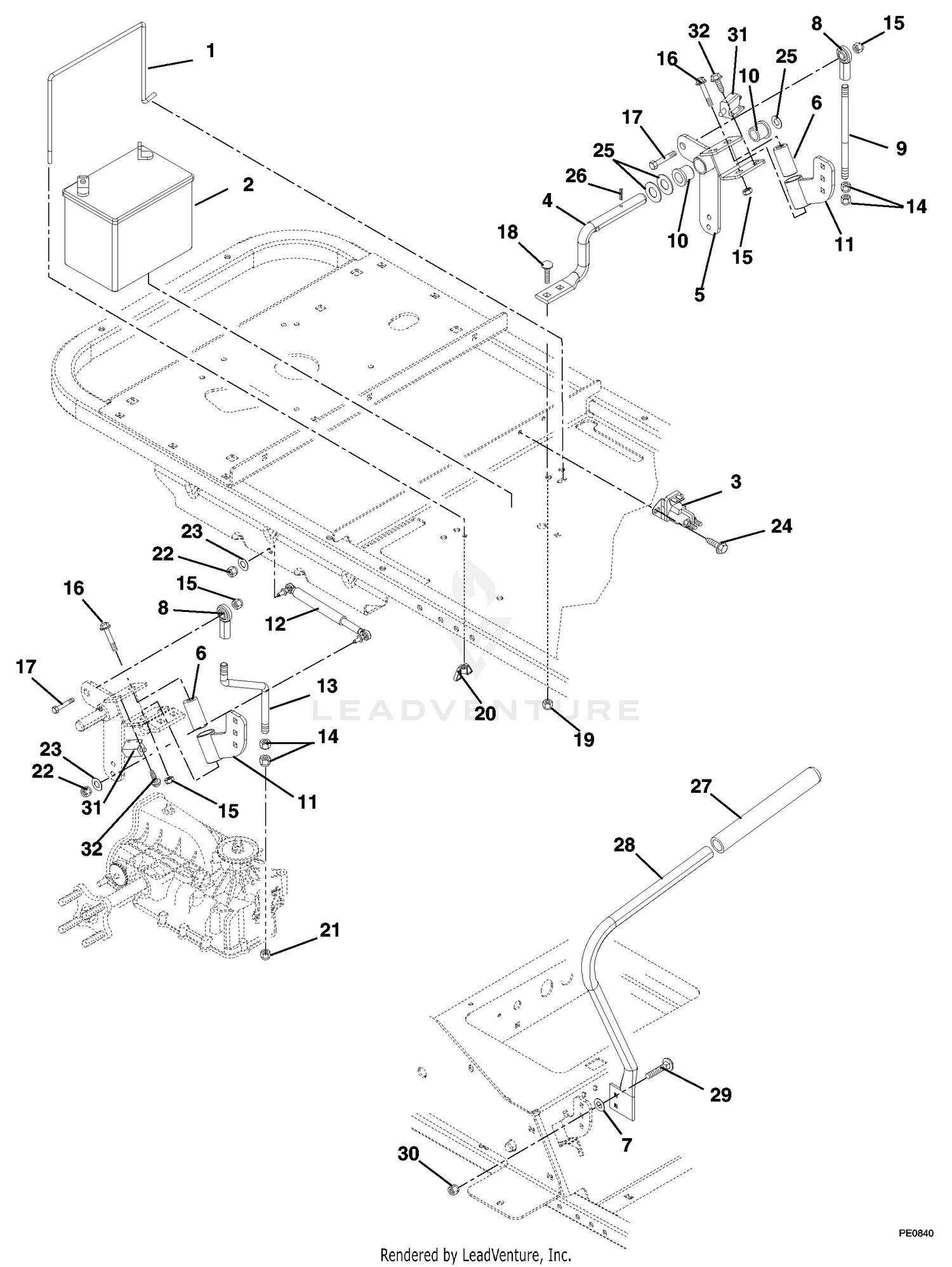

| Ref | Part Number | Description |
|---|
| 1 |
01533400 |
BATTERY ROD Price: $22.45 |
| 3 |
59223400 |
KIT, SEALED SOLENOID ADAPTER This part replaces 03679000. Price: $55.45 |
| 4 |
01581800 |
ROD PIVOT Price: $62.80 |
| 5 |
01604300 |
WMT, CONTROL Price: $59.95 |
| 6 |
01581700 |
BSHG, SPCR .502X.997X2.03 PM Price: $5.95 |
| 7 |
06300125 |
WSHR-LK-EXT 0.326X0.599X0.031 ZCC This part replaces 06307200. Price: $0.45 |
| 8 |
03461700 |
ROD END, 1/2 RH This part replaces 050350. Price: $41.95 |
| 9 |
01569600 |
ROD-TRANSAXLE LH Price: $59.95 |
| 10 |
01591100 |
BUSHING-1"X.75"X1" Price: $8.95 |
| 11 |
00299800 |
WELDMENT, HANDLEBAR LH This part replaces 01604400. Price: $81.95 |
| 12 |
01589300 |
DAMPENER Price: $101.95 |
| 13 |
01569500 |
ROD-TRANSAXLE RH Price: $43.95 |
| 14 |
06539500 |
NUT-JAM .50-20 GR2 YWZC Price: $2.45 |
| 15 |
06500907 |
NUT-LK-TOP-FLG .500-13 GF ZCC This part replaces 06543600. Price: $1.45 |
| 16 |
05901737 |
BLT, HEX .50-13X3.00 G5 ZCC This part replaces 05959900. Price: $4.45 |
| 17 |
05901631 |
BLT,HEX .50-13X1.50 G5 ZCC This part replaces 05962000. Price: $3.95 |
| 18 |
06200313 |
BLT, RHSN .38-16X1.00 G5 ZCC This part replaces 06226600. Price: $2.45 |
| 19 |
06500726 |
NUT,NYL-FLG .38-16 GF ZCC This part replaces 06544500. Price: $1.45 |
| 20 |
06500805 |
NUT, LK-WING .25-20 ZCC This part replaces 06537500. Price: $4.45 |
| 21 |
06544000 |
NUT-LK-JAM-NYL .50-20 GR2 YWZC Price: $2.95 |
| 22 |
06538600 |
NUT-HEX M8-1.25 YWZC Price: $1.95 |
| 23 |
06300119 |
WSHR-LK-REG .312X.078 ZCC This part replaces 06308600. Price: $0.95 |
| 24 |
07400125 |
SCR,TAP .25-20X.375 HWH TR ZCC This part replaces 07411600. Price: $0.95 |
| 25 |
06444100 |
WSHR-FL-STL .754X1.000X.032 YZ Price: $2.45 |
| 26 |
05802100 |
PIN-ROLL .188X1.13 This part replaces 036146. Price: $1.95 |
| 27 |
07534500 |
GRIP - HANDLEBAR Price: $24.45 |
| 28 |
01598551 |
HANDLEBAR WLDM'T RH Price: $69.95 |
| 29 |
06209500 |
BLT-RDHDSQNK.31-18X.88 GR5YWZC Price: $2.45 |
| 30 |
06500904 |
NUT-LK-TOP-FLG .312-18 GF ZCC This part replaces 06543100. Price: $0.95 |
| 31 |
03606600 |
SWITCH- DOUBLE POLE N.O./N.O. Price: $15.45 |
| 01598651 |
HANDLEBAR |
WLDM'T LH Price: $69.95 01598651 |
