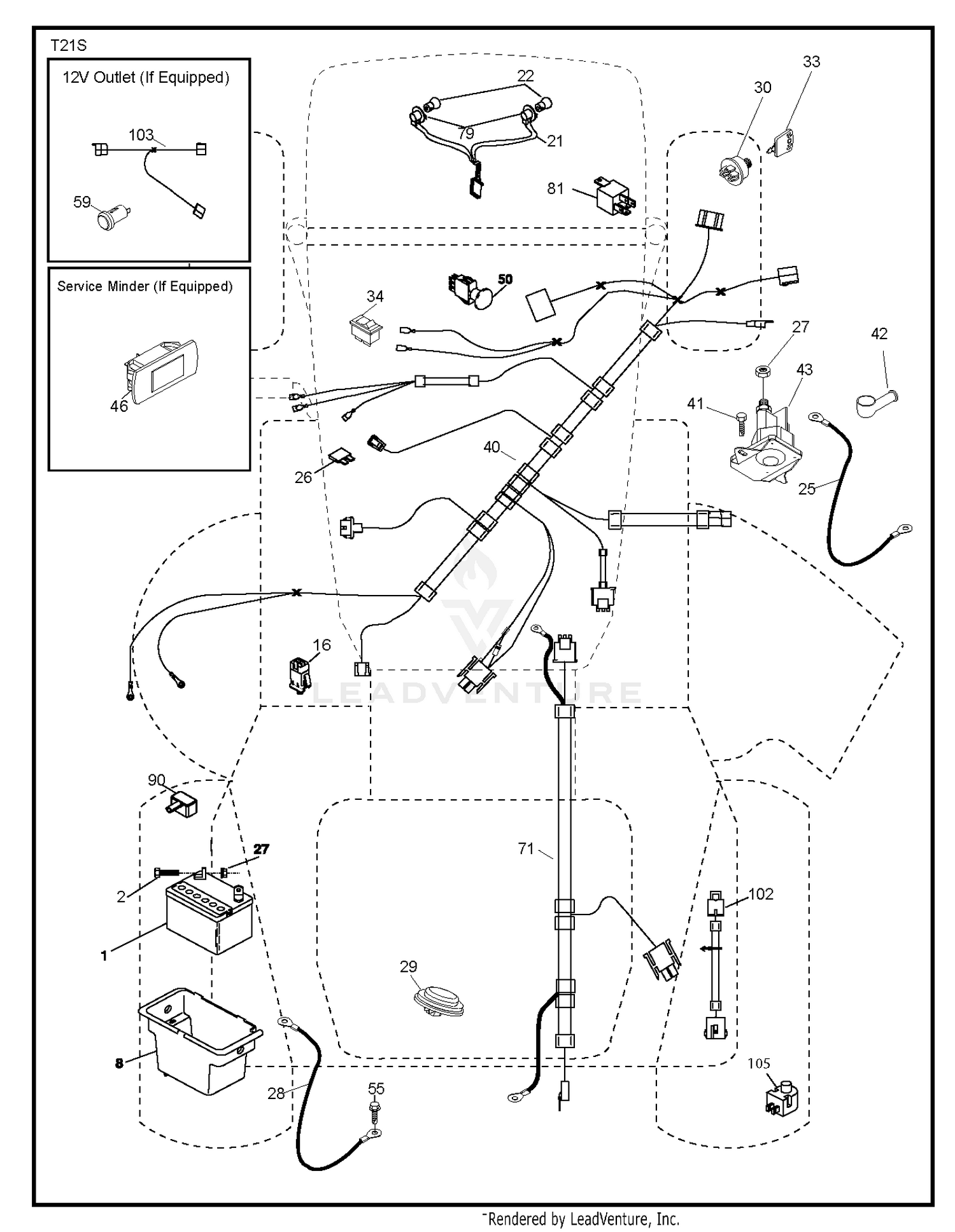

| Ref | Part Number | Description |
|---|
| 1 |
27-4720 |
SHAFT-PIVOT, SEAT Price: $32.27 |
| 1 |
532123899 |
BATTERY.DRY.30.AMP This part replaces 532163465. Price: $149.99 |
| 2 |
36-7550 |
DISCONTINUED Price: Call Us |
| 2 |
874760412 |
BOLT.HEX.1/4.X.3/4.DICHROMATE Price: $3.99 |
| 4 |
37-9580 |
DISCONTINUED Price: Call Us |
| 5 |
27-9870 |
PIN-SWITCH, SEAT Price: $31.55 |
| 6 |
3220-2 |
NUT-JAM Price: $0.50 |
| 7 |
3253-24 |
WASHER-LOCK/SP Price: $0.37 |
| 8 |
2411-33 |
BALLJOINT-RH (W/GROMMET) This part replaces 37-9570. Price: $24.45 |
| 8 |
532193228 |
BOX.BATTERY.MNT.REAR.L Price: $24.99 |
| 9 |
32121-4 |
PIN-ROLL, SLOTTED Price: $3.49 |
| 10 |
28-0570 |
SPRING-COMPRESSION Price: $33.04 |
| 11 |
32121-6 |
PIN-ROLL, SLOTTED Price: $0.28 |
| 16 |
532176138 |
SWITCH INTERLOOK PUSH-IN Price: $19.99 |
| 21 |
532400252 |
HARNESS.LIGHT W/4152J BULBS Price: $19.99 |
| 22 |
532004152 |
LIGHTBULB Price: $3.99 |
| 25 |
585555501 |
CABLE.STARTER.8GA.17.5 Price: $7.99 |
| 26 |
532175158 |
FUSE 20AMP Price: $4.99 |
| 27 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 28 |
583390701 |
CABLE.GROUND.REAR.BATTERY.8GA This part replaces 532421686. Price: $8.99 |
| 29 |
532401545 |
SWITCH.SEAT.DELTA.OPC. Price: $34.99 |
| 30 |
532193350 |
SWITCH.IGN.DELTA.W.LGH.ROS Price: $19.99 |
| 33 |
532411935 |
KEY.CHAIN.BLISTER.PACK.GEN.INT Price: $8.99 |
| 34 |
532110712 |
SWITCH LT Price: $7.99 |
| 40 |
581022801 |
HARNESS.IGN.ELEC.RELAY.TEX.46" Price: $64.99 |
| 41 |
596437001 |
Screws This part replaces 817720408. Price: $2.99 |
| 42 |
532154336 |
COVER.TERMINAL.RED This part replaces 532131563. Price: $4.99 |
| 43 |
582042802 |
Solenoids This part replaces 532192507. Price: $22.99 |
| 46 |
594919101 |
GUAGE.SRVCMNDR.HRMTR. This part replaces 532401763. Price: $19.99 |
| 50 |
582107601 |
SWITCH.PTO.8TERMINAL.STD.BLK This part replaces 532174651. Price: $24.99 |
| 55 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK This part replaces 817060512. Price: $4.99 |
| 71 |
532441544 |
HARNESS.CHASSIS.TEX.8AWG Price: $99.99 |
| 79 |
532175242 |
BULB HOLDER ASM. Price: $8.99 |
| 81 |
532409615 |
RELAY HARNESS.SEALED Price: $22.99 |
| 102 |
581023401 |
HARNESS.PIGTAIL.VARIATOR.SD Price: $14.99 |
| 105 |
532407568 |
REVERSE SWITCH Price: $12.99 |
