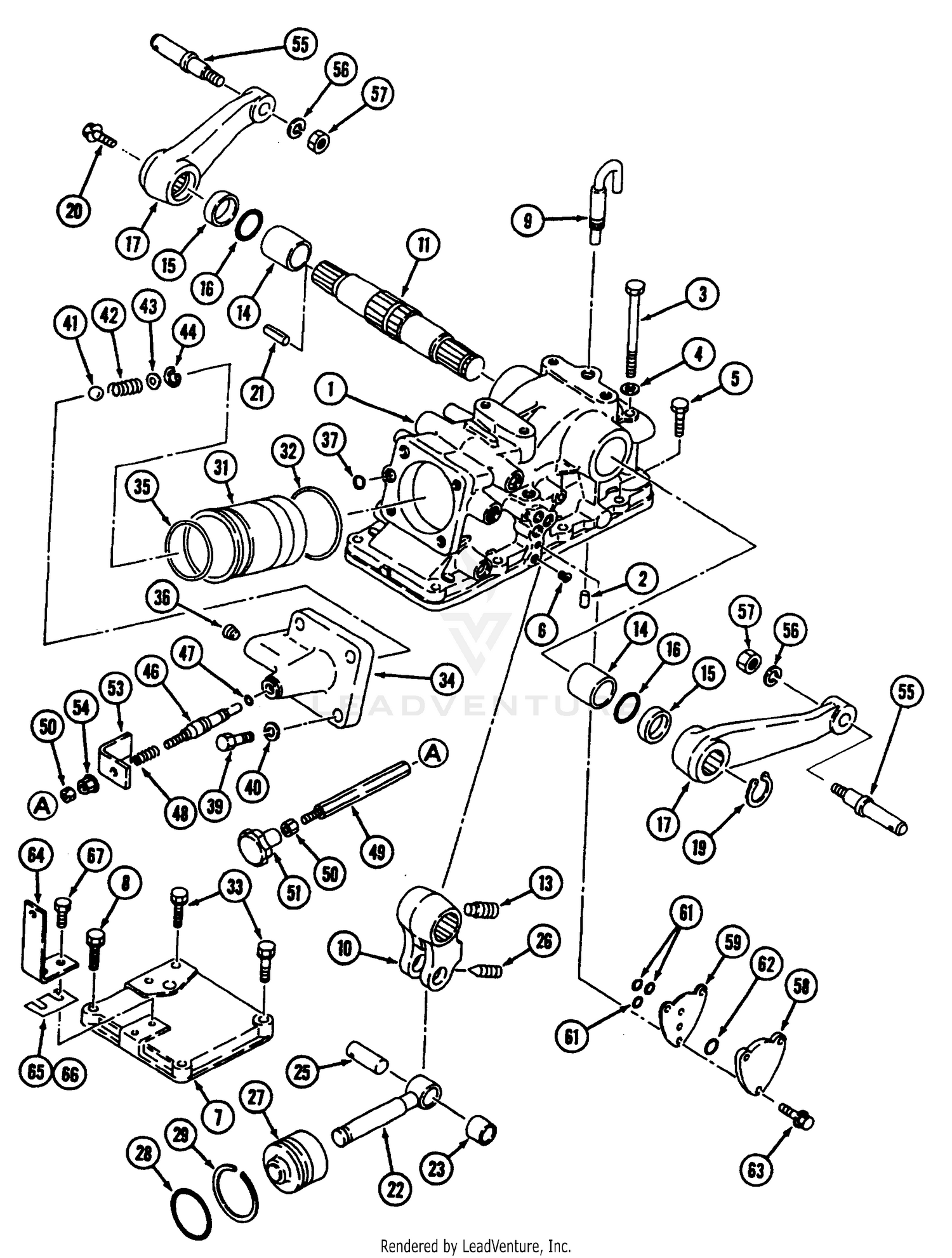

| Ref | Part Number | Description |
|---|
| 1 |
MA-19642401AG0 |
CASE HYDRAULIC Not Available Price: |
| 2 |
MA-05401010020 |
PIN Not Available Price: |
| 3 |
MA-A0550110130 |
BOLT Not Available Price: |
| 4 |
MA-A3600101002 |
WASHER,SPRING Not Available Price: |
| 5 |
MA-F1550110045 |
BOLT,W/SPRING WASH Not Available Price: |
| 6 |
MA-A6010A01300 |
PLUG Not Available Price: |
| 7 |
MA-19642404AG1 |
COVER Not Available Price: |
| 8 |
MA-F1550110040 |
BOLT,W/SPR Not Available Price: |
| 9 |
MA-11762466AG2 |
PIPE,VENT Not Available Price: |
| 10 |
MA-19642407000 |
ARM POWER Not Available Price: |
| 11 |
MA-19642409000 |
SHAFT HYDR Not Available Price: |
| 13 |
MA-HA130302000 |
SCREW Not Available Price: |
| 14 |
MA-07972045300 |
BUSHING Not Available Price: |
| 15 |
MA-11742458000 |
COLLAR Not Available Price: |
| 16 |
MA-08300200450 |
O-RING Not Available Price: |
| 17 |
MA-19642413AG1 |
ARM-LIFT Not Available Price: |
| 19 |
MA-07400004200 |
RING-"C" Not Available Price: |
| 20 |
MA-F1550110025 |
BOLT,W/SPRING WASH Not Available Price: |
| 21 |
MA-05500004016 |
SPRING PIN Not Available Price: |
| 22 |
MA-19642416000 |
ROD PISTON Not Available Price: |
| 23 |
MA-07972022200 |
BUSHING Not Available Price: |
| 25 |
MA-19632418000 |
PIN Not Available Price: |
| 26 |
MA-HA130401000 |
SCREW Not Available Price: |
| 27 |
MA-19642417000 |
PISTON Not Available Price: |
| 28 |
MA-08300100700 |
O-RING Not Available Price: |
| 29 |
MA-08320100700 |
RING-BACK UP Not Available Price: |
| 31 |
MA-19642419000 |
CYLINDER HYDRAULIC Not Available Price: |
| 32 |
MA-08300500900 |
O-RING Not Available Price: |
| 33 |
MA-F1550110050 |
BOLT,W/SPR Not Available Price: |
| 34 |
MA-19642421AG0 |
HEAD CYLINDER Not Available Price: |
| 35 |
MA-08300200750 |
O-RING Not Available Price: |
| 36 |
MA-A6010101300 |
PLUG Not Available Price: |
| 37 |
MA-08301100120 |
O-RING Not Available Price: |
| 39 |
MA-A9450114050 |
BOLT Not Available Price: |
| 40 |
MA-A3600101402 |
WASHER,SPRING Not Available Price: |
| 41 |
MA-08000001100 |
BALL Not Available Price: |
| 42 |
MA-11501707000 |
SPRING Not Available Price: |
| 43 |
MA-19822413000 |
WASHER Not Available Price: |
| 44 |
MA-07410001500 |
RING, SNAP Not Available Price: |
| 46 |
MA-19082411000 |
SCREW PILOT Not Available Price: |
| 47 |
MA-08301100060 |
O-RING Not Available Price: |
| 48 |
MA-10252447000 |
SPRING Not Available Price: |
| 49 |
MA-19632424000 |
SHAFT Not Available Price: |
| 50 |
MA-A3010108002 |
NUT Not Available Price: |
| 51 |
MA-19062432000 |
KNOB Not Available Price: |
| 53 |
MA-19632423AG0 |
LEVER,STOP Not Available Price: |
| 54 |
MA-F3010108001 |
NUT Not Available Price: |
| 55 |
MA-10382406000 |
PIN-LIFT ARM Not Available Price: |
| 56 |
MA-A3600101602 |
WASHER,SPRING Not Available Price: |
| 57 |
MA-A3030116002 |
NUT Not Available Price: |
| 58 |
MA-10072448AG0 |
CAP Not Available Price: |
| 59 |
MA-10072449000 |
PLATE Not Available Price: |
| 61 |
MA-08301100120 |
O-RING Not Available Price: |
| 62 |
MA-08301100250 |
O-RING Not Available Price: |
| 63 |
MA-F1540108035 |
BOLT,W/SPR Not Available Price: |
| 64 |
MA-19642426000 |
BRACKET Not Available Price: |
| 65 |
MA-36004159010 |
SHIM Not Available Price: |
| 66 |
MA-10312415000 |
SHIM Not Available Price: |
