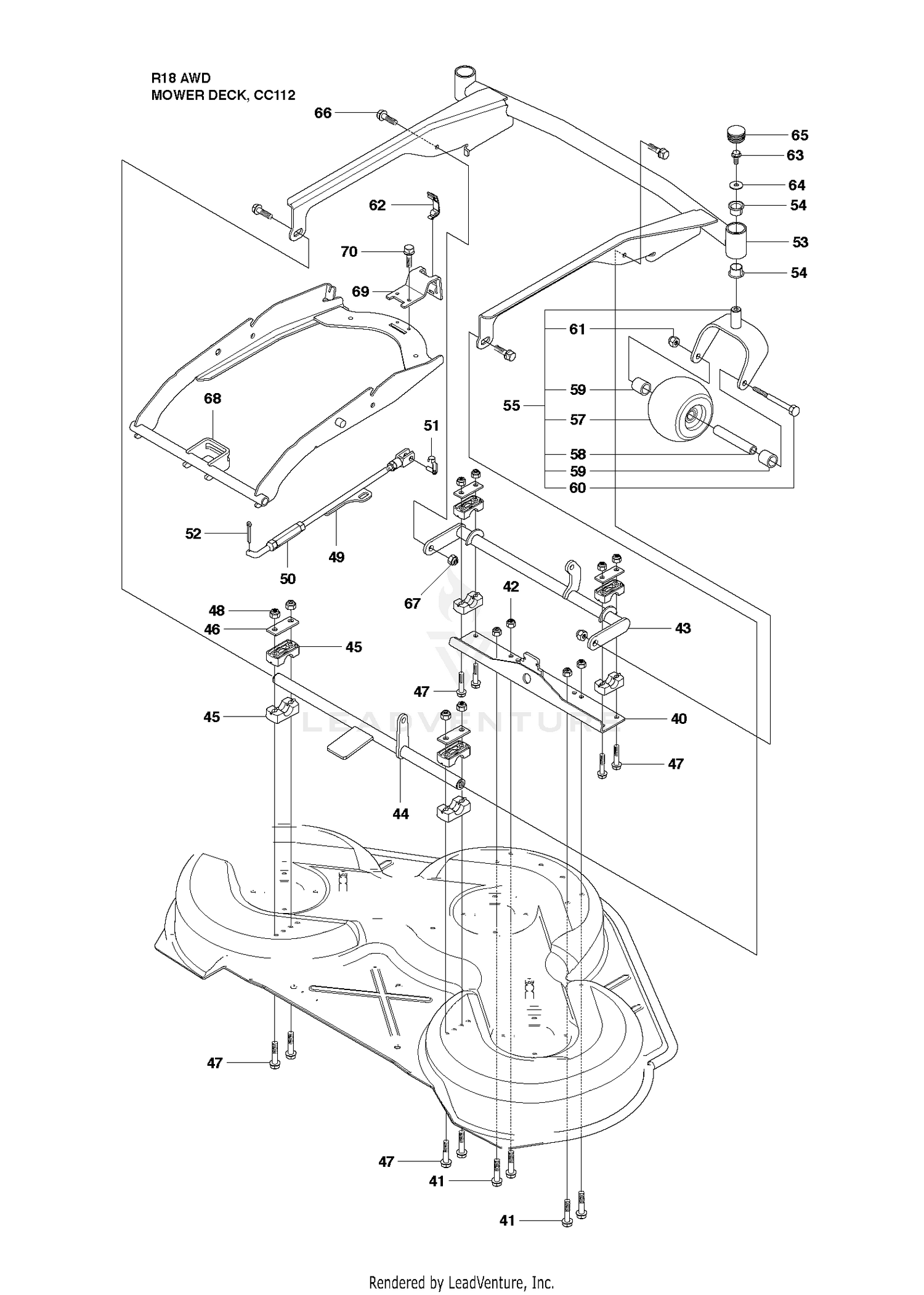

MOWER DECK / CUTTING DECK 5
Parts (54)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 110-8260 | TUBE-VENT, RH Price: $45.53 |
| 2 | 3290-412 | RIVET-BLIND Price: $3.19 |
| 3 | 92-2379 | CLAMP-HOSE Price: $0.34 |
| 5 | 110-8261 | TUBE-VENT, LH Price: $45.53 |
| 6 | 110-6186 | HOSE-FUEL Price: $15.70 |
| 7 | 112-6349 | SCREW-HWH Price: $0.27 |
| 8 | 110-5540-03 | COVER-TOOLBOX Price: $31.98 |
| 9 | 144-7257 | DECAL-SERVICE INSTRUCTIONS This part replaces 110-8252. Price: $19.95 |
| 10 | 32149-8 | NUT-KEPS Price: $0.88 |
| 11 | 115-5305 | CAP-FUEL Price: $37.42 |
| 12 | 110-8230 | LH FUEL TANK ASM Price: $616.95 |
| 13 | 108-2024 | HINGE Price: $54.81 |
| 14 | 110-5539 | SPACER Price: $18.21 |
| 15 | 95-1905 | WASHER-RUBBER Price: $1.89 |
| 16 | 105-6814 | WASHER-PLAIN Price: $0.69 |
| 17 | 3256-24 | WASHER-FLAT Price: $0.28 |
| 18 | 323-39 | SCREW-HH Price: $1.60 |
| 19 | 104-8301 | NUT-HF, NI Price: $1.09 |
| 20 | 2412-89 | CLAMP-R Price: $2.09 |
| 21 | 322-10 | SCREW-HH Price: $0.70 |
| 22 | 112-9561 | PAD-FOAM Price: $1.25 |
| 23 | 107-4543 | CLAMP Price: $13.47 |
| 24 | 104-8300 | NUT-HF, NI Price: $0.39 |
| 25 | 110-8236 | RH FUEL TANK ASM Price: $616.95 |
| 26 | 92-1239 | SPACER-SUPPORT Price: $16.42 |
| 40 | 523095301 | BRACKET Price: $64.99 |
| 41 | 725245171 | SCREW Price: $2.08 |
| 42 | 732211801 | LOCKNUT M8 Price: $3.99 |
| 43 | 502641802 | Price: Call Us |
| 44 | 523094503 | CROSS BAR Price: $59.99 |
| 45 | 506869601 | BEARING Price: $8.99 |
| 46 | 506813801 | PLATE Price: $5.99 |
| 47 | 725246151 | BOLT Price: $4.99 |
| 48 | 732211801 | LOCKNUT M8 Price: $3.99 |
| 49 | 523114201 | PARALLELL ROD ASSY Price: $49.99 |
| 50 | 502642301 | PARALLEL ROD Price: $12.99 |
| 51 | 506839802 | JOINT CPL This part replaces 506839801. Price: $19.99 |
| 53 | 523086507 | DECK FRAME WELDING ASSY This part replaces 523086503. Price: $169.99 |
| 54 | 574561901 | BEARING Price: $5.99 |
| 55 | 596316403 | PIVOT WHEEL ASSY BEARING SLEEV This part replaces 574210101. Price: $64.99 |
| 57 | 506963001 | DECK ROLLER, FRONT Price: $54.99 |
| 58 | 506810802 | PIPE Price: $7.99 |
| 59 | 506874102 | SPACER Price: $5.99 |
| 60 | 725251951 | BOLT Price: $9.99 |
| 61 | 732212001 | NUT This part replaces 732212051. Price: $3.99 |
| 62 | 503894703 | CLIP GRAY Price: $9.99 |
| 63 | 506570104 | BOLT Price: $4.99 |
| 64 | 734116441 | SPACER Price: $3.99 |
| 65 | 574034801 | PLUG Price: $3.99 |
| 66 | 506597401 | BOLT Price: $5.99 |
| 67 | 732211801 | LOCKNUT M8 Price: $3.99 |
| 68 | 523087501 | DECK ATTACHMENT Price: $119.99 |
| 69 | 523114601 | LOCK Price: $9.99 |
| 70 | 535475212 | SCREW EHHFM This part replaces 725236861. Price: $2.99 |
