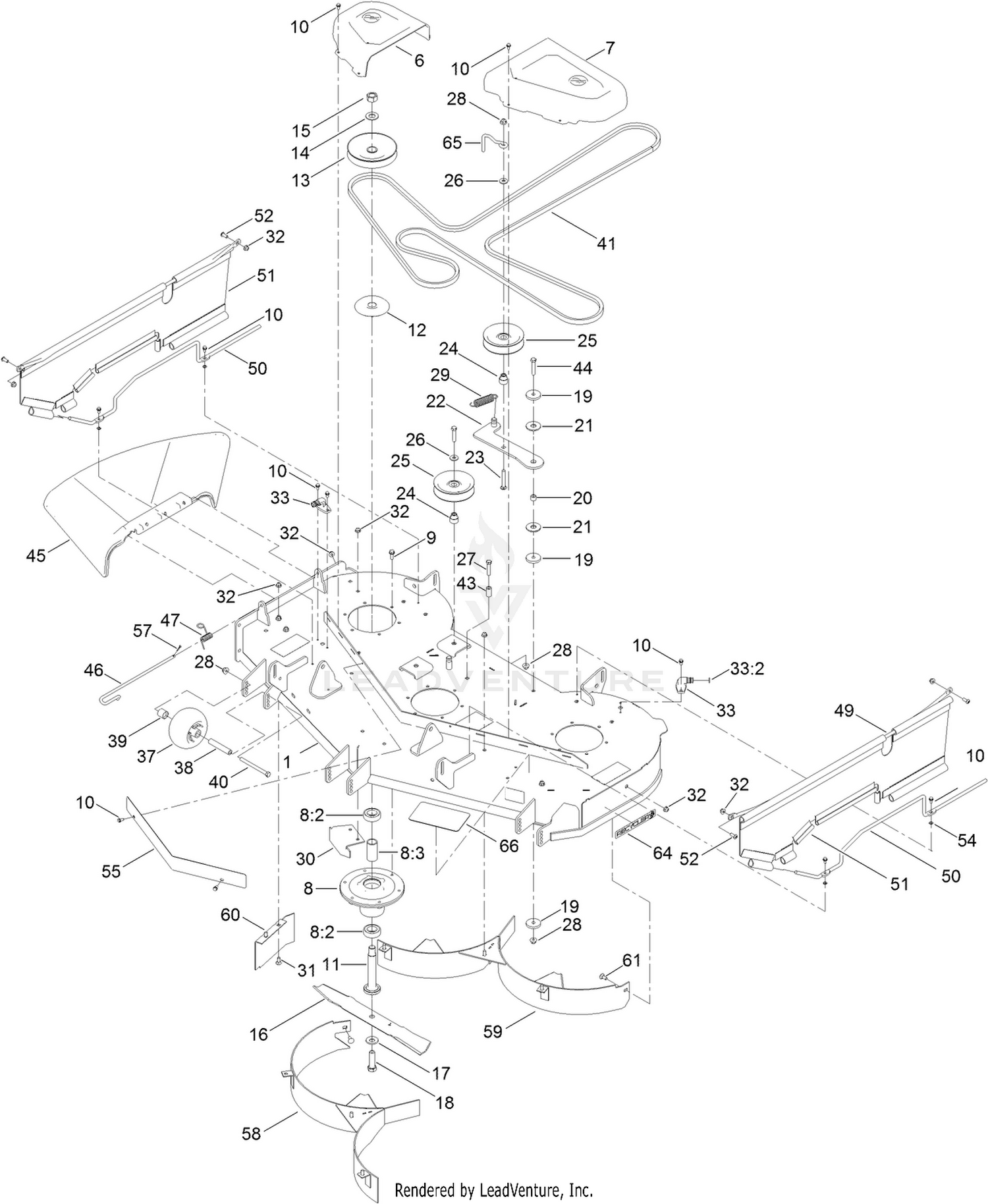

| Ref | Part Number | Description |
|---|
| 1 |
133-7068 |
DECK ASM Price: $863.78 |
| 6 |
133-9283 |
COVER-BELT, RH Price: $12.93 |
| 7 |
133-9282 |
COVER-BELT, LH Price: $14.23 |
| 8 |
139-2357 |
SPINDLE ASM Price: $74.46 |
| 9 |
32144-41 |
SCREW-TAPTITE Price: $4.79 |
| 10 |
32144-4 |
SCREW-HWH Price: $1.29 |
| 11 |
115-2642 |
SHAFT-SPINDLE Price: $34.39 |
| 12 |
138-7221 |
SHIELD-BEARING Price: $3.29 |
| 13 |
138-7223 |
PULLEY Price: $34.08 |
| 14 |
7-4150 |
WASHER Price: $1.19 |
| 15 |
139-2579 |
NUT-HEX Price: $1.46 |
| 16 |
115-4999-03 |
BLADE-MULCH, 18.75 INCH Price: $22.97 |
| 17 |
125-1736 |
WASHER-BELLEVILLE Price: $3.89 |
| 18 |
51-4060 |
SCREW-BLADE Price: $7.39 |
| 19 |
139-5802 |
WASHER-PLAIN Price: $3.05 |
| 20 |
138-7225 |
SPACER Price: $2.83 |
| 21 |
114-0463 |
WASHER-FRICTION, COMPOSITE Price: $4.79 |
| 22 |
138-7226 |
IDLER ARM ASM Price: $30.72 |
| 23 |
139-2591 |
SCREW-CARR Price: $0.29 |
| 24 |
138-7227 |
BUSHING-IDLER Price: $2.04 |
| 25 |
132-4718 |
PULLEY-IDLER, FLAT Price: $22.69 |
| 26 |
80-6990 |
WASHER-HARDENED Price: $3.06 |
| 27 |
139-2602 |
SCREW-HH Price: $0.78 |
| 28 |
119-4042 |
NUT-HF, NI Price: $0.69 |
| 29 |
138-7228 |
SPRING-EXTENSION Price: $2.61 |
| 30 |
115-9653-03 |
BAFFLE-CUTOFF Price: $15.97 |
| 31 |
139-2587 |
SCREW-CARR Price: $0.45 |
| 32 |
119-4041 |
NUT-HF Price: $0.48 |
| 33 |
133-9289 |
FITTING-WASHOUT Price: $3.86 |
| 37 |
1-603299 |
ROLLER-SCALP, ANTI Price: $21.99 |
| 38 |
138-7229 |
TUBE-SPANNER Price: $3.74 |
| 39 |
104-0892 |
SPACER-AXLE, REAR Price: $3.30 |
| 40 |
139-2592 |
SCREW-HH Price: $1.93 |
| 41 |
133-7076 |
V-BELT Price: $123.66 |
| 43 |
138-7230 |
SPACER-FENDER Price: $3.16 |
| 44 |
137-3033 |
SCREW-HH Price: $1.46 |
| 45 |
133-1212 |
DEFLECTOR-DISCHARGE Price: $51.81 |
| 46 |
138-7231 |
PIN-CHUTE Price: $6.01 |
| 47 |
138-7232 |
SPRING-TORSION Price: $1.69 |
| 49 |
133-9261 |
ROD-SUPPORT, UPPER Price: $22.86 |
| 50 |
136-4221 |
ROD-SUPPORT, LOWER Price: $22.86 |
| 51 |
136-4234 |
SIDE GUARD ASM Price: $19.02 |
| 52 |
3274-55 |
SCREW-HSBH Price: $3.19 |
| 54 |
1-803037 |
NUT-RETAINING Price: $1.39 |
| 55 |
131-3901-03 |
SHIELD-FRONT Price: $14.71 |
| 57 |
139-2614 |
PIN-COTTER Price: $0.29 |
| 58 |
136-4206-03 |
BAFFLE-RECYCLER Price: $126.98 |
| 59 |
115-9674-03 |
BAFFLE-RECYCLER, LH Price: $218.11 |
| 60 |
117-7213-03 |
GUARD-BAFFLE Price: $21.57 |
| 61 |
137-3061 |
BOLT-CARR Price: $0.48 |
| 64 |
119-2368 |
DECAL-RECYCLER Price: $3.60 |
| 65 |
136-5615 |
GUIDE-BELT, IDLER Price: $4.18 |
