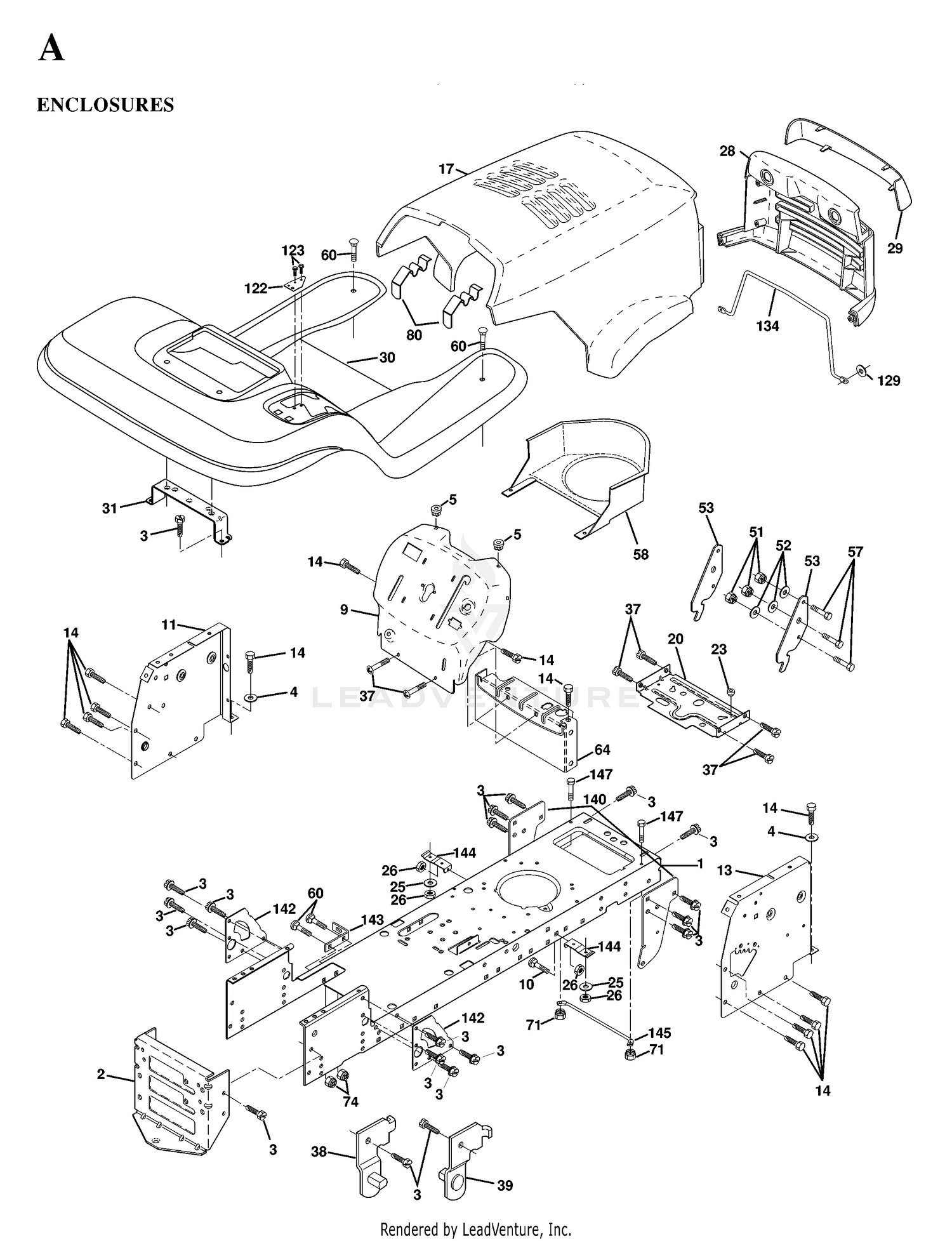

| Ref | Part Number | Description |
|---|
| 1 |
117-8029-03 |
BAND-TANK Price: $87.15 |
| 1 |
532160525 |
CHASSIS KIT This part replaces 532153871. Price: $88.41 |
| 2 |
110-5082-03 |
BRACKET-ANTI SIPHON Price: $55.49 |
| 2 |
532145009 |
KIT.DRAWBAR.SERVICE This part replaces 532140356. Price: $44.99 |
| 3 |
41140 |
ELBOW Price: $11.18 |
| 3 |
534200501 |
BOLT HEX PATCH 3/8-16X3/4 This part replaces 817490612. Price: $1.99 |
| 4 |
100-6779 |
COUPLING-FEMALE Price: $58.88 |
| 4 |
819131216 |
Washer 13/32 X 3/4 X 16 Ga. Price: $2.99 |
| 5 |
41316 |
ADAPTER-QUICK Price: $31.51 |
| 5 |
532155272 |
BUMPER.RUBBER.HOOD Price: $3.99 |
| 6 |
110-5090 |
GROMMET Price: $7.08 |
| 7 |
110-5088 |
HOSE-FILL Price: $18.92 |
| 8 |
117-7928 |
ADAPTER ASM Price: $36.88 |
| 9 |
130-7096 |
FILTER ASM Price: $109.22 |
| 9 |
532154794 |
DASH/SILKSCREENED This part replaces 532156490. Price: $21.07 |
| 10 |
121-5003 |
SUCTION TUBE ASM Price: $197.40 |
| 10 |
596728201 |
Bolts This part replaces 872140608. Price: $3.99 |
| 11 |
117-7996 |
FORK Price: $9.74 |
| 11 |
532174996 |
PANEL.DASH.LH.LTX This part replaces 532155927. Price: $9.99 |
| 12 |
100-8635 |
FORK Price: $4.91 |
| 13 |
3234-5 |
SCREW-HHF Price: $0.42 |
| 13 |
532153913 |
PANEL Price: $7.99 |
| 14 |
3256-4 |
WASHER-FLAT Price: $0.28 |
| 14 |
596564001 |
Bolts This part replaces 817490608. Price: $2.99 |
| 15 |
120-0649 |
BOLT-TAP HH Price: $12.44 |
| 16 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 17 |
119-5019 |
STOP-LID Price: $29.34 |
| 17 |
532156051 |
HOOD - LT/YT Price: $549.99 |
| 18 |
3230-2 |
BOLT-CARR Price: $0.47 |
| 19 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 20 |
532180679 |
PLATE MTG.BATTERY/FUEL TANK This part replaces 532156437. Price: $9.99 |
| 21 |
131-3317 |
DECAL-TANK Price: $38.65 |
| 22 |
120-0622 |
DECAL-WARNING Price: $9.31 |
| 23 |
42452 |
CAP-PROTECTIVE Price: $1.13 |
| 23 |
532124028 |
BUSHING.SNAP.NYL.BLK. Price: $4.99 |
| 24 |
3290-343 |
PIN-HAIR Price: $0.76 |
| 25 |
100-6991 |
ELEMENT-FILTER, GREEN Price: $63.09 |
| 25 |
100-6992 |
ELEMENT-FILTER, RED Price: $64.02 |
| 25 |
100-8642 |
SCREEN-SUCTION Price: $64.17 |
| 26 |
100-8641 |
VANE-SCREEN Price: $32.05 |
| 26 |
596322601 |
Nuts This part replaces 873800600. Price: $2.99 |
| 27 |
3230-1 |
BOLT-CARR Price: $1.49 |
| 28 |
119-9419 |
BASKET-FILTER Price: $119.92 |
| 28 |
532156880 |
GRILLE.LT.P/L HUSQVARNA.SERVIC This part replaces 532149776. Price: $256.99 |
| 29 |
532149777 |
LENS LT/PL HUSQVARNA Price: $24.99 |
| 30 |
532192813 |
FENDER W/OUT CUP HOLDER This part replaces 532156489. Price: $125.54 |
| 31 |
532139976 |
BRACKET.SUPPORT.FENDER Price: $14.99 |
| 37 |
596030701 |
Screws This part replaces 817490508. Price: $2.99 |
| 38 |
532139886 |
BRACKET LH PIVOT Price: $6.99 |
| 39 |
532139887 |
BRACKET RH PIVOT Price: $6.99 |
| 51 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 873800400. Price: $1.99 |
| 52 |
596135301 |
Washers This part replaces 819091416. Price: $2.99 |
| 53 |
532150067 |
BRACKET PNT PICK OFF LT/PL Price: $1.64 |
| 57 |
596230901 |
Screws This part replaces 874780412. Price: $2.99 |
| 58 |
532150127 |
AIR DUCT P/L/LT Price: $13.99 |
| 60 |
872140606 |
Bolt - Rd. Hd. Sq. Neckiage 3/8 16 x 3/4 Price: $4.99 |
| 64 |
532154798 |
DASH LOWER Price: $17.99 |
| 74 |
596322601 |
Nuts This part replaces 873680600. Price: $2.99 |
| 80 |
532155854 |
LATCH HOOD Price: $3.99 |
| 122 |
532157301 |
BRACKET SHIFT STLT Price: $7.99 |
| 123 |
532152927 |
SCREW.TT.#10-32X.5.3/8.FLANGE Price: $3.99 |
| 129 |
596582301 |
Washers This part replaces 819091016. Price: $2.99 |
| 134 |
532150132 |
ROD SUPPORT HOOD LT/PL HUSQ Price: $7.99 |
| 140 |
532158418 |
BRACKET SUSPENSION FRONT This part replaces 532150556. Price: $7.99 |
| 142 |
532175702 |
PLATE REINFORCEMENT This part replaces 532156095. Price: $7.99 |
| 143 |
532186689 |
BRACKET, SWAYBAR CHASSIS This part replaces 532154966. Price: $5.99 |
| 144 |
532175582 |
BRKT, FOOT REST This part replaces 532154207. Price: $4.99 |
