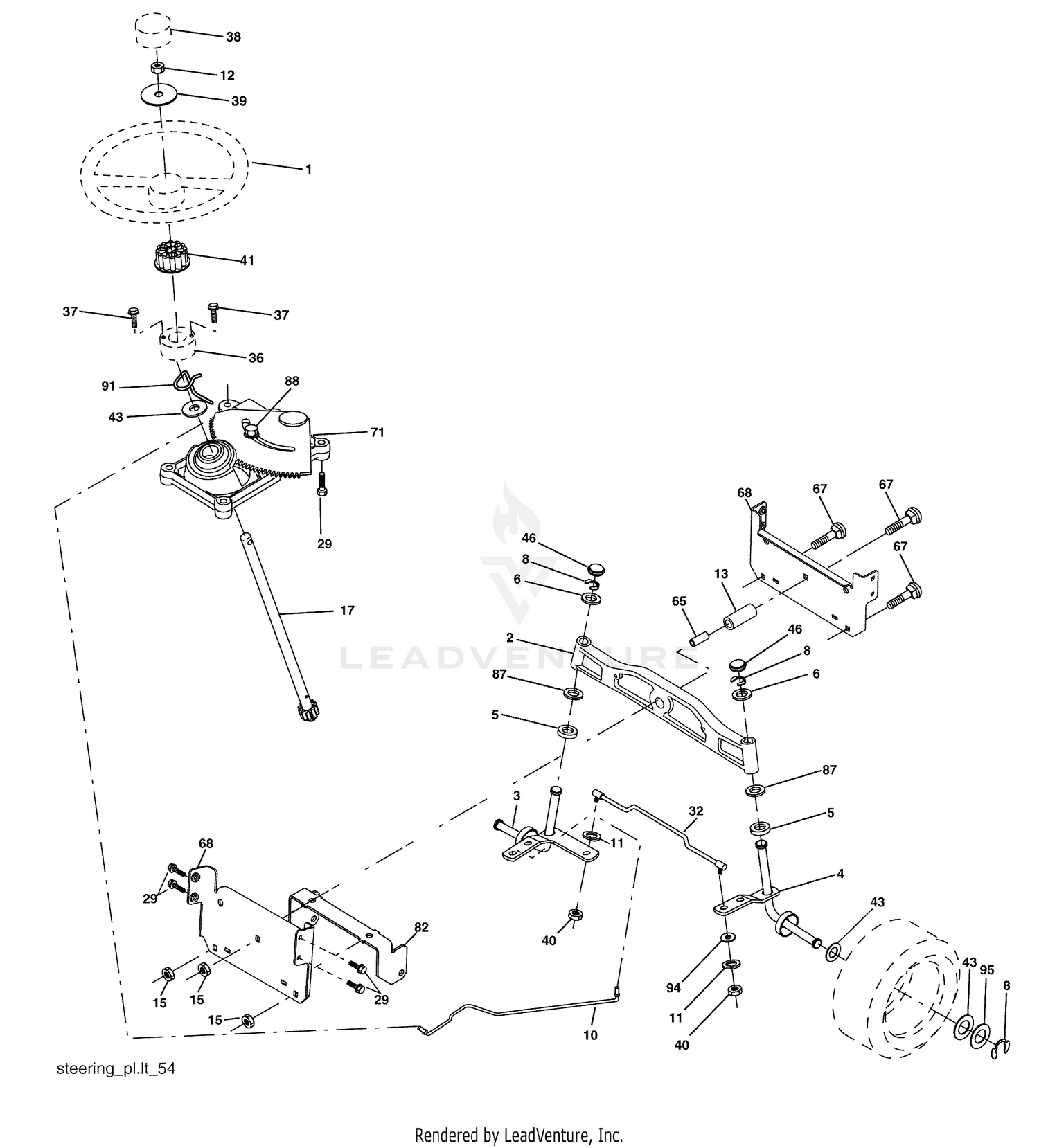

| Ref | Part Number | Description |
|---|
| 1 |
3290-384 |
PIN-LYNCH Price: $18.43 |
| 1 |
532186094 |
STEERING WHEEL.PREM.2.BLK This part replaces 532193651. Price: $169.99 |
| 2 |
532193542 |
AXLE.ASM.LT.CAST.LGHTWGHT This part replaces 532184706. Price: $119.99 |
| 2 |
55-4630 |
Suspension Assembly (Incl. Ref. #9 27) Price: Call Us |
| 3 |
323-9 |
SCREW-HH Price: $1.29 |
| 3 |
596873901 |
KIT SPINDLE ASM.PNT.LH.15 This part replaces 532169840. Price: $14.99 |
| 4 |
596873801 |
KIT SPINDLE ASM.PNT.RH.15" This part replaces 532169839. Price: $27.99 |
| 4 |
62-6980 |
SHIM-CARRIER Price: $10.00 |
| 5 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 5 |
532006266 |
WASHER THRUST This part replaces 532124931. Price: $4.99 |
| 6 |
3235-21 |
SCREW W/PATCH Price: $6.42 |
| 6 |
532121748 |
WASHER Price: $3.99 |
| 7 |
32152-2 |
NUT-LOCK, CONE Price: $1.79 |
| 8 |
74-0340 |
CUSHION-RUBBER This part replaces 54-2700. Price: $4.39 |
| 8 |
812000029 |
RING CLIP Price: $3.99 |
| 9 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 10 |
325-19 |
SCREW-HH Price: $2.57 |
| 10 |
532175121 |
DRAGLINK.15".TIRES.2001 Price: $59.99 |
| 11 |
3256-6 |
WASHER-FLAT Price: $0.34 |
| 11 |
596238701 |
Washers This part replaces 810040600. Price: $3.99 |
| 12 |
62-5580 |
BEARING-OUTSIDE Price: $6.58 |
| 12 |
873940800 |
NUT.HEX.1/2-20 Price: $3.99 |
| 13 |
532136518 |
TUBE, PIVOT AXLE Price: $7.99 |
| 13 |
68-8980 |
SPANNER-TIRE Price: $8.72 |
| 14 |
3217-6 |
NUT-HEX Price: $1.19 |
| 15 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 15 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 532145212. Price: $3.99 |
| 16 |
68-8930 |
MALE WHEEL HALF Price: $14.99 |
| 17 |
532177883 |
SHAFT ASM STRG Price: $104.99 |
| 17 |
62-5570 |
BEARING-ROLLER Price: $18.63 |
| 18 |
68-8950 |
TUBE-INNER (W/VALVE) Price: $26.99 |
| 19 |
68-8960 |
TIRE Price: $63.99 |
| 20 |
68-8920 |
FEMALE WHEEL HALF Price: $14.99 |
| 21 |
68-8940 |
HUB-CENTER Price: $29.99 |
| 22 |
54-8890 |
WHEEL BOLT Price: $0.47 |
| 23 |
302-61 |
FITTING-GREASE Price: $10.99 |
| 24 |
32153-5 |
NUT-HEX Price: $1.59 |
| 25 |
68-8900-01 |
FRONT CASTOR FORK ASM This part replaces 68-8900. Price: $108.04 |
| 26 |
3-6781 |
WASHER-THRUST Price: $1.40 |
| 27 |
94-1291 |
BUSHING This part replaces 28-9290. Price: $10.99 |
| 28 |
74-0940 |
DECAL-HOC, RH Price: Call Us |
| 29 |
68-8360 |
DECAL-HOC, LH Price: $21.99 |
| 29 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 32 |
532180580 |
ROD TIE BALL J WSL Price: $109.99 |
| 36 |
532155108 |
KIT.BUSHING.STEERING. This part replaces 532155105. Price: $6.99 |
| 37 |
532152927 |
SCREW.TT.#10-32X.5.3/8.FLANGE Price: $3.99 |
| 38 |
532193652 |
INSERT.CAP.STRG.WH.GRAY Price: $11.99 |
| 39 |
819183812 |
WASHER 9/16"ID, 2 3/8"OD Price: $7.99 |
| 40 |
873540600 |
NUT CROWNLOCK 3/8-24 Price: $3.99 |
| 41 |
587738905 |
KIT.SRVC.STEERINGSHAFT.ADAPTER This part replaces 532186737. Price: $7.99 |
| 43 |
532121749 |
WASHER Price: $2.99 |
| 46 |
532121232 |
CAP.SPINDLE.BLACK Price: $3.99 |
| 65 |
532414736 |
SPACER.BRACE.AXLE This part replaces 532160367. Price: $5.99 |
| 67 |
872110618 |
BOLT CARRIAGE Price: $4.99 |
| 68 |
531167401 |
SERVICE KIT BRACE.AXLE.1 This part replaces 532169827. Price: $19.99 |
| 71 |
531167801 |
SERVICE KIT STEERING ASM This part replaces 532175146. Price: $139.99 |
| 82 |
531170201 |
SERVICE.KIT BRACKET This part replaces 532169835. Price: $19.99 |
| 87 |
532173966 |
WASHER, FLAT .781 X 1 1/2" Price: $4.99 |
| 88 |
532175118 |
BOLT, SHOULDER 7/16-20 Price: $4.99 |
| 91 |
532175553 |
CLIP.STEERING Price: $9.99 |
| 94 |
596134901 |
GSPH This part replaces 819121414. Price: $2.99 |
