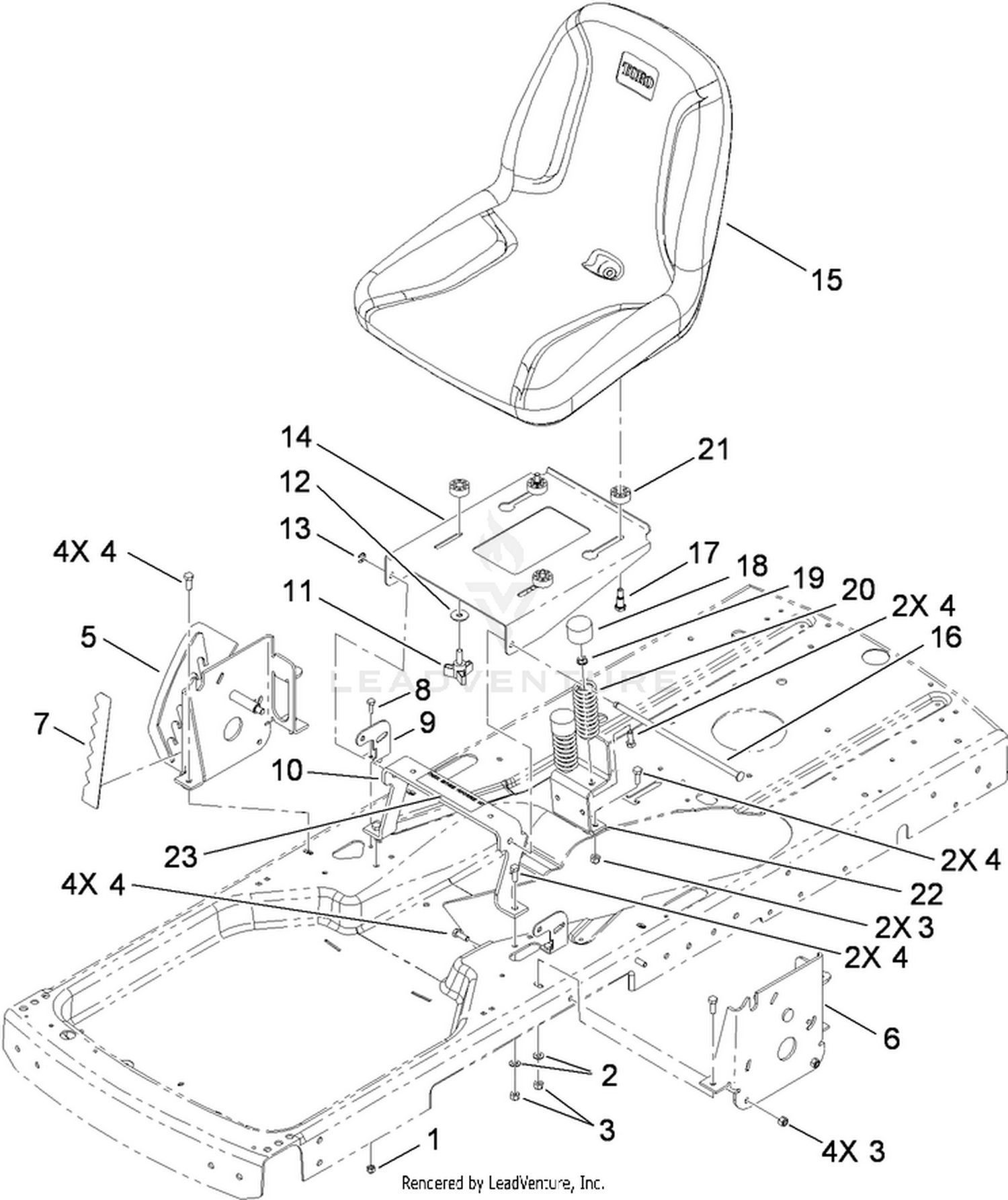

Seat Assembly
Parts (22)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 3296-42 | NUT-LOCK, NI Price: $0.28 |
| 2 | 3256-23 | WASHER-PLAIN Price: $0.28 |
| 3 | 3296-29 | NUT-LOCK, NI Price: $2.09 |
| 4 | 322-4 | SCREW-HH Price: $0.35 |
| 5 | 106-2158-03 | RH PLATE ASM Price: $54.07 |
| 6 | 106-2159-03 | LH PLATE ASM Price: $54.07 |
| 7 | 106-2223 | DECAL-HOC Price: $3.72 |
| 8 | 321-4 | SCREW-HH Price: $0.99 |
| 9 | 106-2180 | BRACKET-BELLCRANK Price: $4.49 |
| 10 | 114-3664-03 | BRACE-SEAT Price: $69.65 |
| 11 | 106-2240 | KNOB Price: $12.99 |
| 12 | 5-4460 | WASHER-PIVOT Price: $6.19 |
| 13 | 105-7004 | E-RING Price: $0.79 |
| 14 | 114-9436-03 | BRACKET-SEAT Price: $80.21 |
| 15 | 119-8829 | SEAT-18 INCH This part replaces 108-2329. Price: $218.88 |
| 16 | 105-6955 | PIN-PIVOT Price: $24.89 |
| 17 | 613529 | SCREW-SHOULDER Price: $8.73 |
| 18 | 701178 | CAP-PROTECTOR Price: $1.45 |
| 19 | 32128-25 | NUT-HF Price: $3.19 |
| 20 | 92-7054 | SPRING-COMPRESSION Price: $13.32 |
| 21 | 107-4902 | SPACER-NYLON Price: $1.05 |
| 22 | 114-9418-03 | BRACKET-STOP, SEAT Price: $14.03 |
