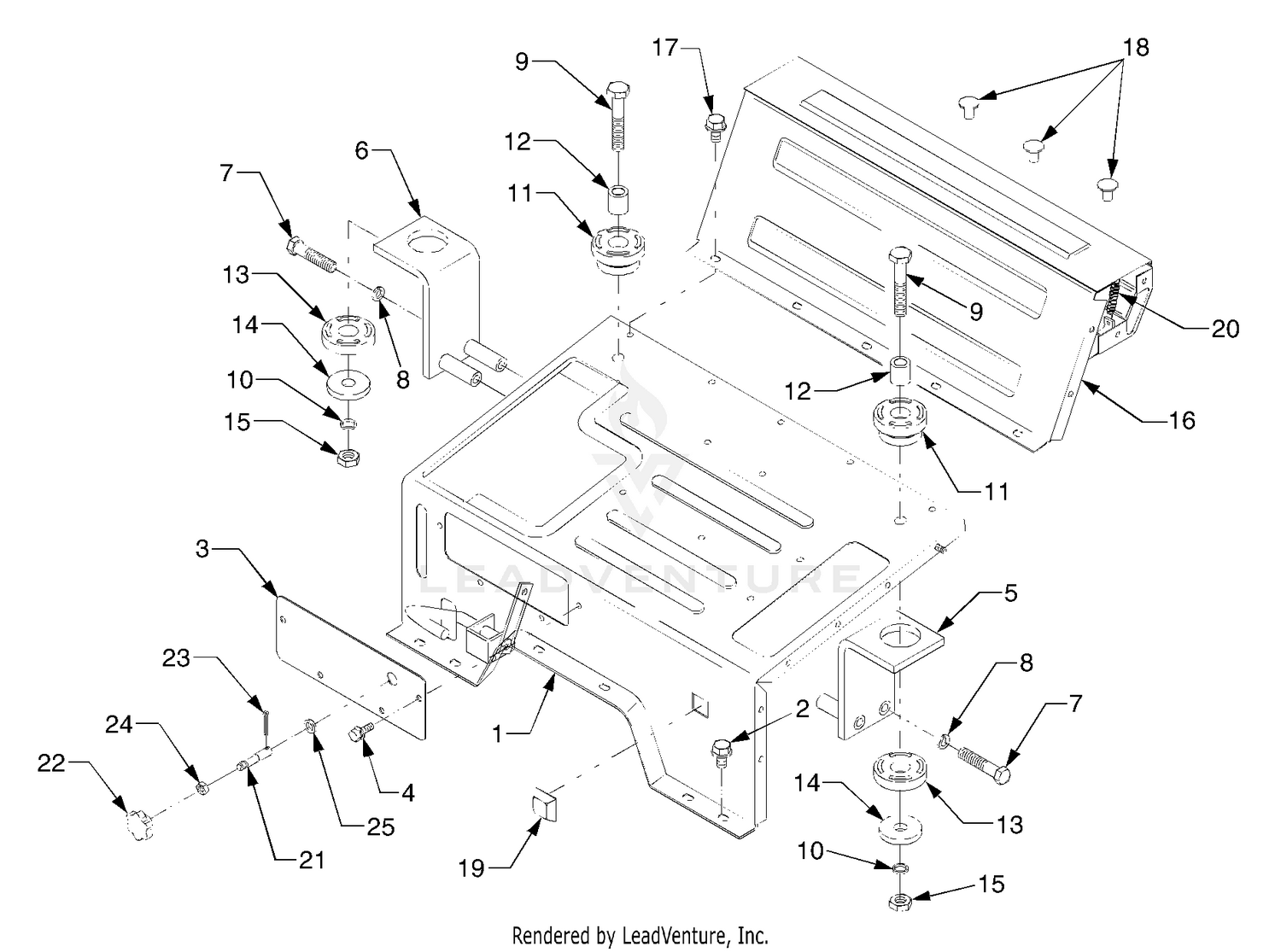

Seat Floor Group
Parts (53)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 117-8982 | TANK-HYDRAULIC This part replaces 104-9254. Price: $1,846.02 |
| 1 | DDT261570411YW | FLOOR ASSEMBLY-SEAT Not Available Price: |
| 2 | 68-6150 | BREATHER Price: $27.22 |
| 2 | 738220225 | BALL BEARING-6202-C3 SKF Price: $19.99 |
| 2 | DD-01754-50816 | HEX FLANGE BOLT Not Available Price: |
| 3 | 537203301 | CUP Price: $14.99 |
| 3 | 61-2790 | FILTER-SCREEN Price: $49.91 |
| 3 | DDT261065332YW | COVER PLATE Not Available Price: |
| 4 | 94-9411 | DIPSTICK Price: $42.51 |
| 4 | DD-01754-50816 | HEX FLANGE BOLT Not Available Price: |
| 5 | 98-3917-01 | BRACKET-FILTER Price: $45.78 |
| 5 | DD-T2610-74412 | SUPPORT-SEAT FLOOR Not Available Price: |
| 6 | 93-7498 | PLUG-PLASTIC Price: $25.26 |
| 6 | DD-T2610-74422 | SUPPORT-SEAT FLOOR Not Available Price: |
| 7 | 340-91 | FITTING-STR Price: $36.83 |
| 7 | DD-01173-51295 | HEX BOLT Not Available Price: |
| 8 | 32144-14 | SCREW-HWHTF Price: $4.29 |
| 8 | DD-04512-50120 | LOCK WASHER Not Available Price: |
| 9 | 23-8910 | STEM-BARB-90 Price: $153.60 |
| 9 | DD-01173-51690 | HEX BOLT Not Available Price: |
| 10 | 104-7546 | TANK STRAINER ASM Price: $170.48 |
| 10 | DD-04512-50160 | LOCK WASHER Not Available Price: |
| 11 | 353-508 | PLUG-HH Price: $7.96 |
| 11 | DD-T2610-70211 | CUSHION-FLOOR RUBB Not Available Price: |
| 12 | 33104-020 | SCREW-HHF Price: $2.07 |
| 12 | DD-T4620-70042 | BUSHING-CUSHION Not Available Price: |
| 13 | 92-8020 | ADAPTER-BREATHER Price: $10.50 |
| 13 | DD-T4620-70032 | CUSHION-FLOOR RUBB Not Available Price: |
| 14 | 93-7588 | COVER-TANK Price: $37.60 |
| 14 | DD-T4520-87171 | WASHER-CUSHION Not Available Price: |
| 15 | 2412-34 | CLAMP-HOSE Price: $2.14 |
| 15 | DD-02176-50160 | HEX NUT Not Available Price: |
| 16 | 93-7499 | GASKET Price: $5.91 |
| 16 | DDT261092183YW | PLATE ASSEMBLY-SEAT REA Not Available Price: |
| 17 | 98-3931 | HOSE-FORMED Price: $80.81 |
| 17 | DD-01754-50816 | HEX FLANGE BOLT Not Available Price: |
| 18 | 237-101 | O-RING Price: $2.80 |
| 18 | DD-T4810-50661 | CUSHION-HOOD Not Available Price: |
| 19 | 353-550 | PLUG-HYD, HH Price: $10.71 |
| 19 | DD-T2615-70051 | CAP-BI SPEED Not Available Price: |
| 20 | 2412-93 | CLAMP-R Price: $1.02 |
| 20 | DD-T2305-26641 | SPRING-DIFF PEDAL Not Available Price: |
| 21 | DD-T2610-39871 | SHAFT-HYD CONTROL Not Available Price: |
| 22 | 32144-10 | SCREW-HWH Price: $4.29 |
| 22 | DD-T2610-39881 | KNOB-HYD CONTROL Not Available Price: |
| 23 | 323-4 | SCREW-HH Price: $1.02 |
| 23 | DD-05511-50420 | COTTER PIN Not Available Price: |
| 24 | 33105-025 | SCREW-HHF Price: $1.56 |
| 24 | DD-02176-50100 | HEX NUT Not Available Price: |
| 25 | 63-8410 | WASHER Price: $1.76 |
| 26 | 75-6870 | HOSE-INLET, PUMP Price: $50.00 |
| 27 | 240-11 | BUSHING-FLANGE Price: $5.32 |
| 28 | 3256-24 | WASHER-FLAT Price: $0.28 |
