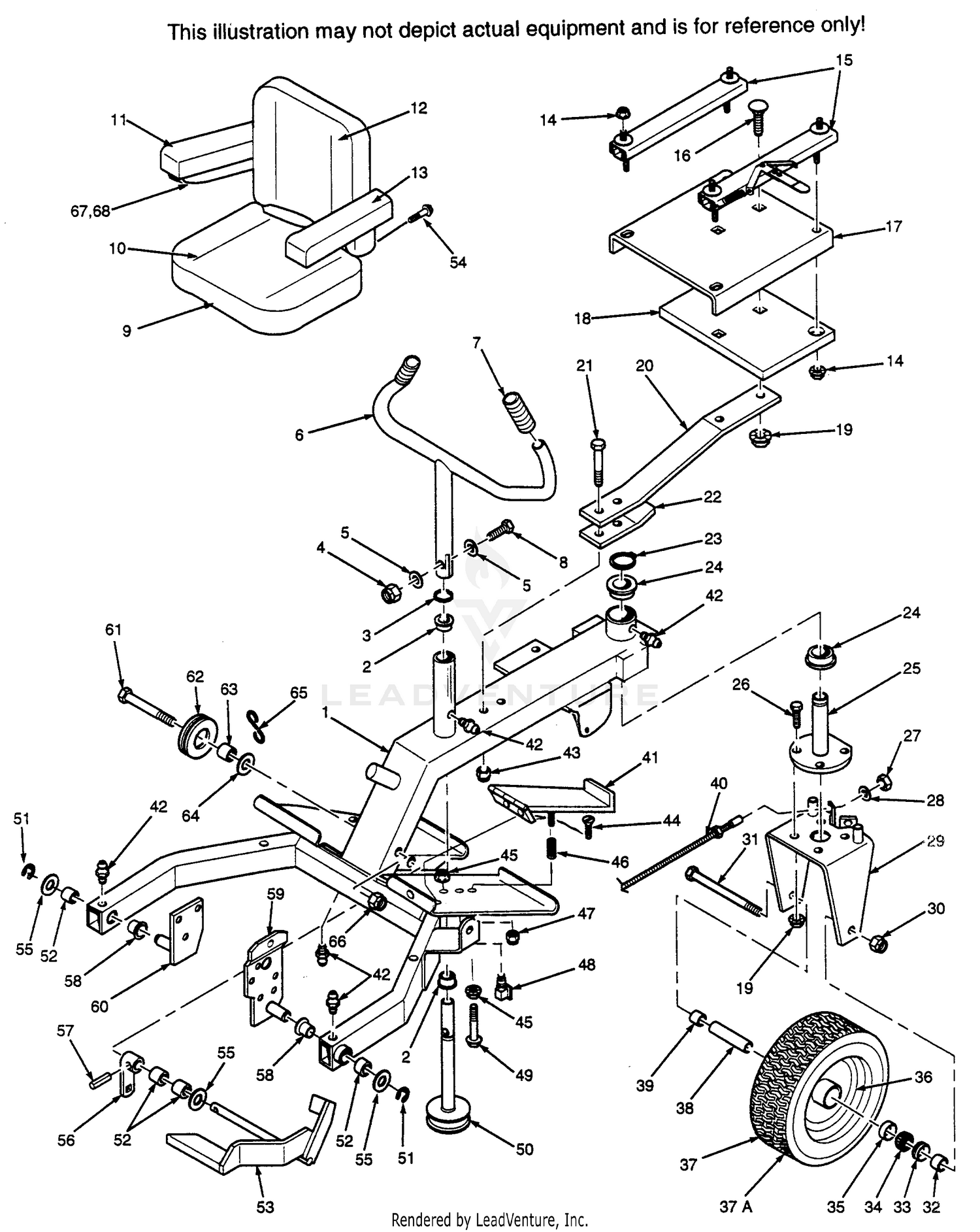

| Ref | Part Number | Description |
|---|
| 1 |
46715 |
STEERING FRAME(INCLUDES BSHGS AND FITTINGS) Price: Call Us |
| 2 |
48100-01 |
Bronze Bearing This part replaces 48100-07. Price: Call Us |
| 3 |
04050-03 |
RETAINING RING, 7/8 EXTERNAL Price: Call Us |
| 4 |
04021-10 |
HEX NUT, ELASTIC STOP 5/16-18 Price: Call Us |
| 5 |
04040-15 |
FLAT WASHER, 5/16(3/8 X 7/8 X 13 GA.) Price: Call Us |
| 6 |
46029 |
STEERING HANDLE(INCLUDES ITEM 7) Price: Call Us |
| 7 |
48159 |
GRIP Price: Call Us |
| 8 |
04001-12 |
BOLT, HEX HD., 5/16-18 X 1-3/4" Price: Call Us |
| 9 |
482119 |
Seat Assy. This part replaces 48930. Price: Call Us |
| 10 |
482111 |
Cushion, Lower Seat This part replaces 48704-03. Price: Call Us |
| 11 |
482108 |
Arm Pad, RH This part replaces 48704-04. Price: Call Us |
| 12 |
484716 |
BACK CUSHION This part replaces 48704-02. Price: Call Us |
| 13 |
482107 |
Arm Pad, LH This part replaces 48704-05. Price: Call Us |
| 14 |
04019-03 |
SERR. FL. HH. NUT, 5/16-18 Price: Call Us |
| 15 |
46570 |
Seat Adjuster Track This part replaces 48931. Price: Call Us |
| 16 |
04003-05 |
BOLT, RDHD CARR. 3/8-16 X 1-1/2 Price: Call Us |
| 17 |
421342 |
SEAT PLATE Price: Call Us |
| 18 |
42482 |
BALLAST, SEAT MOUNT(72" CUTTER DECK ONLY) Price: Call Us |
| 19 |
04019-04 |
SERR FL. HEX NUT, 3/8-16 Price: Call Us |
| 20 |
42026 |
SEAT SPRING Price: Call Us |
| 21 |
04001-83 |
BOLT, HEX HD., 7-16-14 X 3-1/2 Price: Call Us |
| 22 |
42366 |
REINFORCEMENT, SEAT SPRING Price: Call Us |
| 23 |
04050-05 |
RETAINING RING, 1-1/8" EXTERNAL Price: Call Us |
| 24 |
48100-02 |
BRONZE BUSHING Price: Call Us |
| 25 |
45008 |
REAR WHEEL PIVOT Price: Call Us |
| 26 |
04001-32 |
Bolt, Hex Head 3/8-16 x 1-1/4", Kawasaki FX / FT & FT-EFI Price: Call Us |
| 29 |
45035 |
REAR WHEEL YOKE Price: Call Us |
| 30 |
04021-13 |
HEX ELASTIC STOP NUT, 5/8-11 Price: Call Us |
| 31 |
04001-40 |
BOLT, HEX HD. 5/8-11 X 9" Price: Call Us |
| 32 |
43020-01 |
SPACER, REAR WHEEL, SHORT Price: Call Us |
| 33 |
481897 |
Seal, Wheel Bearing This part replaces 48005-06. Price: Call Us |
| 34 |
481896 |
Cone, Bearing This part replaces 48005-05. Price: Call Us |
| 35 |
481895 |
Cup, Bearing This part replaces 48005-04. Price: Call Us |
| 36 |
481894 |
Rim Assy, This part replaces 48005-03. Price: Call Us |
| 37 |
48005 |
REAR WHEEL ASSY.(INCLUDES ITEMS 33-36, 37A) Price: Call Us |
| 37A |
481893 |
Tire Only This part replaces 48005-02. Price: Call Us |
| 38 |
43021 |
SLEEVE, REAR WHEEL Price: Call Us |
| 39 |
43020-02 |
SPACER, REAR WHEEL Price: Call Us |
| 40 |
48828 |
CABLE, STEERING(INCLUDES HARDWARE) Price: Call Us |
| 41 |
45606 |
PEDAL, FOOT SAFETY SWITCH Price: Call Us |
| 42 |
48114-04 |
GREASE FITTING Price: Call Us |
| 43 |
04021-11 |
HEX ELASTIC STP NUT, 7/16-14 Price: Call Us |
| 44 |
04010-09 |
SCREW, SLOTTED FLAT HD #10-32 X 3/4" Price: Call Us |
| 45 |
04019-02 |
SERR. FL. HEX NUT, 1/4-20 Price: Call Us |
| 46 |
481056 |
SPRING, FOOT SAFETY SWITCH Price: Call Us |
| 47 |
04021-08 |
HEX NUT, ELASTIC STOP LOCK, 1/4-20 Price: Call Us |
| 48 |
481476 |
Switch, Foot Safety This part replaces 48026. Price: Call Us |
| 49 |
04001-02 |
BOLT, HEX HD., 1/4-20 X 1-3/4 Price: Call Us |
| 50 |
45009 |
STEERING SHAFT Price: Call Us |
| 51 |
04050-02 |
RETAINING RING 3/4 EXT. "E" Price: Call Us |
| 52 |
48100-06 |
BRONZE BUSHING, OILLUBE Price: Call Us |
| 53 |
45502 |
FOOT PEDAL Price: Call Us |
| 54 |
04010-22 |
Screw w/washer, 1/4-20 x .75" This part replaces 48704-06. Price: Call Us |
| 55 |
04041-08 |
FLAT WASHER, 3/4 X 1-1/4 X 16 GA. Price: Call Us |
| 56 |
45506 |
FOOT PEDAL ARM Price: Call Us |
| 57 |
04065-01 |
PIN, DRIVE LOCK 3/16 X 1-1/4" Price: Call Us |
| 58 |
48100-03 |
BRONZE BUSHING, OILLUBE Price: Call Us |
| 59 |
45488 |
SULKY MTG. BRKT. L.H. Price: Call Us |
| 60 |
45256 |
SULKY MTG. BRKT. R.H. Price: Call Us |
| 61 |
04001-37 |
BOLT, HEX HD., 1/2-13 X 5-1/2" Price: Call Us |
| 62 |
48208 |
PULLEY, WINCH CABLE Price: Call Us |
| 63 |
48100-04 |
BRONZE BUSHING, OILLUBE Price: Call Us |
| 65 |
44028 |
RETAINER, WINCH CABLE Price: Call Us |
| 67 |
482109 |
Bracket, Armrest LH This part replaces 48831-01. Price: Call Us |
