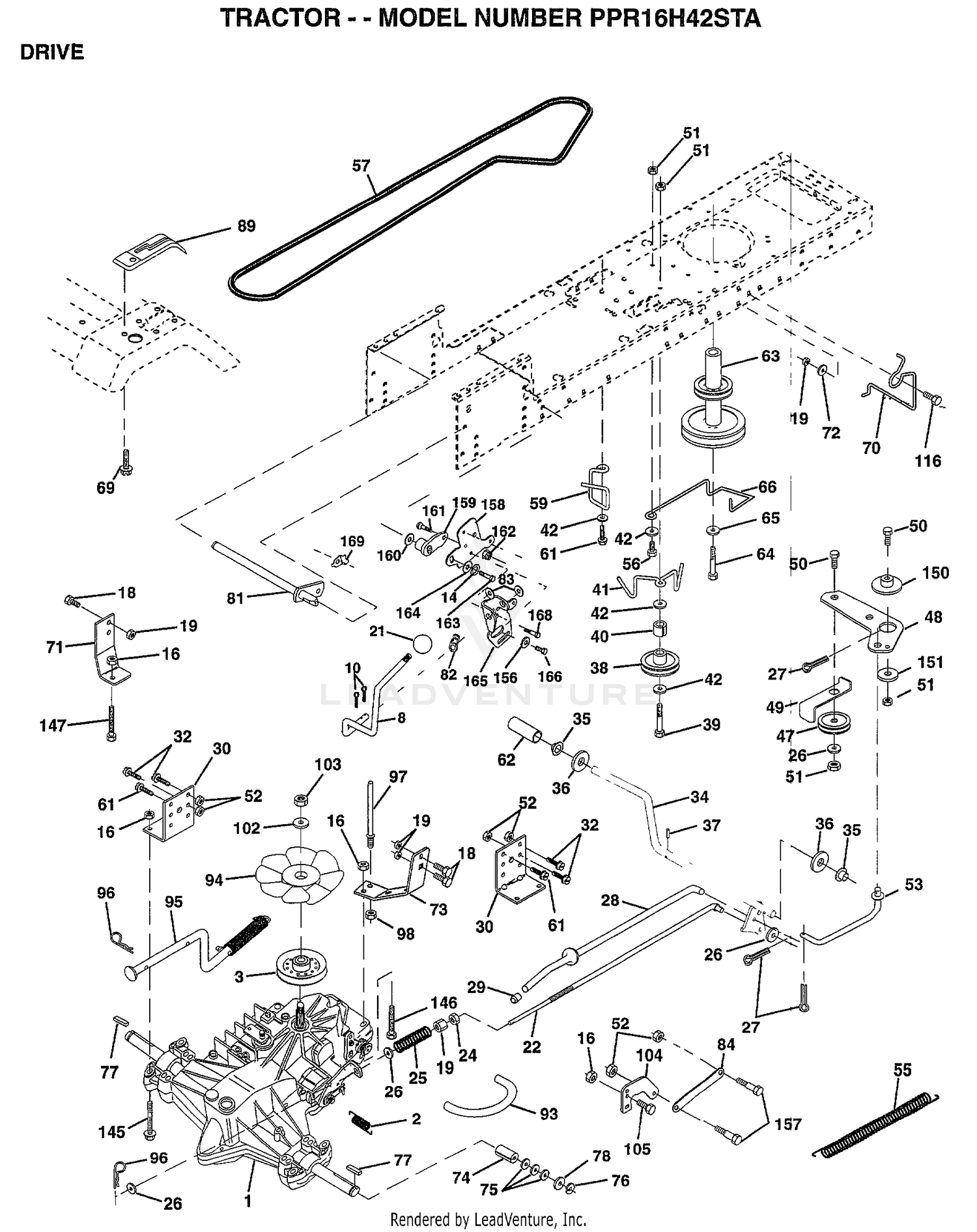

| Ref | Part Number | Description |
|---|
| 1 |
SUPPLIER |
CHECK WITH SUPPLIER Price: Call Us |
| 2 |
142431 |
SPRING RET BRAKE Price: Call Us |
| 2 |
43-0090 |
SCREW-HH Price: $8.05 |
| 3 |
143995 |
PULLEY.TRANSAXLE Price: Call Us |
| 3 |
48-8070 |
WASHER-LOCK Price: $0.47 |
| 7 |
48-9590 |
WASHER-LOCK Price: $0.25 |
| 8 |
165619 |
ROD.SHIFT.FENDER.ADJ.LT.CRD Price: Call Us |
| 10 |
76020416 |
PIN COTTER 1/8 Price: Call Us |
| 12 |
3253-4 |
WASHER-LOCK This part replaces 42-9850. Price: $0.25 |
| 14 |
10040400 |
LOCKWASHER Price: Call Us |
| 15 |
58-3590 |
DOWEL Price: $5.50 |
| 16 |
73800500 |
NUT Price: Call Us |
| 16 |
92-1753 |
COUPLING-SPRING Price: $696.17 |
| 17 |
98-1211-03 |
PLATE-ADAPTER, PUMP Price: $306.66 |
| 18 |
74780616 |
BOLT Price: Call Us |
| 19 |
3213-20 |
SCREW-HH Price: $1.76 |
| 19 |
73800600 |
NUT Price: Call Us |
| 20 |
3253-7 |
WASHER-LOCK Price: $0.27 |
| 21 |
140845 |
KNOB DLX BLK/BLK Price: Call Us |
| 22 |
145627 |
ROD.BRAKE.HYDRO. Price: Call Us |
| 22 |
98-7066-03 |
BRACKET-DAMPER Price: $48.17 |
| 24 |
73350600 |
NUT Price: Call Us |
| 25 |
106888X |
SPRING ROD LT Price: Call Us |
| 26 |
19131316 |
WASHER Price: Call Us |
| 27 |
76020412 |
COTTER PIN Price: Call Us |
| 28 |
145204 |
ROD.BRAKE.PARK.LT Price: Call Us |
| 28 |
323-11 |
SCREW-HH Price: $1.08 |
| 29 |
71673 |
PLUNGER CAP T Price: Call Us |
| 29 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 30 |
130807 |
TRANSAXLE MTG BKT Price: Call Us |
| 31 |
32128-21 |
NUT-HF Price: $0.39 |
| 32 |
74760512 |
BOLT Price: Call Us |
| 33 |
100-5633 |
SPACER-COUPLING Price: $149.21 |
| 34 |
155071 |
SHAFT ASM-PEDAL F Price: Call Us |
| 34 |
98-3024 |
MOUNT-ENGINE Price: $103.88 |
| 35 |
120183X |
NYLON BEARING Price: Call Us |
| 35 |
121-9076 |
MOUNT-ENGINE This part replaces 83-1030. Price: $37.76 |
| 36 |
19211616 |
WASHER LT Price: Call Us |
| 36 |
98-1207-03 |
BRACKET-FRONT, LH Price: $74.95 |
| 37 |
1572H |
SUB= 2882J Price: Call Us |
| 37 |
98-1206-03 |
BRACKET-FRONT, RH Price: $74.95 |
| 38 |
131494 |
FLAT IDLER PULLEY Price: Call Us |
| 38 |
98-1200-03 |
SPACER Price: $22.92 |
| 39 |
74760644 |
BOLT Price: Call Us |
| 39 |
98-1204-03 |
BRACKET-ENGINE, LH REAR Price: $49.06 |
| 40 |
4470J |
SPACER T Price: Call Us |
| 40 |
98-1205-03 |
BRACKET-ENGINE, RH REAR Price: $46.61 |
| 41 |
32128-20 |
NUT-HF Price: $0.99 |
| 42 |
19131312 |
WASHER Price: Call Us |
| 42 |
323-11 |
SCREW-HH Price: $1.08 |
| 43 |
33116-070 |
SCREW-HH Price: $4.14 |
| 44 |
32128-43 |
NUT-FLANGE Price: $0.94 |
| 45 |
48-9530 |
NUT Price: $1.78 |
| 46 |
80-6990 |
WASHER-HARDENED Price: $3.06 |
| 47 |
127783 |
SUB= 139245 Price: Call Us |
| 47 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 48 |
154407 |
BELLCRANK.CLUTCH Price: Call Us |
| 48 |
63-7400 |
WASHER-REBOUND Price: $1.70 |
| 49 |
123205X |
RETAIN BELT Price: Call Us |
| 49 |
87-5100 |
WASHER-SNUBBING Price: $3.46 |
| 50 |
43-5940 |
WASHER-LOCK, SPRING Price: $0.70 |
| 50 |
74760624 |
SUB= 74930624 Price: Call Us |
| 51 |
73680600 |
SUB= 73690600 Price: Call Us |
| 51 |
98-1212 |
PIN-PLATE, PUMP Price: $38.00 |
| 52 |
100-5634 |
BOLT-SHOULDER Price: $9.16 |
| 52 |
73680500 |
SUB= 73690500 Price: Call Us |
| 53 |
33114-020 |
SCREW-HH Price: $0.28 |
| 54 |
70-8470 |
SCREW-HH Price: $1.76 |
| 55 |
43-3180 |
SCREW-HH Price: $18.78 |
| 56 |
43-3210 |
SCREW-HH Price: $4.27 |
| 56 |
74760620 |
Bolt Fin Flex 3/8-16unc X 1-1/4 Price: Call Us |
| 59 |
140312 |
KEEPER BELT CNTSP Price: Call Us |
| 61 |
17490612 |
SCREW Price: Call Us |
| 62 |
8883R |
PEDAL COVER T Price: Call Us |
| 63 |
140186 |
PULLEY.ENGINE Price: Call Us |
| 64 |
71170764 |
BOLT Price: Call Us |
| 65 |
10040700 |
LOCKWASHER Price: Call Us |
| 66 |
154778 |
KEEPER-BELT Price: Call Us |
| 69 |
142432 |
SCREW HEXWSH H-L Price: Call Us |
| 70 |
134683 |
KEEPER BELT ENG Price: Call Us |
| 71 |
140158 |
STRAP TORQ LH HYD Price: Call Us |
| 72 |
19132012 |
WASHER Price: Call Us |
| 74 |
121199X |
SPACER SPLIT Price: Call Us |
| 75 |
121749X |
WASHER Price: Call Us |
| 76 |
12000001 |
E-RING LT Price: Call Us |
| 77 |
123583X |
SQUARE KEY Price: Call Us |
| 78 |
121748X |
WASHER Price: Call Us |
| 81 |
165591 |
SHAFT.ASM.CROSS Price: Call Us |
| 83 |
19171216 |
WASHER Price: Call Us |
| 84 |
165815 |
LINK.TRANSAXLE.LT/YT Price: Call Us |
| 89 |
164893X428 |
CONSOLE.SHIFT.LT Price: Call Us |
| 95 |
167696 |
CONTROL.ASM.BYPASS.HYDRO.99 Price: Call Us |
| 96 |
4497H |
RETAINER M Price: Call Us |
| 97 |
140469 |
BOLT KEEPER RH Price: Call Us |
| 98 |
73510600 |
NUT Price: Call Us |
| 102 |
141322 |
WASHER BELLEVILLE Price: Call Us |
| 103 |
73940800 |
SUB= 73360800 Price: Call Us |
| 104 |
140156 |
ARM CONTROL HYDRO Price: Call Us |
| 105 |
71070516 |
SCREW CAP 5/16-18 Price: Call Us |
| 116 |
72110610 |
BOLT RDHD 3/8-16 Price: Call Us |
| 145 |
74490540 |
BOLT.HEX.FLGHD Price: Call Us |
| 146 |
74490536 |
BOLT.HEX.FLGHD. Price: Call Us |
| 147 |
74490524 |
BOLT.HEX.FLGHD Price: Call Us |
| 150 |
165850 |
BUSHING.BELLCRANK.GRD.DR Price: Call Us |
| 151 |
19133210 |
WASHER Price: Call Us |
| 156 |
166002 |
WASHER.SRRTD.5/16 Price: Call Us |
| 158 |
165589 |
BRKT.SHIFT.MOUNT Price: Call Us |
| 159 |
165494 |
HUB.SHIFT Price: Call Us |
| 160 |
19292016 |
WASHER Price: Call Us |
| 161 |
72140406 |
BOLT T Price: Call Us |
| 162 |
73680400 |
SUB= 73690400 Price: Call Us |
| 163 |
74780416 |
NLA Price: Call Us |
| 164 |
19091010 |
WASHER.5/8X.281X10GA Price: Call Us |
| 165 |
165623 |
BRKT.PIVOT.LEVER Price: Call Us |
| 166 |
166880 |
SCREW.5/16-18X5/8 Price: Call Us |
| 168 |
165492 |
BOLT.SHOULDER.5/16-18X.561 Price: Call Us |
