| Ref | Part Number | Description |
|---|
| 1 |
3219-2 |
NUT-HEX Price: $0.37 |

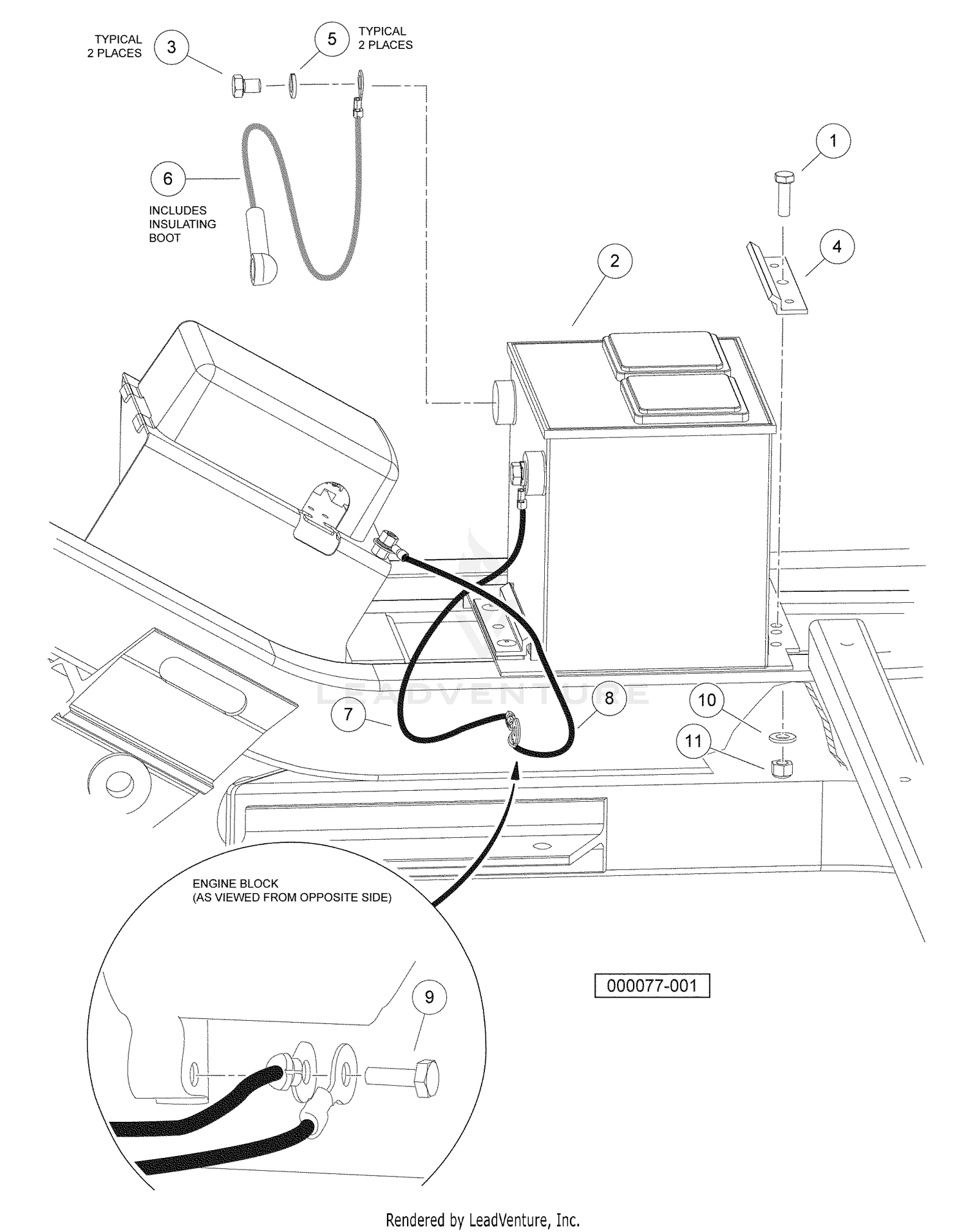

| 1 |
603000116 |
SCREW HEX CAP Price: $1.99 |
| 2 |
3255-8 |
WASHER-LOCK Price: $0.31 |
| 2 |
603000002 |
BATTERY, 12 VOLT Price: $179.99 |
| 3 |
21-8270 |
PIN-DOWEL Price: $6.65 |
| 3 |
603000224 |
SCREW Price: $3.99 |
| 4 |
21-7720 |
WASHER-THRUST Price: $3.39 |
| 4 |
603000576 |
CLAMP - BATTERY Price: $7.99 |
| 5 |
110-4143 |
KIT-REPLACEMENT, REVACYCLE GEARS This part replaces 24-8790. Price: $702.98 |
| 5 |
603000890 |
LOCKWASHER, 3/8 STAINLESS STL Price: $2.99 |
| 6 |
110-4143 |
KIT-REPLACEMENT, REVACYCLE GEARS This part replaces 21-7690. Price: $702.98 |
| 6 |
603001050 |
WIRE ASM, #6 RED, AWD Price: $17.99 |
| 7 |
21-7730 |
WASHER-THRUST, PINION Price: $2.65 |
| 7 |
603001051 |
WIRE ASM, #6 BLK, AWD, 300 Price: $44.99 |
| 8 |
603001052 |
WIRE ASM, #6 BLK, AWD, 250 Price: $11.99 |
| 9 |
43-6760 |
BEARING-ROLLER, CONE TAPER Price: $113.20 |
| 9 |
603001167 |
BOLT, M6 X 1 X 16 LOCTITE Price: $2.99 |
| 10 |
43-6750 |
BEARING-TAPER, CUP Price: $69.64 |
| 10 |
603000065 |
WASHER, 5/16 TYPE A FLAT Price: $1.99 |
| 11 |
92-1773 |
SCREW-HHF Price: $3.05 |
| 12 |
21-7830 |
COVER-GEAR Price: $26.87 |
| 13 |
32144-112 |
SCREW-HWH Price: $0.99 |
| 14 |
86-7230 |
GEAR-INPUT, TRANSMISSION Price: $610.12 |
| 15 |
43-6710 |
SHIM-PINION (.003) Price: $2.17 |
| 16 |
43-6711 |
SHIM-PINION (.005) Price: $3.80 |
| 17 |
43-6712 |
SHIM-PINION (.010) Price: $3.19 |
| 18 |
43-6713 |
SHIM-PINION (.030) Price: $6.99 |
| 19 |
3210-7 |
SCREW-HH Price: $0.61 |
| 20 |
21-7850 |
PLUG-CUP Price: $23.35 |
| 21 |
43-6550 |
RING-SNAP Price: $0.94 |
| 22 |
46-2210 |
SHIM-BEARING, FRONT Price: $6.91 |
| 23 |
254-91 |
CONE-BEARING Price: $18.65 |
| 24 |
254-90 |
BEARING-CUP Price: $11.29 |
| 25 |
21-8020 |
SPACER-BEARING Price: $28.84 |
| 26 |
86-9580 |
UPPER HOUSING SUB ASM Price: $961.30 |
| 27 |
254-66 |
CUP-BEARING, ROLLER Price: $17.92 |
| 28 |
254-65 |
BEARING-ROLLER, CONE Price: $62.13 |
| 30 |
32121-15 |
PIN-ROLL Price: $1.60 |
| 31 |
21-7700 |
SHAFT-MATE, PINION Price: $54.05 |
| 32 |
21-7770 |
SCREW-GEAR, DRIVE Price: $1.97 |
| 33 |
21-7670 |
CASE-DIFFERENTIAL Price: $687.90 |
| 34 |
43-6840 |
HOUSING-LOWER Price: $1,467.48 |
| 35 |
21-8120 |
SHIM-BEARING, DIFFERENTIAL (.030) Price: $5.43 |
| 36 |
21-8110 |
SHIM-BEARING, DIFFERENTIAL (.010) Price: $3.73 |
| 37 |
21-8100 |
SHIM-BEARING, DIFFERENTIAL (.005) Price: $3.46 |
| 38 |
21-8090 |
SHIM-BEARING, DIFFERENTIAL (.003) Price: $1.09 |
| 39 |
72-9420 |
VENT Price: $6.85 |
| 42 |
3217-9 |
NUT-HH Price: $0.37 |
| 43 |
3256-5 |
WASHER-FLAT Price: $0.27 |
| 44 |
24-9830-01 |
AXLE SUPPORT ASM This part replaces 24-9830. Price: $83.43 |
| 45 |
3253-21 |
WASHER-LOCK Price: $0.28 |
