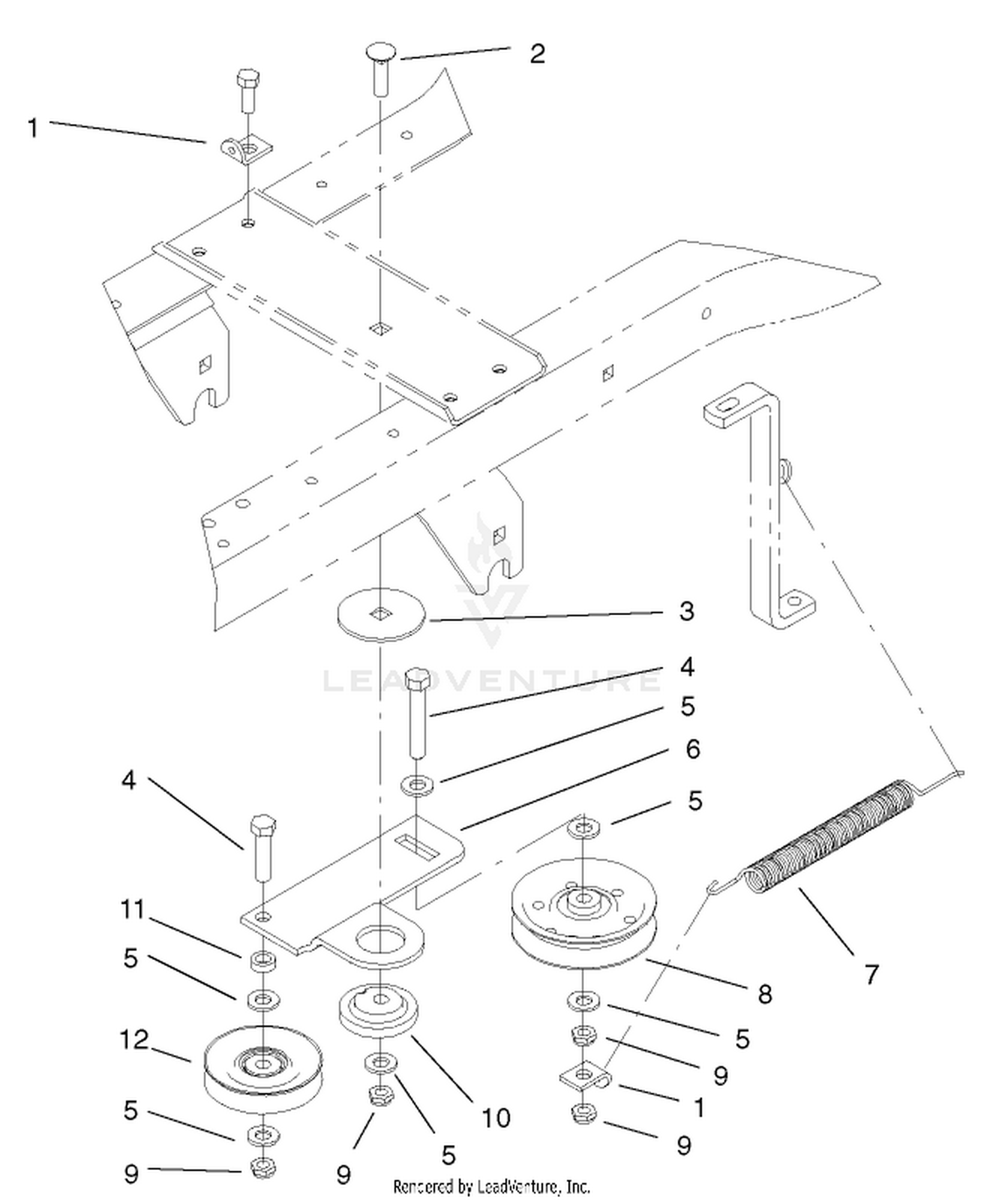

Hydro Drive Assembly
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 2534 | CLIP - SPRING Price: $3.42 |
| 2 | 119-4162 | SCREW-CARR This part replaces 3231-25. Price: $1.73 |
| 3 | 111419 | WASHER-BEARING Price: $29.40 |
| 4 | 323-10 | SCREW-HH Price: $0.89 |
| 5 | 3256-24 | WASHER-FLAT Price: $0.28 |
| 6 | 92-6900 | ARM - IDLER Price: $27.99 |
| 7 | 79-7530 | SPRING - CLUTCH Price: $21.19 |
| 8 | 92-7101 | PULLEY-IDLER, FLAT Price: $21.88 |
| 9 | 121-4600 | NUT-HEX This part replaces 3296-59. Price: $0.78 |
| 10 | 111418 | BUSHING Price: $18.56 |
| 11 | 93-3658 | Spacer Price: $3.47 |
