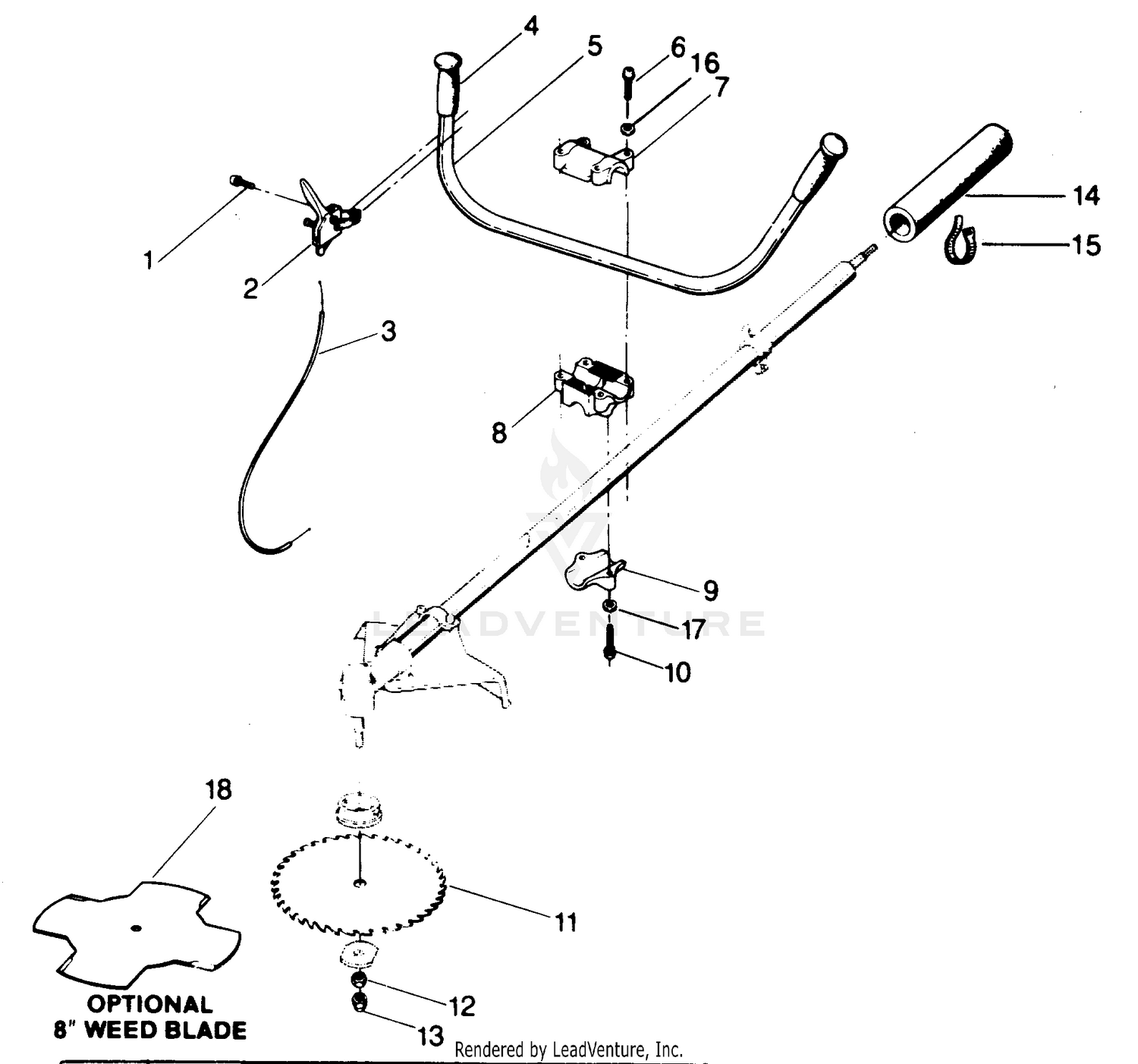

| Ref | Part Number | Description |
|---|
| 0 |
952701576 |
Brush Blade Adaptor Kit Price: $49.95 |
| 1 |
530094210 |
Screw - Phil. Hd. - 5 x 25mm.- Throttle Control Price: $0.99 |
| 2 |
530093957 |
Ass'y. - Throttle Control Price: $14.99 |
| 3 |
120-0404 |
BRACKET-HIGH HOC (LH) Price: $71.73 |
| 3 |
530093955 |
Cable - Throttle Price: $8.99 |
| 4 |
120-0405 |
BRACKET-HIGH HOC (RH) Price: $71.73 |
| 4 |
530093947 |
Grip - Handlebar Price: $3.33 |
| 5 |
119-0626 |
SHIM-ROLLER Price: $3.23 |
| 5 |
530093946 |
Handlebar Price: $5.92 |
| 6 |
106-9758 |
SCREW-CARR Price: $2.99 |
| 6 |
530015337 |
Bolt - Clamp - Top Price: $1.99 |
| 7 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 7 |
530093962 |
Cover - Top - Clamp Price: $3.33 |
| 8 |
112-7451 |
SCREW-TAP Price: $2.17 |
| 8 |
530094393 |
Clamp - Handlebar Price: $3.33 |
| 9 |
48-9220 |
WASHER-PLAIN Price: $0.87 |
| 9 |
530093963 |
Cover - Bottom - Clamp Price: $3.33 |
| 10 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 10 |
530001648 |
Bolt - Clamp - Bottom Price: $1.99 |
| 11 |
322-16 |
SCREW-HH Price: $3.39 |
| 11 |
952701547 |
Brush Blade Price: Call Us |
| 12 |
530091595 |
Lock Nut - Blade Price: $1.99 |
| 13 |
530091596 |
Cap - Nut - Blade Price: $4.99 |
| 14 |
530093982 |
Drive Shaft Pad Price: $3.33 |
| 15 |
530091426 |
Tie Strap Price: $0.99 |
| 16 |
530015328 |
Lockwasher - 10 Price: $1.99 |
| 17 |
530001642 |
Lockwasher - 10 Price: $1.99 |
