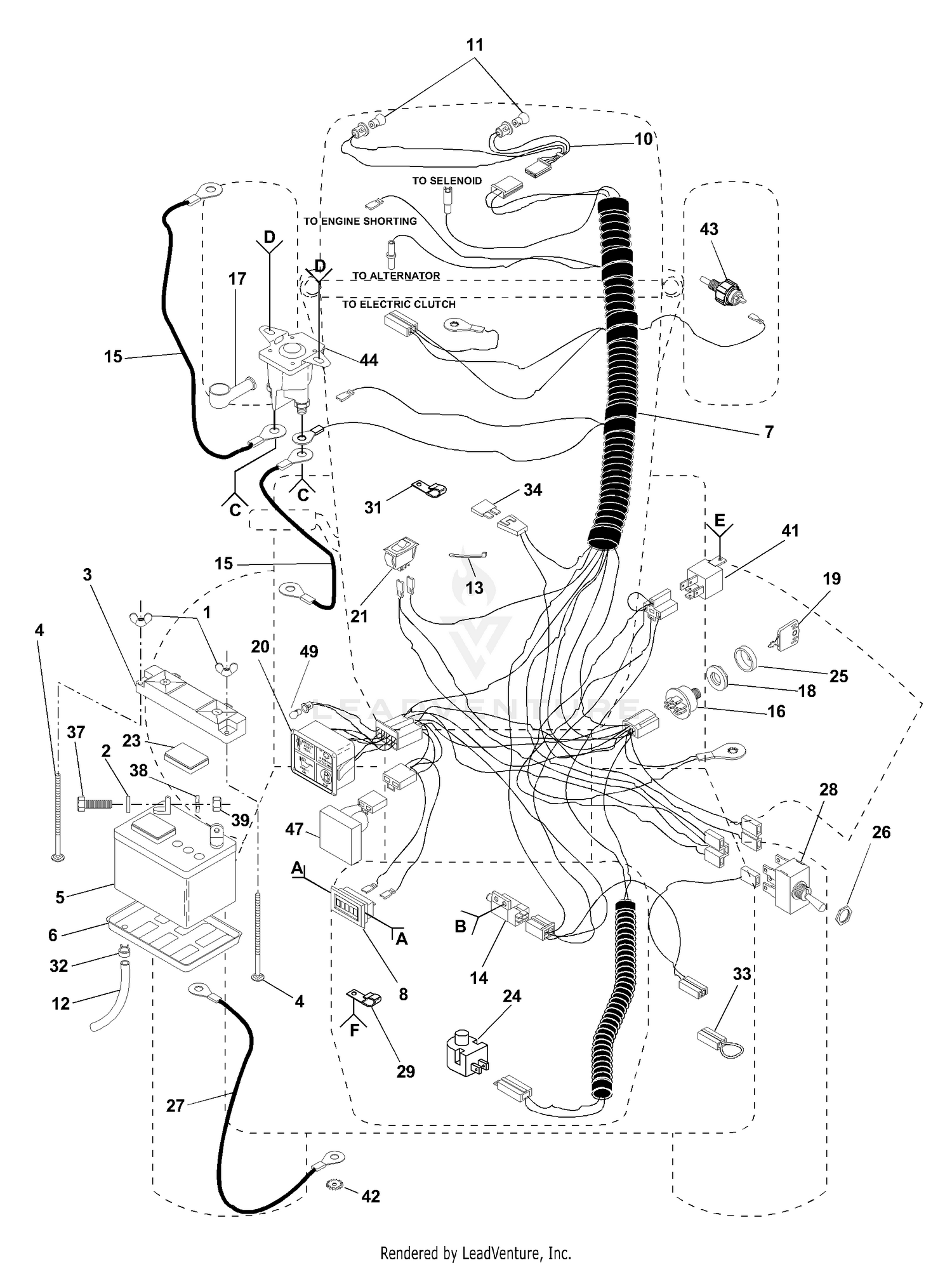

| Ref | Part Number | Description |
|---|
| 1 |
115-5304 |
CAP-FUEL This part replaces 93-3101. Price: $26.87 |
| 1 |
532146525 |
NUT.WING.LCK.NYL.NOTCH.1/4-20 This part replaces 532123198. Price: $3.99 |
| 2 |
596582301 |
Washers This part replaces 819091016. Price: $2.99 |
| 2 |
92-8958 |
DISCONTINUED Price: Call Us |
| 3 |
2412-93 |
CLAMP-R Price: $1.02 |
| 3 |
532150109 |
BATTERY HOLDDOWN FRONT MOUNT This part replaces 532102476. Price: $4.99 |
| 4 |
32144-11 |
SCREW-THD ROLL, HWH Price: $6.99 |
| 4 |
872240460 |
BOLT Price: $4.99 |
| 5 |
237-143 |
O-RING Price: $1.34 |
| 5 |
532123899 |
BATTERY.DRY.30.AMP This part replaces 532121537. Price: $149.99 |
| 6 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 6 |
532007603 |
TRAY.BATTERY This part replaces 532124886. Price: $5.99 |
| 7 |
32103-12 |
NUT-WING Price: $1.15 |
| 8 |
100-6434 |
ROD-HOLD DOWN, BATTERY This part replaces 72-4790. Price: $10.10 |
| 8 |
532169642 |
KIT.HOURMETER.SNAP-IN This part replaces 532110940. Price: $109.99 |
| 9 |
104-8162 |
BATTERY-DRY This part replaces 92-1678. Price: $114.99 |
| 9 |
817011008 |
Screw #10-24 x 1/2 Price: $2.38 |
| 10 |
3217-5 |
NUT-HEX Price: $0.25 |
| 10 |
532110859 |
HARNESS T Price: $17.84 |
| 11 |
321-3 |
SCREW-HH Price: $0.28 |
| 11 |
532004152 |
LIGHTBULB This part replaces 532124893. Price: $3.99 |
| 12 |
100-6435 |
POST-BATTERY This part replaces 56-7720. Price: $15.91 |
| 12 |
532007697 |
PLASTIC TUBE This part replaces 532100541. Price: $6.23 |
| 13 |
109-0282 |
HOSE-FUEL This part replaces 21-2480. Price: $7.39 |
| 13 |
532007192 |
WIRE TIE This part replaces 532124756. Price: $7.99 |
| 14 |
2412-98 |
CLAMP-HOSE Price: $1.39 |
| 14 |
539101080 |
SWITCH, INTERLOCK This part replaces 532109553. Price: $14.99 |
| 15 |
532004799 |
BATTERY CABLE This part replaces 532124770. Price: $8.99 |
| 15 |
83-1390 |
VALVE-SHUT-OFF, FUEL Price: $55.01 |
| 16 |
2412-36 |
CLAMP-HOSE Price: $1.28 |
| 16 |
532158913 |
KIT.SWITCH.IGNITION This part replaces 532102972. Price: $39.99 |
| 17 |
532154336 |
COVER.TERMINAL.RED This part replaces 532124783. Price: $4.99 |
| 17 |
85-9140 |
DISCONTINUED Price: Call Us |
| 18 |
323-5 |
SCREW-HH Price: $0.41 |
| 18 |
532124211 |
NUT IGNITION This part replaces 532109788. Price: $4.99 |
| 19 |
532122147 |
KEY.MOLDED.GENERIC Price: $5.99 |
| 19 |
63-8410 |
WASHER Price: $1.76 |
| 20 |
240-11 |
BUSHING-FLANGE Price: $5.32 |
| 20 |
532124524 |
LIGHT PACKAGE NLA Price: $60.65 |
| 21 |
532110712 |
SWITCH LT Price: $7.99 |
| 21 |
85-9010 |
BOOT-STEERING Price: $130.84 |
| 22 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873680400. Price: $3.99 |
| 22 |
85-8930 |
RETAINER-BOOT Price: $25.86 |
| 23 |
2412-109 |
CLIP-J Price: $3.82 |
| 23 |
532121264 |
CAP BATTERY NLA Price: $10.91 |
| 24 |
532421062 |
SWITCH.SNAPMOUNT.NC This part replaces 532121305. Price: $12.99 |
| 24 |
94-2690 |
FILTER-FUEL Price: $4.69 |
| 25 |
110-4895 |
HOSE-FUEL This part replaces 47-2964. Price: $15.99 |
| 25 |
584446901 |
KIT.IGN.BOOT/NUT This part replaces 532109787. Price: $5.99 |
| 26 |
532004022 |
HEX NUT T (1 2) This part replaces 532124932. Price: $2.99 |
| 26 |
93-7276 |
DECAL-DANGER Price: $15.13 |
| 27 |
532004207 |
CABLE T This part replaces 532124773. Price: $4.99 |
| 28 |
532126018 |
SWITCH,PTO Price: $17.96 |
| 29 |
532124995 |
CLIP T NLA Price: $2.38 |
| 30 |
817021008 |
SCREW Price: $3.99 |
| 31 |
532002751 |
CLIP T This part replaces 532124996. Price: $2.42 |
| 32 |
532109596 |
HOSE CLAMP T Price: $3.99 |
| 33 |
532102501 |
LOOP-WIRE YTV Price: $9.49 |
| 34 |
532108824 |
FUSE HYT Price: $4.99 |
| 35 |
596437001 |
Screws This part replaces 874780408. Price: $2.99 |
| 36 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 37 |
874760412 |
BOLT.HEX.1/4.X.3/4.DICHROMATE Price: $3.99 |
| 38 |
596029801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810040400. Price: $2.99 |
| 39 |
532050675 |
NUT.HEX..25-20.UNC This part replaces 873220400. Price: $2.99 |
| 40 |
811050400 |
Washer, Lock, External Tooth 1/4 Price: $5.99 |
| 41 |
532109748 |
RELAY.ASSY.T Price: $19.99 |
| 42 |
596238701 |
Washers This part replaces 811050600. Price: $3.99 |
| 43 |
532126825 |
SWITCH OIL SENSOR Price: $16.99 |
| 44 |
532146154 |
KIT SOLENOID .95 This part replaces 532109081. Price: $19.99 |
| 45 |
596029801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810090400. Price: $2.99 |
| 46 |
532050675 |
NUT.HEX..25-20.UNC This part replaces 873350400. Price: $2.99 |
| 47 |
532127385 |
SENSOR LOW VOLTAGE Price: $82.99 |
| 48 |
596437001 |
Screws This part replaces 817190408. Price: $2.99 |
| 49 |
110143X |
Bulb, Light Package Price: Call Us |
| 532101539 |
SHEET |
INSTR LT Price: $2.38 532101539 |
| 532101572 |
INSTRUCTION |
SHEET Price: $1.92 532101572 |
| 532123999 |
Manual, |
Operator's (English) Price: Call Us 532123999 |
| 532124000 |
Manual, |
Operator's (French) Price: Call Us 532124000 |
